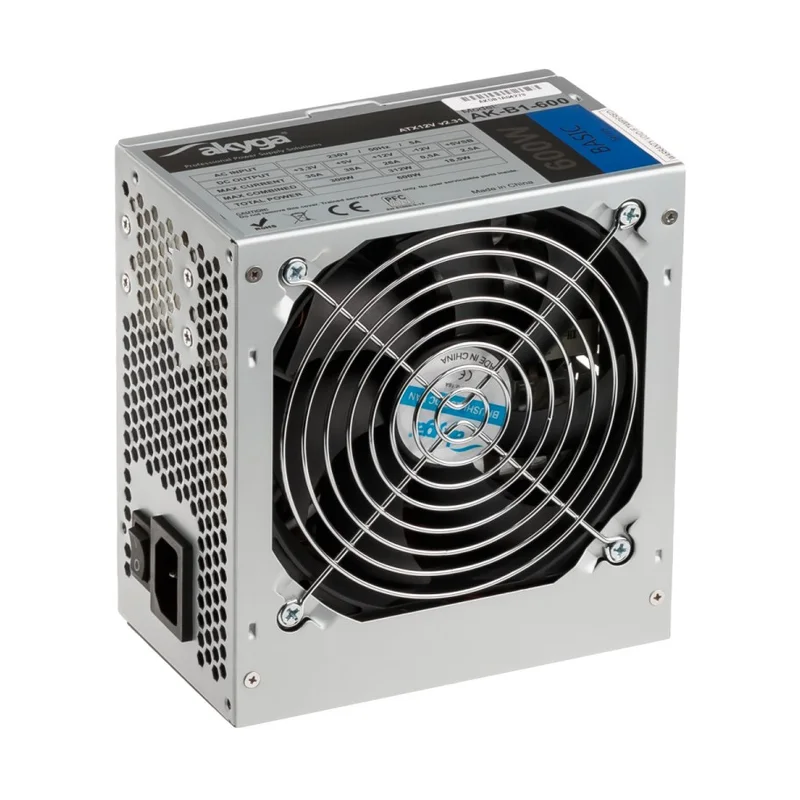

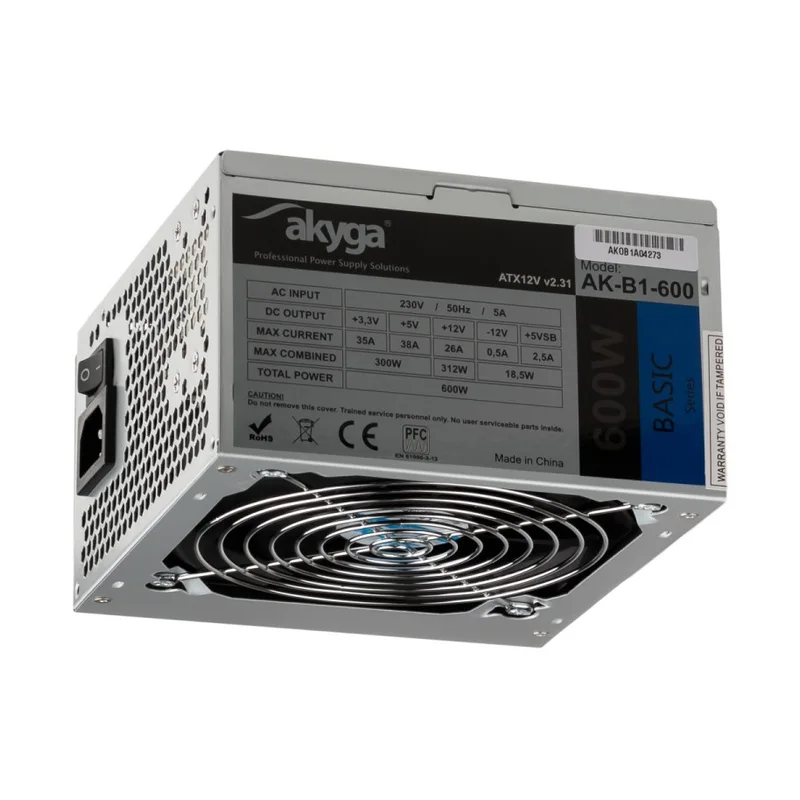

Akyga AK-B1-600 power supply unit 600 W 20+4 pin ATX ATX Grey
Technical specifications
| Certification | REACH, CE, RoHS |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Number of SATA power connectors | 4 |
| Operating temperature (T-T) | 5 – 50 °C |
| Input current | 5 A |
| AC input voltage | 230 V |
| Package depth | 220 mm |
| Depth | 140 mm |
| Total power | 600 W |
| Efficiency | 70% |
| Power protection features | Over power |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| PCI Express power connectors (6+2 pin) | 1 |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Package width | 160 mm |
| Mean time between failures (MTBF) | 100000 h |
| Max output current (+5V) | 38 A |
| Sustainability certificates | RoHS |
| Package height | 95 mm |
| Package type | Box |
| Max output current (+12V) | 36 A |
| Power Factor Correction (PFC) type | Passive |
| Package weight | 1.19 kg |
| Combined power (+3.3V) | 300 W |
| EPS power connector (8-pin) | No |
| Height | 87 mm |
| Product colour | Grey |
| Power supply unit (PSU) form factor | ATX |
| Combined power (+12V) | 312 W |
| Weight | 1.12 kg |
| Max output current (+5Vsb) | 2.5 A |
| Purpose | PC |
| ATX version | 2.31 |
| Number of fans | 1 fan(s) |
| Combined power (+5Vsb) | 18.5 W |
| Motherboard power connector | 20+4 pin ATX |
| Combined power (-12V) | 18.5 W |
| Fan diameter | 12 cm |
| Width | 150 mm |
| Combined power (+5V) | 300 W |
| Max output current (+3.3V) | 35 A |
| AC input frequency | 50 Hz |
| Max output current (-12V) | 0.5 A |
