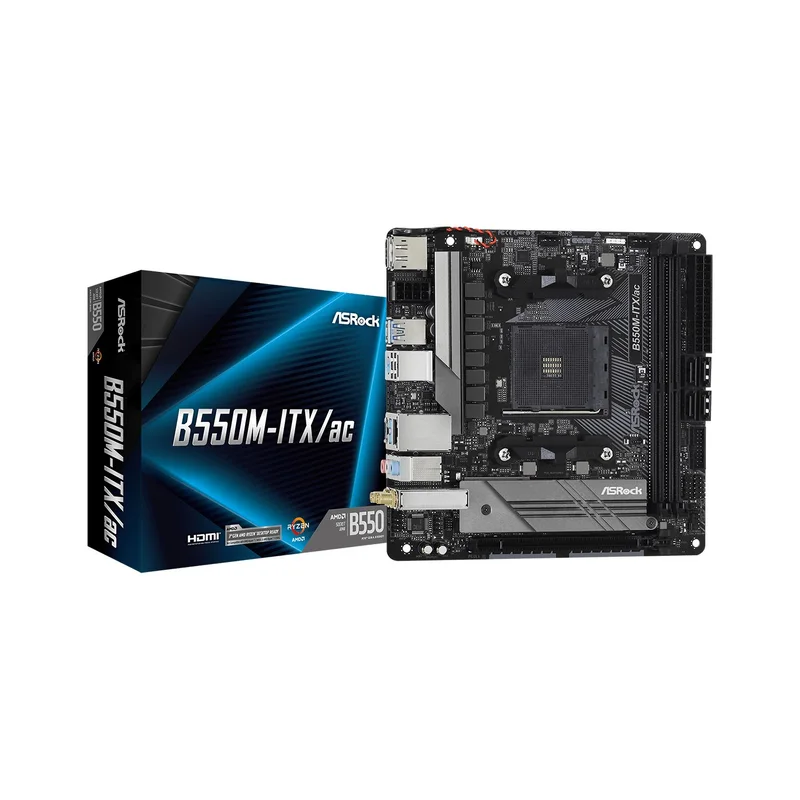

Asrock B550M-ITX/ac Socket AM4 mini ITX AMD B550
Technical specifications
| Motherboard chipset family | AMD |
|---|---|
| Wi-Fi standards | 802.11b |
| DisplayPorts quantity | 1 |
| Audio chip | Realtek ALC887 |
| Motherboard form factor | mini ITX |
| Wi-Fi standards | 802.11g |
| CPU fan connector | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Supported memory clock speeds | 2400 |
| Motherboard chipset | AMD B550 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Supported memory types | DDR4-SDRAM |
| Supported memory clock speeds | 4333 |
| Supported memory clock speeds | 4600 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 4266 |
| Supported memory clock speeds | 3800 |
| Supported memory clock speeds | 4466 MHz |
| Supported memory clock speeds | 3866 |
| Wi-Fi standards | 802.11a |
| Memory slots type | DIMM |
| Ethernet LAN | Yes |
| Depth | 170 mm |
| On-board graphics card | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Supported memory clock speeds | 4133 |
| Supported memory clock speeds | 4000 |
| Supported memory clock speeds | 3466 |
| HDCP | Yes |
| Supported memory clock speeds | 4533 |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Width | 170 mm |
| RGB LED pin header | Yes |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3600 |
| Front panel audio connector | Yes |
| Supported memory clock speeds | 2133 |
| Supported memory clock speeds | 4200 |
| Supported storage drive interfaces | M.2, Serial ATA III |
| DisplayPort version | 1.4 |
| HDMI ports quantity | 1 |
| LAN controller | Realtek RTL8111H |
| Graphics card family | AMD |
| Number of SATA III connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 7 |
| Bluetooth | Yes |
| DirectX version | 12.0 |
| Compatible processor series | 3rd Generation AMD Ryzen 5 |
| Processor manufacturer | AMD |
| Number of memory slots | 2 |
| Wake-on-LAN ready | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Drivers included | Yes |
| Bluetooth version | 4.2 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Wi-Fi | Yes |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
| Supported memory clock speeds | 2667 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Processor socket | Socket AM4 |
| BIOS type | UEFI AMI |
| Maximum number of SMP processors | 1 |
| PS/2 ports quantity | 1 |
| Graphics card | Radeon Vega |
| USB 2.0 connectors | 2 |
| Audio output channels | 7.1 channels |
| USB 2.0 ports quantity | 2 |
