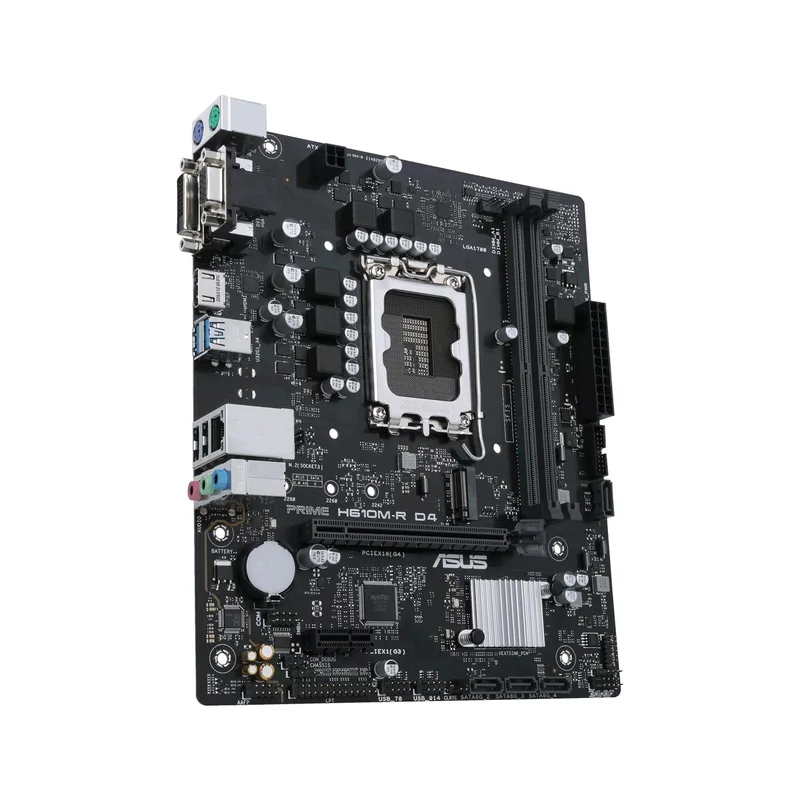

ASUS PRIME H610M-R D4 Intel H610 LGA 1700 micro ATX
Technical specifications
| Motherboard chipset | Intel H610 |
|---|---|
| Wake-on-LAN ready | Yes |
| Supported storage drive types | HDD & SSD |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3000 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133 |
| Unbuffered memory | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Core™ i3 |
| Clear CMOS jumper | Yes |
| DVI-D ports quantity | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Ethernet LAN | Yes |
| Windows operating systems supported | Windows 10 x64 |
| PS/2 ports quantity | 2 |
| Memory channels | Dual-channel |
| Height | 51 mm |
| Windows operating systems supported | Windows 11 x64 |
| Front panel audio connector | Yes |
| Cables included | SATA |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Number of storage drives supported | 5 |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Celeron® |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Number of SATA III connectors | 4 |
| ATX Power connector (24-pin) | Yes |
| Depth | 193 mm |
| Processor manufacturer | Intel |
| Number of M.2 (M) slots | 1 |
| Chassis intrusion connector | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| VGA (D-Sub) ports quantity | 1 |
| Harmonized System (HS) code | 84733020 |
| Number of COM connectors | 1 |
| Drivers included | Yes |
| Supported processor sockets | LGA 1700 |
| CPU fan connector | Yes |
| Weight | 842 g |
| Motherboard form factor | micro ATX |
| 12V power connector | Yes |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Motherboard chipset family | Intel |
| TPM connector | Yes |
| ECC сompatibility | Non-ECC |
| Wi-Fi | No |
| Maximum resolution | 3840 x 2160 pixels |
| Supported memory types | DDR4-SDRAM |
| Width | 226 mm |
| Ethernet interface type | Gigabit Ethernet |
| Number of chassis fan connectors | 1 |
| Headphone outputs | 3 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| Compatible processor series | Intel Pentium G |
| Memory slots type | DIMM |
| Audio output channels | 7.1 channels |
| Audio connector | Yes |
| BIOS type | UEFI AMI |
| Top Wi-Fi standard | Not available |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| Number of memory slots | 2 |
| USB 2.0 connectors | 2 |
| Processor socket | LGA 1700 |
| Parallel processing technology support | Not supported |
