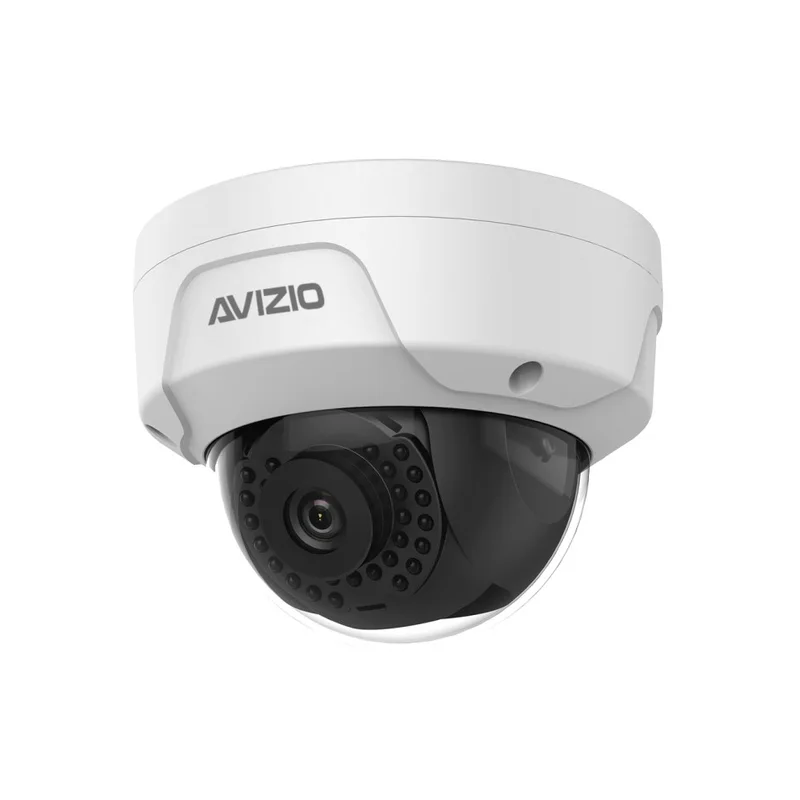

AVIZIO AV-IPMK20S security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Technical specifications
| Video compression formats | M-JPEG |
|---|---|
| DC output voltage | 12 |
| Maximum aperture number | 1.2 |
| Video compression formats | H.264+ |
| Video compression formats | H.265+ |
| Camera tilt control | Yes |
| Housing material | Plastic |
| Connectivity technology | Wired |
| IK code | IK10 |
| Ethernet LAN | Yes |
| Progressive scan | Yes |
| Web-based management | Yes |
| Bluetooth | No |
| Video compression formats | H.264 |
| DC output current | 0.4 A |
| Supported graphics resolutions | 640 x 480 (VGA) |
| Supported network protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
| Sensor type | CMOS |
| Number of lenses | 1 |
| Number of sensors | 1 |
| Housing material | Metal |
| Maximum resolution | 1920 x 1080 pixels |
| Weatherproof | Yes |
| Camera pan control | Yes |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.3af |
| Day/night mode | Yes |
| Bit rate | 32 Kbps – 8 Mbps |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Total megapixels | 2 MP |
| Gain control type | Auto |
| Tilt angle range | 0 – 70° |
| Mirror | Yes |
| Video streaming | Yes |
| Camera shutter speed | 1/3 – 1/100000 s |
| Image quality adjustment | Sharpness |
| Anti-flicker | Yes |
| Remote viewing | Yes |
| Image quality adjustment | Contrast |
| Type | IP security camera |
| Night vision | Yes |
| Supported graphics resolutions | 704 x 576 |
| Supported graphics resolutions | 1280 x 960 |
| Supported graphics resolutions | 352 x 240 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| LED type | IR |
| Web browser | Yes |
| Height | 82.4 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | H.265 |
| Supported graphics resolutions | 704 x 480 |
| Infrared (IR) cut-off filter | Yes |
| Wi-Fi | No |
| Number of cameras | 1 |
| Power source type | DC, PoE |
| Placement supported | Indoor & outdoor |
| Noise reduction | Yes |
| Operating relative humidity (H-H) | 0 – 95% |
| Diameter | 11.1 cm |
| Supported graphics resolutions | 352 x 288 |
| International Protection (IP) code | IP67 |
| Image quality adjustment | Saturation |
| Operating temperature (T-T) | -30 – 50 °C |
| Protection features | Vandal proof |
| Video motion detection | Yes |
| Privacy masking | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Active tampering alarm | Yes |
| Password protection | Yes |
| Angle of rotation | 355° |
| Product colour | White |
| Region of Interest (ROI) encoding | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Quality of Service (QoS) support | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Noise reduction technology | 3D noise reduction |
| Mounting type | Ceiling/wall |
| Night vision distance | 30 m |
| Form factor | Dome |
| Image quality adjustment | Brightness |
| Minimum illumination | 0.01 lx |
| Power consumption (Power over Ethernet (PoE)) | 7 W |
| Number of users | 32 user(s) |
| Streaming method | Multicast |
| Built-in HDD | No |
| Frame rate | 30 fps |
| Fixed focal length | 2.8 mm |
| Digital watermark | Yes |
| Weight | 410 g |
| Infra-red wavelength | 850 nm |
| Power consumption (max) | 5 W |
| Lens viewing angle, vertical | 62° |
| Lens viewing angle, horizontal | 114° |
| Lens viewing angle, diagonal | 135° |
