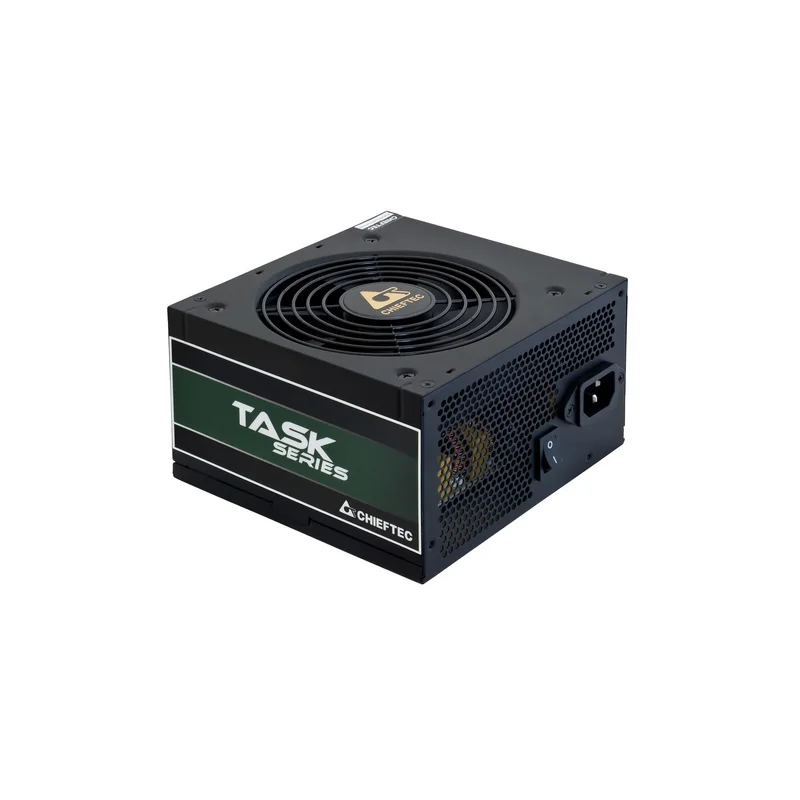

Chieftec Task TPS-600S power supply unit 600 W 20+4 pin ATX ATX Black
Technical specifications
| Certification | ErP, CE, CB, EAC, TUV |
|---|---|
| Combined power (+12V) | 552 W |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 2 |
| EPS cable length | 65 cm |
| Total power | 600 W |
| Combined power (-12V) | 3.6 W |
| EPS power connector (4+4 pin) | Yes |
| Motherboard power connector | 20+4 pin ATX |
| Fan diameter | 12 cm |
| Weight | 1.67 kg |
| SATA power cable length | 150 |
| Max output current (+3.3V) | 19 A |
| Harmonized System (HS) code | 84733020 |
| Width | 150 mm |
| Height | 87 mm |
| Power supply unit (PSU) form factor | ATX |
| Product colour | Black |
| Max output current (+5Vsb) | 2.5 A |
| Power Factor Correction (PFC) type | Active |
| Package weight | 2.08 kg |
| Max output current (+12V) | 46 A |
| SATA power cable length | 500 |
| Purpose | PC |
| AC input frequency | 47 – 63 Hz |
| Supported motherboard form factors | ATX |
| Combined power (+5Vsb) | 12.5 W |
| AC input voltage | 100 – 240 V |
| Input current | 9 A |
| 80 PLUS certification | 80 PLUS Bronze |
| Depth | 140 mm |
| Power factor | 0.9 |
| ATX power connector (20+4 pin) | Yes |
| Number of SATA power connectors | 5 |
| Cabling type | Non-Modular |
| Number of fans | 1 fan(s) |
| Power protection features | Overheating |
| Power protection features | Overload |
| Power protection features | Under voltage |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Motherboard power cable length | 65 cm |
| Max output current (+5V) | 17 A |
| Package type | Box |
| Peripheral (Molex) power cable length | 150 |
| Peripheral (Molex) power cable length | 500 |
| Max output current (-12V) | 0.3 A |
| PCI Express power cable length | 50 cm |
| Compliance certificates | RoHS |
