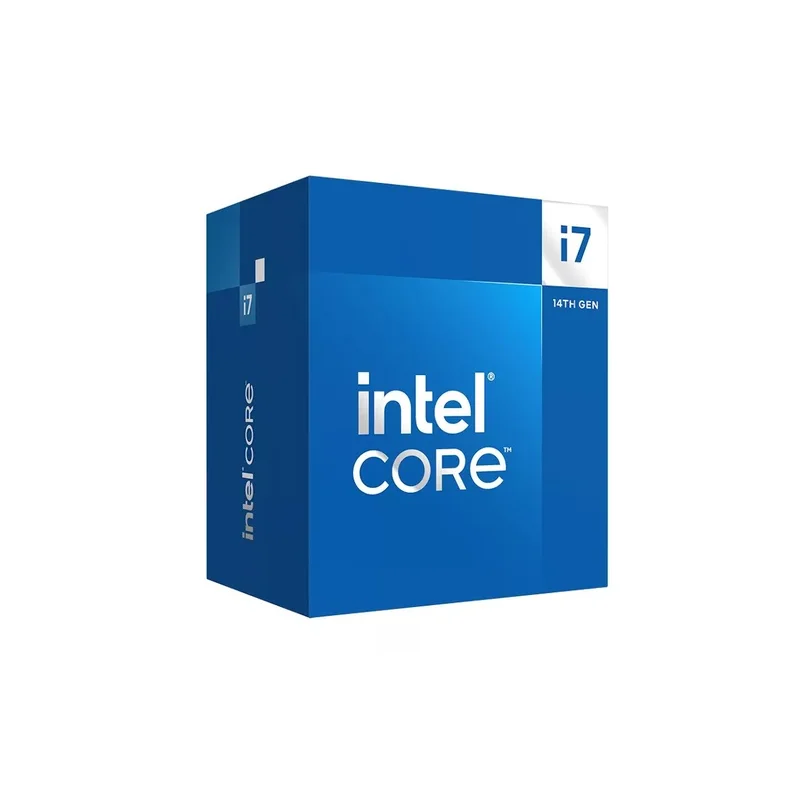

Intel Core i7-14700 processor 33 MB Smart Cache Box
Technical specifications
| Enhanced Intel SpeedStep Technology | Yes |
|---|---|
| Processor ARK ID | 236781 |
| On-board graphics card OpenGL version | 4.5 |
| Market segment | Desktop |
| Maximum internal memory | 192 GB |
| Intel® Thread Director | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Intel® Standard Manageability (ISM) | Yes |
| On-board graphics card | Yes |
| On-board graphics card dynamic frequency (max) | 1600 MHz |
| Box | Yes |
| On-board graphics card base frequency | 300 MHz |
| Number of displays supported (on-board graphics) | 4 |
| Intel® Boot Guard | Yes |
| On-board graphics card model | Intel UHD Graphics 770 |
| Processor cores | 20 |
| On-board graphics card outputs supported | Embedded DisplayPort (eDP) 1.4b |
| Intel® Control-flow Enforcement Technology (CET) | Yes |
| Idle States | Yes |
| Memory bandwidth (max) | 89.6 GB/s |
| Launch date | Q1'24 |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-SDRAM |
| CPU configuration (max) | 1 |
| Stepping | B0 |
| Supported instruction sets | SSE4.2 |
| Supported instruction sets | SSE4.1 |
| Processor threads | 28 |
| Status | Launched |
| Processor operating modes | 64-bit |
| Discrete graphics card model | Not available |
| Mode-based Execute Control (MBE) | Yes |
| Tjunction | 100 °C |
| Multi-Format Codec Engines | 2 |
| Direct Media Interface (DMI) Revision | 4.0 |
| On-board graphics card maximum resolution (DisplayPort) | 7680 x 4320 pixels |
| On-board graphics card maximum resolution (HDMI) | 4096 x 2160 pixels |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Memory channels | Dual-channel |
| On-board graphics card outputs supported | HDMI 2.1 |
| Intel® Deep Learning Boost (Intel® DL Boost) on CPU | Yes |
| Graphics output | eDP 1.4b, DP 1.4a, HDMI 2.1 |
| Performance-core boost frequency | 5.3 GHz |
| On-board graphics card outputs supported | DisplayPort 1.4a |
| Number of execution units | 32 |
| On-board graphics card refresh rate at maximum resolution (eDP – Integrated Flat Panel) | 120 Hz |
| Execute Disable Bit | Yes |
| On-board graphics card DirectX version | 12.0 |
| Intel Turbo Boost Max Technology 3.0 | Yes |
| Intel® Secure Key | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Scalability | 1S |
| Processor socket | LGA 1700 |
| On-board graphics card ID | 0xA780 |
| PCI Express configurations | 1×16+1×4 |
| PCI Express configurations | 2×8+1×4 |
| Intel® OS Guard | Yes |
| Discrete graphics card | No |
| Thermal Monitoring Technologies | Yes |
| Embedded options available | Yes |
| Processor codename | Raptor Lake |
| Harmonized System (HS) code | 8542310001 |
| Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Processor model | i7-14700 |
| PCI Express slots version | 4.0 |
| On-board graphics card refresh rate at maximum resolution (HDMI) | 60 Hz |
| Intel® Speed Shift Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| PCI Express slots version | 5.0 |
| Processor cache type | Smart Cache |
| Memory bandwidth supported by processor (max) | 89.6 GB/s |
| Maximum turbo power | 219 W |
| Maximum number of PCI Express lanes | 20 |
| Efficient cores | 12 |
| OpenCL version | 3.0 |
| Processor family | Intel® Core™ i7 |
| Processor cache | 33 MB |
| Processor package size | 45 x 37.5 mm |
| On-board graphics card maximum resolution (eDP – Integrated Flat Panel) | 5120 x 3200 pixels |
| ECC | Yes |
| Memory types supported by processor | DDR5-SDRAM |
| Export Control Classification Number (ECCN) | 5A992C |
| Intel® Quick Sync Video Technology | Yes |
| Intel® Turbo Boost Max Technology 3.0 frequency | 5.4 GHz |
| Cooler included | Yes |
| Intel® Gaussian & Neural Accelerator (Intel® GNA) 3.0 | Yes |
| L2 cache | 28672 KB |
| Use conditions | PC/Client/Tablet |
| Use conditions | Workstation |
| Supported instruction sets | AVX 2.0 |
| Processor base power | 65 W |
| On-board graphics card refresh rate at maximum resolution (DisplayPort) | 60 Hz |
| Maximum number of DMI lanes | 8 |
| Warnings | Do not touch the processor pins to avoid electrostatic damage. |
| Intel 64 | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Performance-core base frequency | 2.1 GHz |
| Processor manufacturer | Intel |
| Performance cores | 8 |
| Commodity Classification Automated Tracking System (CCATS) | 740.17B1 |
