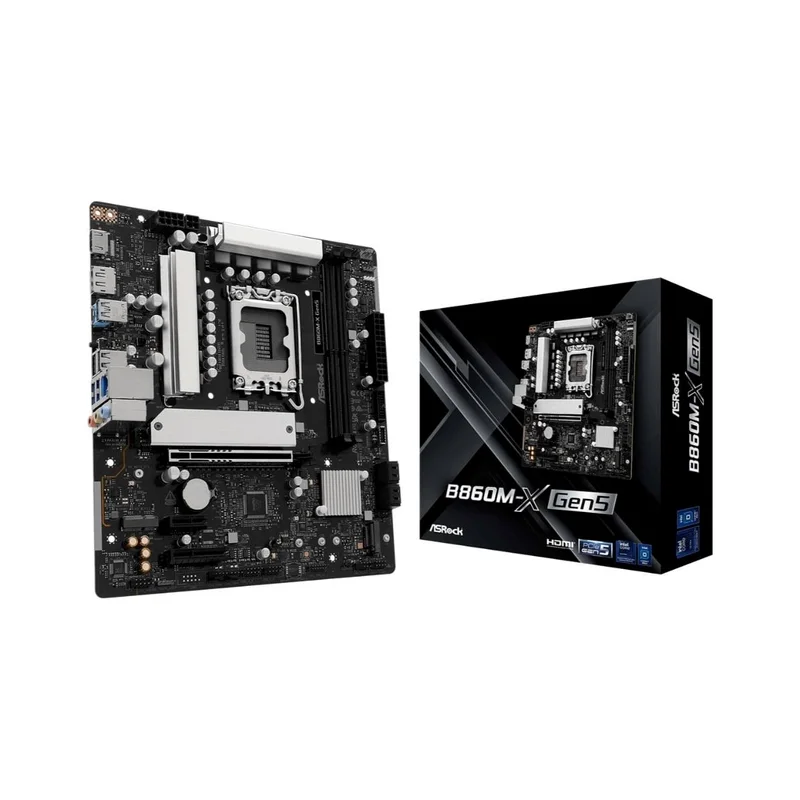

Motherboard Asrock B860M-X GEN5
Technical specifications
| BIOS flashback button | Yes |
|---|---|
| Number of USB 3.2 Gen 1 ports | 5 |
| Windows operating systems supported | Windows 11 x64 |
| Memory channels | Dual-channel |
| Motherboard chipset | Intel B860 |
| RAID levels | 10 |
| Ethernet LAN (RJ-45) ports | 1 |
| Processor manufacturer | Intel |
| RAID support | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC897 |
| TPM connector | Yes |
| Width | 244 mm |
| USB 2.0 connectors | 6 |
| Product colour | Black |
| Maximum internal memory | 128 GB |
| Motherboard chipset family | Intel |
| Number of SATA III connectors | 4 |
| RAID levels | 0 |
| Audio output channels | 7.1 channels |
| Cables included | SATA |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| BIOS type | UEFI AMI |
| LAN controller | Dragon RTL8125BG |
| Number of M.2 (M) slots | 2 |
| Wi-Fi | No |
| RAID levels | 1 |
| RAID levels | 5 |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Screws included | Yes |
| Number of M.2 (E) slots | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Supported memory types | DDR5 DIMM |
| Depth | 218 mm |
| Memory slots type | DIMM |
| Ethernet LAN | Yes |
| Number of memory slots | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| RGB LED pin header | Yes |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Supported memory clock speed (max) | 9066 MHz |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
