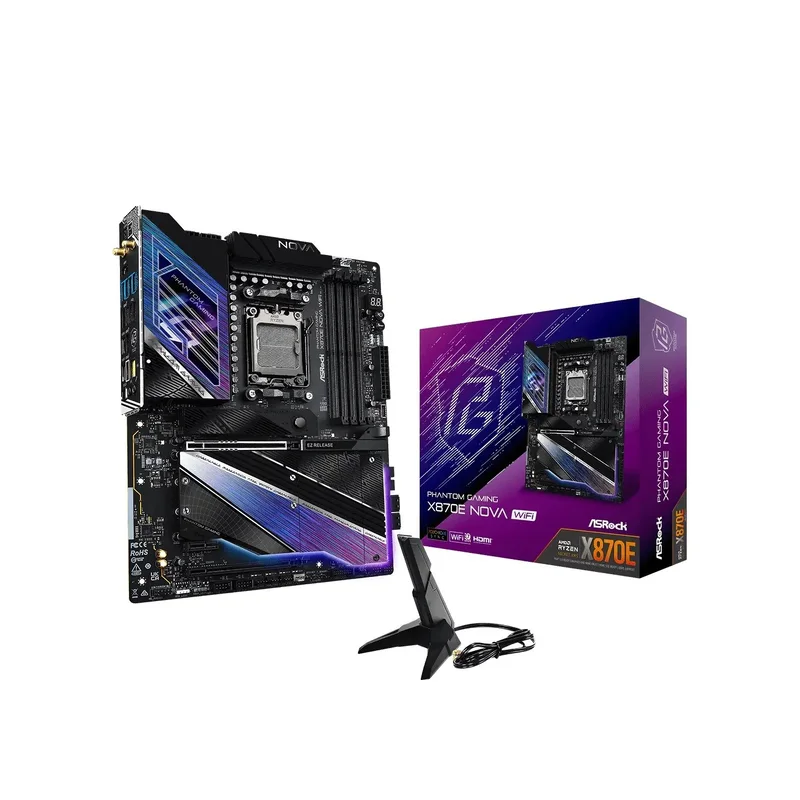

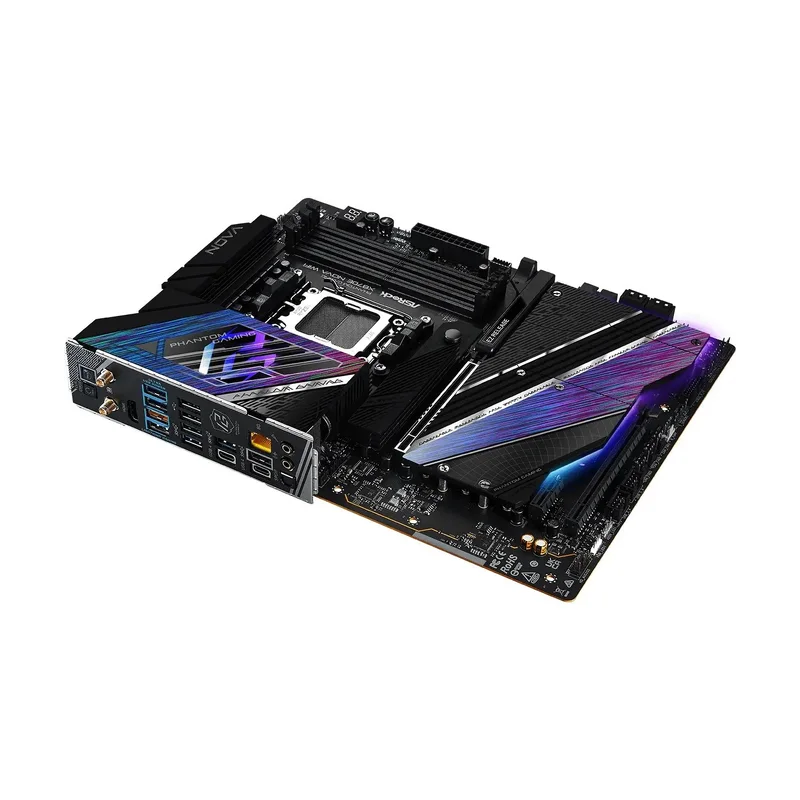

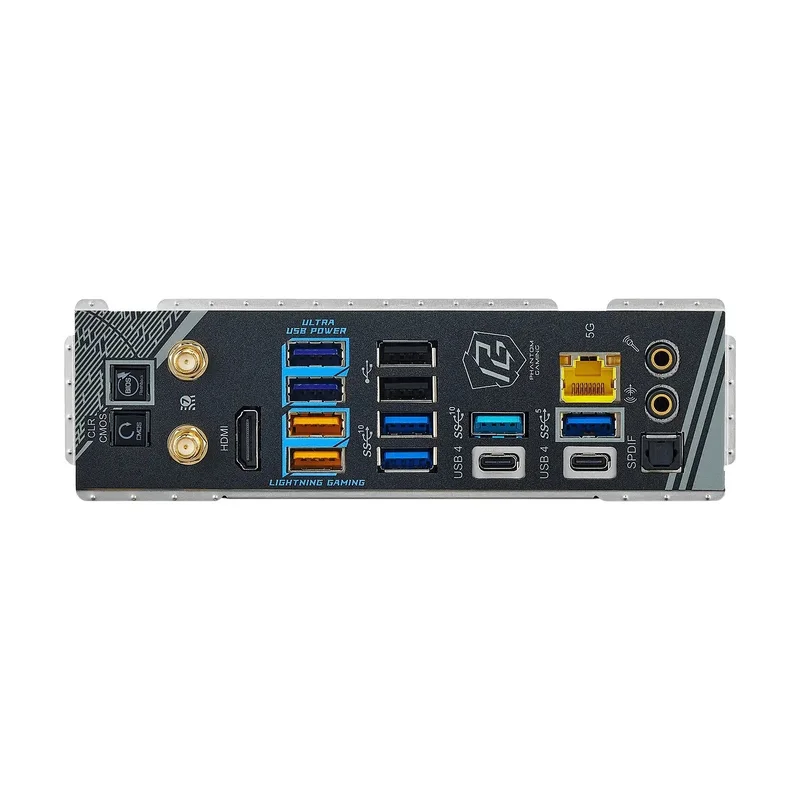

Motherboard – ASRock X870E Nova WiFi
Technical specifications
| Motherboard form factor | ATX |
|---|---|
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a |
| Width | 305 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| USB 2.0 connectors | 2 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| Unbuffered memory | Yes |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Depth | 244 mm |
| Number of SATA III connectors | 4 |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | 802.11b |
| RGB LED pin header | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Microphone in | Yes |
| Processor socket | Socket AM5 |
| Motherboard chipset family | AMD |
| Ethernet LAN (RJ-45) ports | 1 |
| CPU fan connector | Yes |
| HDMI ports quantity | 1 |
| Line-out | Yes |
| ATX Power connector (24-pin) | Yes |
| Maximum number of SMP processors | 1 |
| Bluetooth | Yes |
| Supported storage drive interfaces | Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4) |
| Processor manufacturer | AMD |
| Audio chip | Realtek ALC4082 |
| Clear CMOS button | Yes |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Compatible processor series | AMD Ryzen™ 9000 Series |
| LAN controller | Realtek RTL8126 |
| Operating system architecture | 64-bit |
| Bluetooth version | 5.4 |
| Wi-Fi | Yes |
| Motherboard chipset | AMD X870 |
| Ethernet interface type | 5 Gigabit Ethernet |
| Supported memory types | DDR5-SDRAM |
| USB 3.2 Gen 2×2 Type-C ports quantity | 2 |
| Compatible processor series | AMD Ryzen™ 8000 Series |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Memory slots type | DIMM |
| BIOS type | UEFI AMI |
| Maximum internal memory | 256 GB |
| S/PDIF out port | Yes |
| Number of memory slots | 4 |
| Audio output channels | 7.1 channels |
| Compatible processor series | AMD Ryzen™ 7000 Series |
| Windows operating systems supported | Windows 11 x64 |
| Wi-Fi antenna socket | Yes |
| Windows operating systems supported | Windows 10 x64 |
| Memory channels | Dual-channel |
| Supported memory clock speed (max) | 8200+ MHz |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel audio connector | Yes |
