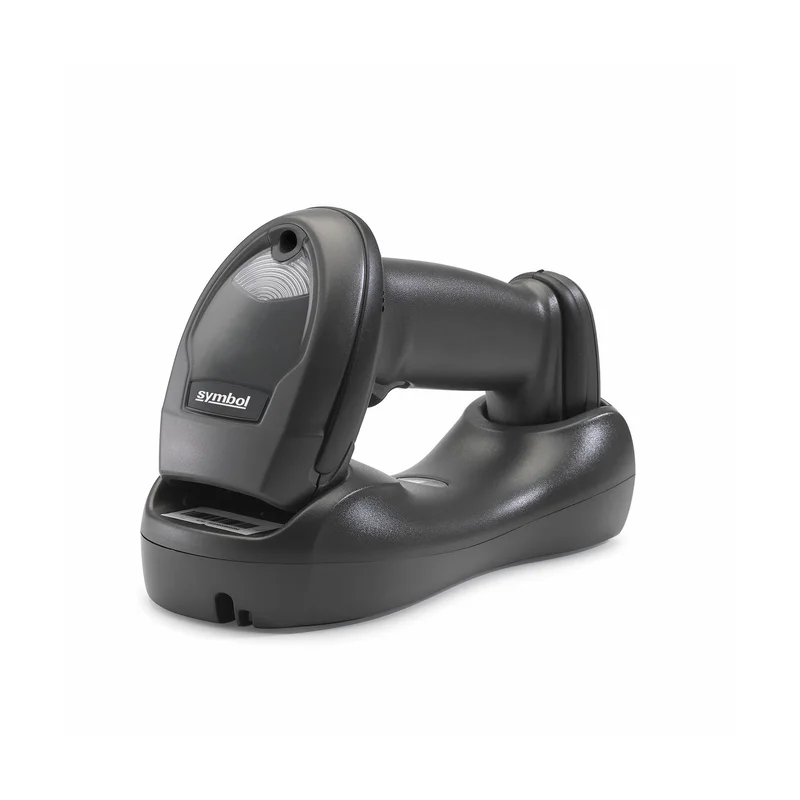

Motorola LI4278 Black
Technical specifications
| Decoding standards | UPC/EAN: UPC-A, UPC-E, UPC-E1, EAN-8/JAN 8, EAN-13/JAN 13, Bookland EAN, Bookland ISBN Format, UCC Coupon Extended Code, ISSN EAN Code 128 Including GS1-128, ISBT 128, ISBT Concatenation, Code 39 including Trioptic Code 39, Convert Code 39 to Code 32 (Italian Pharmacy Code), Code 39 Full ASCII Conversion Code 93 Code 11 Matrix 2 of 5 Interleaved 2 of 5 (ITF) Discrete 2 of 5 (DTF) Codabar (NW – 7) MSI Chinese 2 of 5 IATA Inverse 1D (except all GS1 DataBars) GS1 DataBar including GS1 DataBar-14, GS1 DataBar Limited, GS1 |
|---|---|
| Certification | EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 RoHS 2002/95/EEC |
| Light source | LED |
| Operating relative humidity (H-H) | 5 – 85% |
| Bluetooth | Yes |
| Battery technology | Lithium Polymer (LiPo) |
| Weight | 224 g |
| LED indicators | Power |
| LED indicators | Charging |
| Housing material | Plastic |
| Cables included | RS-232 |
| Standard interfaces | RS-232, RS-485, USB, Keyboard wedge |
| International Protection (IP) code | IP54 |
| Cable length | 1.8 m |
| Storage temperature (T-T) | -40 – 70 °C |
| Operating temperature (T-T) | 0 – 50 °C |
| Tilt angle range | 0 – 35° |
| Product colour | Black |
| Safety | C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, UL 60950- 1 LED Class 1 |
| Maximum scan width | 10 cm |
| Dimensions (WxDxH) | 70 x 186 x 98 mm |
| Maximum range | 6 m |
| Read rate (max) | 547 reads/s |
| Yaw reading angle | 0 – 65° |
| Shockproof | No |
| Pitch reading angle | 0 – 65° |
| Tilt reading angle | 0 – 45° |
| Wavelength | 612 nm |
| Harmonized System (HS) code | 84716070 |
| Light levels (direct sunlight) | 0 – 108 lx |
