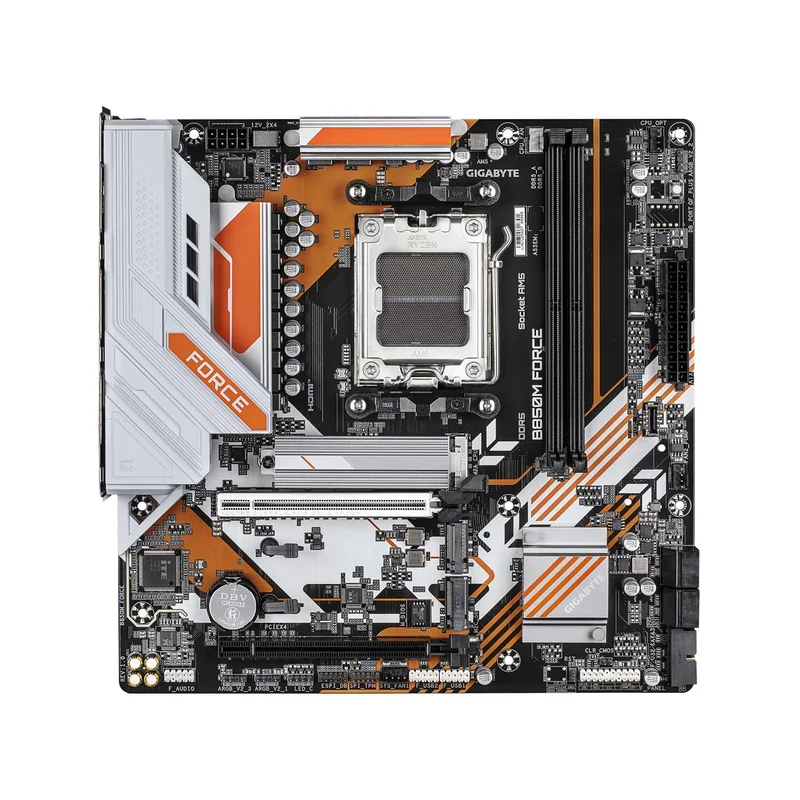

Gigabyte B850M FORCE motherboard
Technical specifications
| Bundled software | Norton® Internet Security (OEM version) |
|---|---|
| Height | 35 mm |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| Supported memory types | DDR5-SDRAM |
| PS/2 ports quantity | 1 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Memory slots type | DIMM |
| Width | 244 mm |
| Number of HDDs supported | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| RAID levels | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 9000 Series |
| ATX Power connector (24-pin) | Yes |
| HDMI ports quantity | 1 |
| RGB LED pin header | Yes |
| Windows operating systems supported | Windows 10 x64 |
| BIOS type | UEFI AMI |
| Number of M.2 (M) slots | 3 |
| RAID levels | 10 |
| Number of storage drives supported | 7 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| RAID levels | 0 |
| Number of memory slots | 2 |
| Compatible processor series | AMD Ryzen 8000 Series |
| DisplayPort version | 1.4 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Number of SATA III connectors | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| 12V power connector | Yes |
| Supported processor sockets | Socket AM5 |
| Number of chassis fan connectors | 2 |
| RAID support | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| TPM connector | Yes |
| Clear CMOS jumper | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Desktop Management Interface (DMI) version | 2.7 |
| Motherboard form factor | micro ATX |
| 2nd M.2 largest key size | 2280 |
| Front panel connector | Yes |
| Maximum internal memory per slot | 64 GB |
| Memory channels | Dual-channel |
| 1st M.2 largest key size | 2280 |
| CPU fan connector | Yes |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 11 x64 |
| Depth | 244 mm |
| HDMI version | 2.1 |
| Ethernet LAN | Yes |
| HDCP | Yes |
| 1st M.2 highest PCI Express generation | 5.0 |
| Power source type | ATX |
| Processor socket | Socket AM5 |
| 3rd M.2 largest key size | 2280 |
| ECC сompatibility | Non-ECC |
| Number of RGB LED pin headers | 4 |
| Number of CPU fan connectors | 2 |
| USB 2.0 connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Supported memory clock speeds | 6400 MHz |
| Supported memory clock speeds | 6200 |
| Supported memory clock speeds | 6666 |
| Supported memory clock speeds | 6600 |
| Supported memory clock speeds | 9200 MHz |
| Supported storage drive types | HDD & SSD |
| Supported memory clock speeds | 8600 MHz |
| Supported memory clock speeds | 6800 |
| Supported memory clock speeds | 5200 |
| Supported memory clock speeds | 8400 |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| Supported memory clock speeds | 5600 |
| Supported memory clock speeds | 7200 |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 7000 |
| Supported memory clock speeds | 8200 MHz |
| Supported memory clock speeds | 8800 MHz |
| Supported memory clock speeds | 4800 |
| Motherboard chipset | AMD B850 |
| Supported memory clock speeds | 8000 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 7600 |
| Supported memory clock speeds | 7800 |
| Audio output channels | 7.1 channels |
| Supported memory clock speeds | 6000 |
| Supported memory clock speeds | 9600 |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9600 MHz |
| PCI Express x16 (Gen 5.x) slots | 1 |
