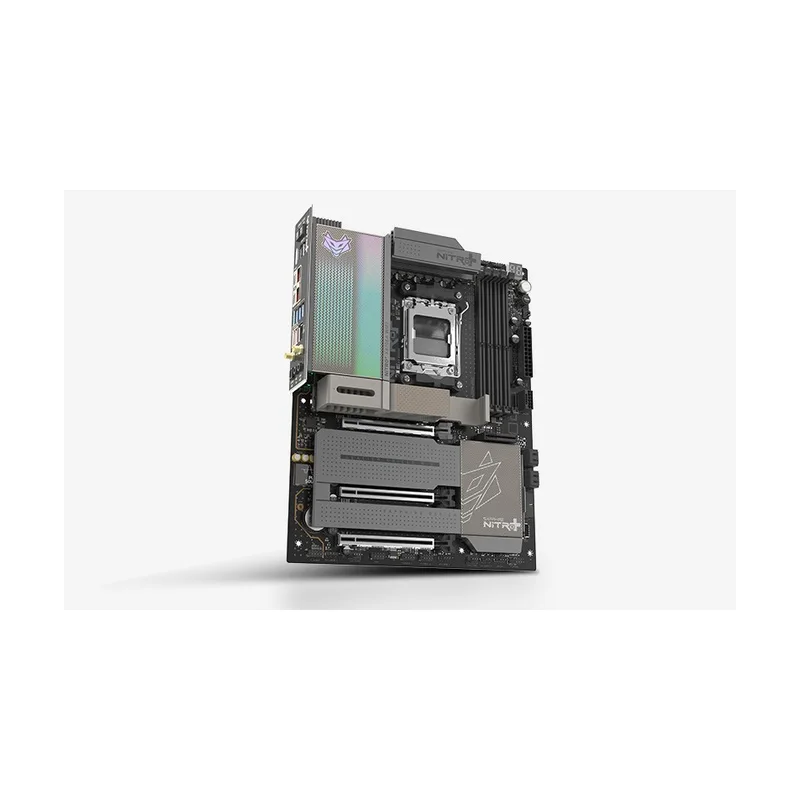

SAPPHIRE NITRO+ X870EA WIFI7 Motherboard
Technical specifications
| Certification | CE, FCC, RoHS, WEEE |
|---|---|
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| ATX Power connector (24-pin) | Yes |
| RAID support | Yes |
| RAID levels | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 4 |
| HDCP | No |
| Number of SATA III connectors | 4 |
| Ethernet LAN | Yes |
| Depth | 244 mm |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| LAN controller | Realtek RTL8126 |
| Maximum internal memory | 256 GB |
| Ethernet interface type | 5 Gigabit Ethernet |
| RAID levels | 10 |
| Front panel audio connector | Yes |
| Product colour | Black |
| Motherboard form factor | ATX |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Antenna included | Yes |
| Motherboard chipset family | AMD |
| RGB LED pin header | Yes |
| Motherboard chipset | AMD X870E |
| Memory slots type | DIMM |
| Supported memory types | DDR5 DIMM |
| Supported processor sockets | Socket AM5 |
| RAID levels | 0 |
| Wi-Fi | Yes |
| HDMI ports quantity | 1 |
| Number of memory slots | 4 |
| CPU fan connector | Yes |
| Width | 305 mm |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Windows operating systems supported | Windows 11 x64 |
| Microphone in | Yes |
| Processor socket | Socket AM5 |
| Headphone outputs | 2 |
