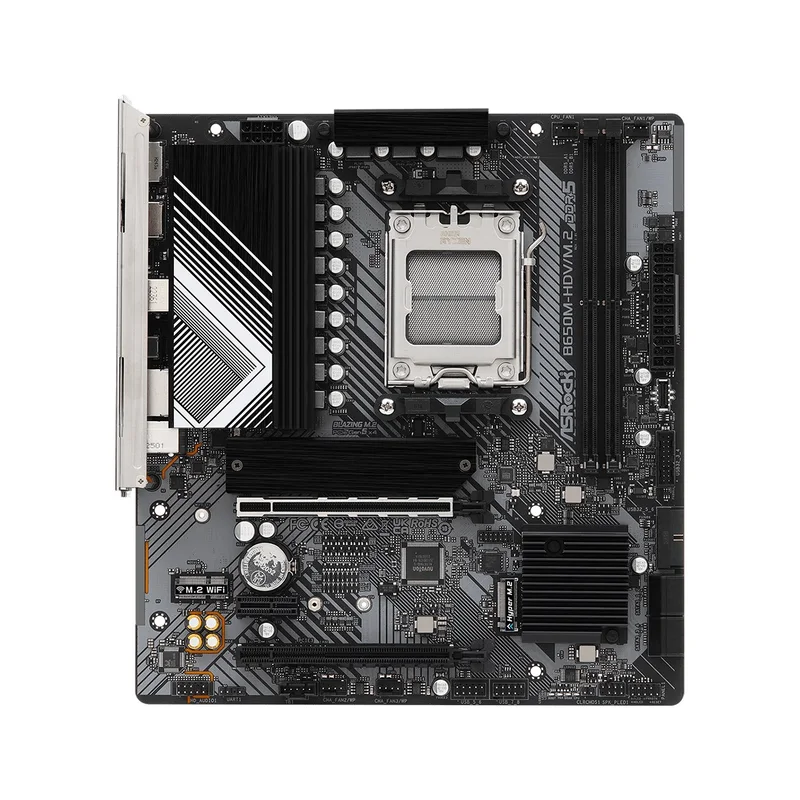

Asrock B650M-HDV/M.2 AMD B650 Socket AM5 micro ATX
Technical specifications
| ATX Power connector (24-pin) | Yes |
|---|---|
| Audio chip | Realtek ALC897 |
| Motherboard chipset family | AMD |
| BIOS type | EFI AMI |
| CPU fan connector | Yes |
| Processor manufacturer | AMD |
| DisplayPorts quantity | 1 |
| Motherboard form factor | micro ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Compatible processor series | AMD Ryzen™ 7 |
| Number of storage drives supported | 6 |
| Motherboard chipset | AMD B650 |
| RAID levels | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| EPS power connector (8-pin) | Yes |
| RAID levels | 10 |
| Front panel audio connector | Yes |
| Windows operating systems supported | Windows 11 x64 |
| RAID levels | 1 |
| Thunderbolt headers | 1 |
| Number of M.2 (M) slots | 2 |
| TPM connector | Yes |
| DisplayPort version | 1.4 |
| RAID support | Yes |
| Windows operating systems supported | Windows 10 x64 |
| Maximum internal memory | 64 GB |
| Number of SATA III connectors | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Audio output channels | 7.1 channels |
| Supported storage drive types | HDD & SSD |
| LAN controller | Realtek RTL8125-BG |
| Microphone in | Yes |
| Width | 244 mm |
| HDMI ports quantity | 1 |
| Supported storage drive interfaces | M.2, SATA III |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| Depth | 226 mm |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Ethernet LAN | Yes |
| Line-in | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Supported memory types | DDR5-SDRAM |
| Wi-Fi | No |
| Memory slots type | DIMM |
| Processor socket | Socket AM5 |
| Number of memory slots | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Warnings | Dispose of in accordance with local regulations for electronic waste. |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| Warnings | Avoid contact with liquids to prevent electronic damage. |
| PCI Express x1 (Gen 4.x) slots | 1 |
| ECC сompatibility | Non-ECC |
