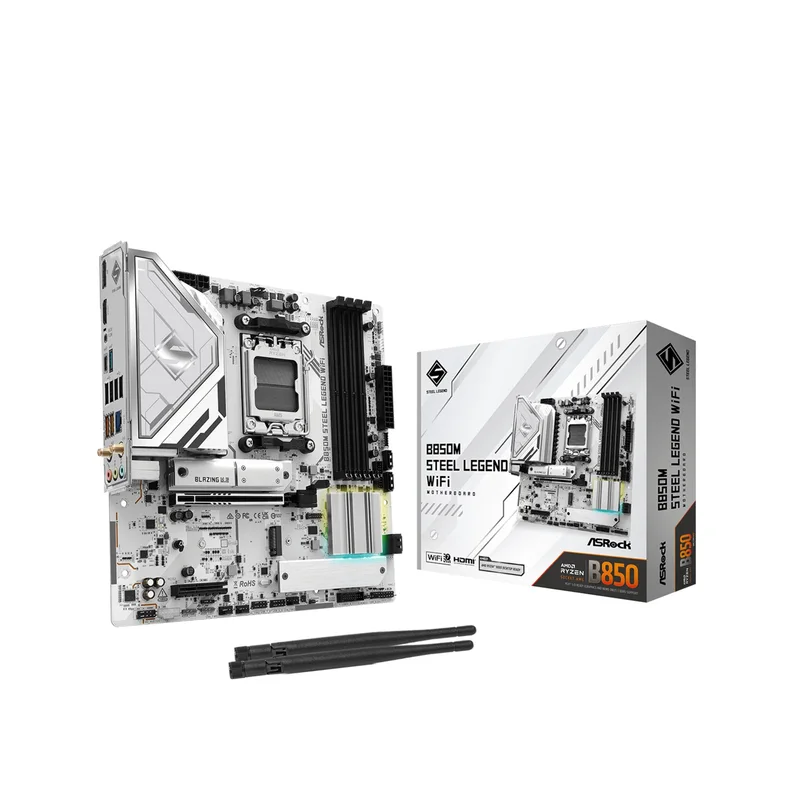

Asrock B850M Steel Legend WiFi AMD B850 Socket AM5 micro ATX
Technical specifications
| Certification | FCC, CE, ErP/EuP |
|---|---|
| RAID levels | 0 |
| RAID levels | 1 |
| Supported storage drive types | HDD & SSD |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Motherboard chipset family | AMD |
| RAID levels | 10 |
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC1220 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| TPM connector | Yes |
| CPU fan connector | Yes |
| BIOS type | UEFI AMI |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| DisplayPort version | 1.4 |
| Number of SATA III connectors | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB connector type | USB Type-C |
| ATX Power connector (24-pin) | Yes |
| USB connector type | USB Type-A |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Cables included | SATA |
| Audio output channels | 7.1 channels |
| Supported processor sockets | Socket AM5 |
| Number of chassis fan connectors | 3 |
| USB 2.0 ports quantity | 4 |
| Front panel audio connector | Yes |
| Number of M.2 (M) slots | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| RAID support | Yes |
| HDMI version | 2.1 |
| Windows operating systems supported | Windows 11 x64 |
| Maximum resolution | 3840 x 2160 pixels |
| USB 2.0 connectors | 2 |
| HDCP | Yes |
| Parallel processing technology support | Not supported |
| Windows operating systems supported | Windows 10 x64 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| LAN controller | Dragon RTL8125BG |
| Motherboard chipset | AMD B850 |
| Product colour | White |
| Bluetooth | Yes |
| Unbuffered memory | Yes |
| Maximum internal memory | 256 GB |
| Number of storage drives supported | 7 |
| Number of memory slots | 4 |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| Microphone in | Yes |
| Ethernet LAN | Yes |
| Line-in | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| 1st M.2 highest PCI Express generation | 5.0 |
| Number of RGB LED pin headers | 1 |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna included | Yes |
| 3rd M.2 largest key size | 2280 |
| Depth | 244 mm |
| Memory slots type | DIMM |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Supported memory types | DDR5-SDRAM |
| RGB LED pin header | Yes |
| 2nd M.2 largest key size | 2280 |
| Wi-Fi standards | 802.11b |
| Processor socket | Socket AM5 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| Screws included | Yes |
| Width | 244 mm |
| Warnings | Dispose of in accordance with local regulations for electronic waste. |
| 1st M.2 largest key size | 2280 |
| 12V power connector | Yes |
| Warnings | Avoid contact with liquids to prevent electronic damage. |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WiFi-AP antenna jack | 2 |
| Headphone outputs | 3 |
| Wi-Fi | Yes |
| Number of EPS power connectors (8-pin) | 1 |
| Compatible processor series | AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| 3rd M.2 highest PCI Express generation | 4.0 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Compatible processor series | AMD Ryzen 8000 Series |
| ECC сompatibility | ECC & Non-ECC |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of CPU fan connectors | 2 |
| M.2 standoff included | Yes |
| PCI Express x4 (Gen 4.x) slots | 1 |
