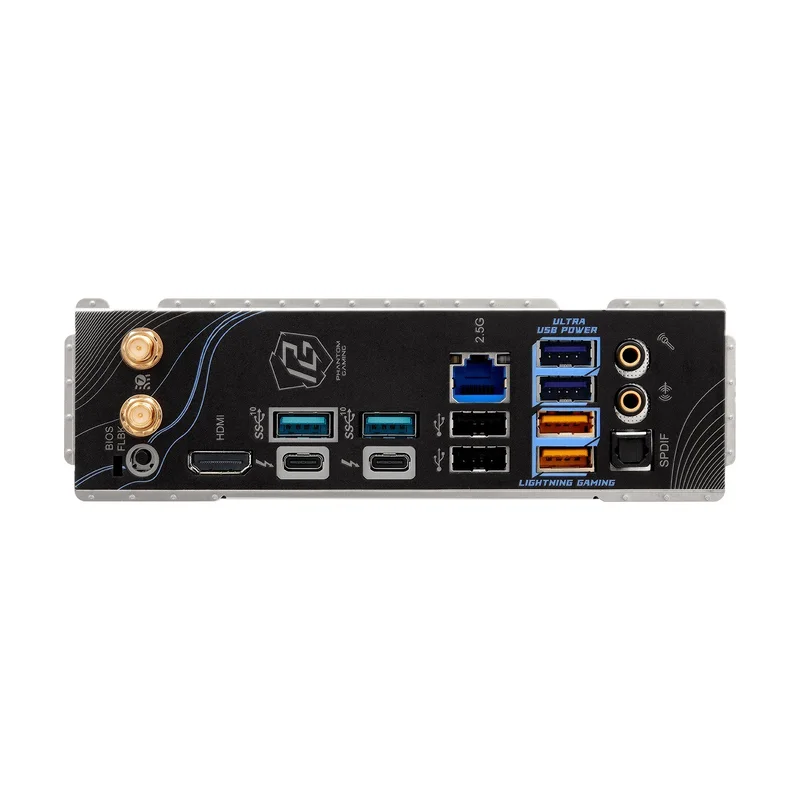

ASRock Z890 Riptide WiFi Motherboard
Technical specifications
| Maximum internal memory | 256 GB |
|---|---|
| CPU fan connector | 2 |
| Maximum number of SMP processors | 1 |
| Wi-Fi standards | IEEE 802.11b |
| Wi-Fi standards | IEEE 802.11n |
| Wi-Fi standards | 802.11 axe |
| Wi-Fi standards | IEEE 802.11ax |
| ATX Power connector (24-pin) | Yes |
| Audio output channels | 7.1 channels |
| Unbuffered memory | Yes |
| PCI Express x1 (Gen 3.x) slots | 1 |
| RAID support | Yes |
| Microphone in | Yes |
| Width | 305 mm |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 Type-A ports quantity | 2 |
| RAID levels | 5 |
| RAID levels | 1 |
| Audio chip | Realtek ALC1220 |
| Number of M.2 (M) slots | 1 |
| Front panel audio connector | Yes |
| Wireless statistics | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Cables included | SATA III 2 pcs. |
| Cables included | ARGB Splitter Cable x 1 |
| Wi-Fi standards | IEEE 802.11a |
| Pump connector | 1 |
| Memory slots type | DIMM |
| Motherboard form factor | ATX |
| Wi-Fi standards | IEEE 802.11ac |
| Supported memory types | DDR5-SDRAM |
| Wi-Fi antenna | Yes |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Motherboard chipset family | Intel |
| TPM connector | Yes |
| RAID levels | 10 |
| Number of antenna connectors | 2 |
| HDMI ports quantity | 1 |
| Motherboard chipset | Intel Z890 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Number of Thunderbolt 4 USB-C ports | 2 |
| Supported storage drive types | HDD & SSD |
| Intel Extreme Memory Profile (XMP) version | 3.0 |
| SPDIF optical output | Y |
| Cables included | Thermistor Cable x 1 |
| Wi-Fi standards | IEEE 802.11be |
| RGB LED pin header | Yes |
| Memory channels | Dual-channel |
| Wi-Fi standards | IEEE 802.11g |
| Number of USB 3.2 Gen 2×2 (3.1 Gen 2×2) Type-C ports | 1 |
| Thunderbolt headers | 1 |
| 8-pin power connector 12 V | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Windows operating systems supported | Windows 11 x64 |
| ECC сompatibility | Non-ECC |
| Windows operating systems supported | Windows 10 x64 |
| Processor socket | LGA1851 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of memory slots | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Number of SATA III connectors | 4 |
| Wi-Fi frequency | 2,4 Ghz / 5 GHz / 6 GHz |
| Chassis fan connector (4-pin) | 4 |
| USB 2.0 connectors | 2 |
| Wi-Fi | Yes |
| RAID levels | 0 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Certificates | CE |
| Certificates | FCC |
| Ethernet LAN | Yes |
| Depth | 244 mm |
| Certificates | ErP/EuP ready |
| Motherboard | Yes |
| Processor manufacturer | Intel |
| LAN controller | Killer E3100G |
| Compatible processor series | Intel Core Ultra (Series 2) |
| AIO pump fan connector | 1 |
| BIOS type | UEFI AMI |
