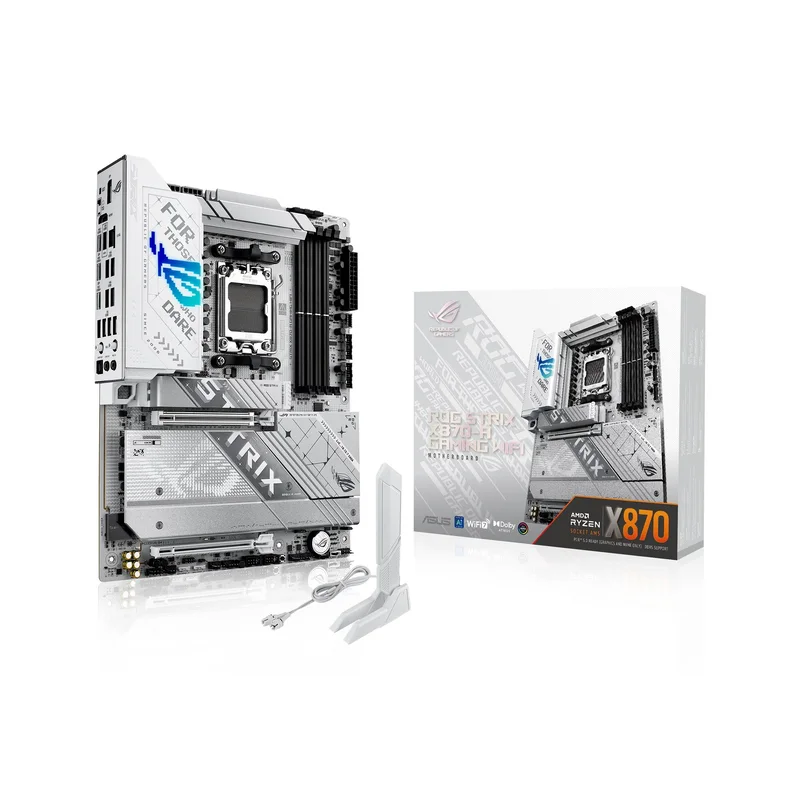

ASUS ROG STRIX X870-A GAMING WIFI AMD X870 Socket AM5 ATX
Technical specifications
| ECC сompatibility | ECC & Non-ECC |
|---|---|
| Warnings | Dispose of in accordance with local regulations for electronic waste. |
| Warnings | Do not disassemble to avoid damage to internal components and loss of warranty. |
| Warnings | Avoid contact with liquids to prevent electronic damage. |
| PCI Express x16 (Gen 5.x) slots | 1 |
| USB 3.2 Gen 2×2 connectors | 1 |
| Number of SATA III connectors | 2 |
| Package width | 353 mm |
| S/PDIF out port | Yes |
| Number of chassis fan connectors | 5 |
| RAID support | Yes |
| RAID levels | 1 |
| RAID levels | 10 |
| Motherboard chipset | AMD X870 |
| Chassis intrusion connector | Yes |
| HDMI ports quantity | 1 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Number of M.2 (M) slots | 4 |
| Weight | 1.84 kg |
| Motherboard chipset family | AMD |
| Product colour | Aluminium |
| Motherboard form factor | ATX |
| Memory channels | Dual-channel |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Audio output channels | 7.1 channels |
| CPU fan connector | Yes |
| Bluetooth | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 5 |
| Supported storage drive types | HDD & SSD |
| Clear CMOS button | Yes |
| Maximum internal memory | 192 GB |
| Supported processor sockets | Socket AM5 |
| Front panel audio connector | Yes |
| RAID levels | 0 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Unbuffered memory | Yes |
| Windows operating systems supported | Windows 11 |
| Cables included | SATA |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Package weight | 2.32 kg |
| ATX Power connector (24-pin) | Yes |
| RAID levels | 5 |
| Parallel processing technology support | Not supported |
| BIOS type | UEFI AMI |
| Audio chip | Realtek ALC4080 |
| Package depth | 273 mm |
| Package height | 68 mm |
| USB 2.0 connectors | 2 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Microphone in | Yes |
| Height | 50 mm |
| On-board graphics card | No |
| Bluetooth version | 5.4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Number of memory slots | 4 |
| Wi-Fi | Yes |
| Headphone outputs | 1 |
| Processor manufacturer | AMD |
| WiFi-AP antenna jack | 1 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| Processor socket | Socket AM5 |
| Number of storage drives supported | 6 |
| Width | 305 mm |
| Ethernet LAN | Yes |
| Depth | 244 mm |
| 12V power connector | Yes |
| Number of HDDs supported | 2 |
| USB4 Gen 2×2 ports quantity | 2 |
