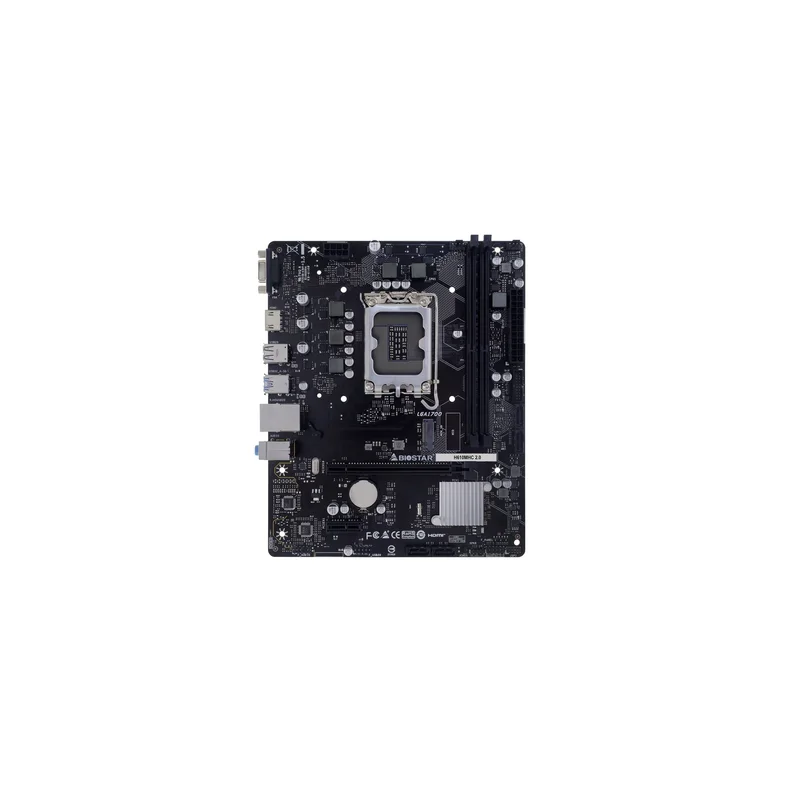

Biostar H610MHC 2.0 motherboard Intel H610 LGA 1700 micro ATX
Technical specifications
| LAN controller | Realtek RTL8111H |
|---|---|
| Supported memory clock speeds | 2133 |
| Product colour | Black |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| DirectX version | 12.0 |
| Supported memory clock speeds | 2933 |
| Maximum internal memory | 64 GB |
| Audio chip | Realtek ALC897 |
| Motherboard chipset | Intel H610 |
| Supported memory clock speeds | 1866 |
| Compatible processor series | Intel Core i3 12th Gen |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core i7 13th Gen |
| On-board graphics card | Yes |
| Front panel connector | Yes |
| Memory slots type | DIMM |
| Supported storage drive types | HDD & SSD |
| Compatible processor series | Intel Core i3 14th Gen |
| Motherboard form factor | micro ATX |
| Windows operating systems supported | Windows 10 x64 |
| Wi-Fi | No |
| USB 2.0 ports quantity | 4 |
| Compatible processor series | Intel® Celeron® |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Compatible processor series | Intel Core i7 12th Gen |
| Compatible processor series | Intel Core i5 14th Gen |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Compatible processor series | Intel Core i9 13th Gen |
| Audio output channels | 7.1 channels |
| Compatible processor series | Intel Core i9 14th Gen |
| ATX Power connector (24-pin) | Yes |
| Width | 185 mm |
| PC health monitoring | Voltage |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| Compatible processor series | Intel Core i5 12th Gen |
| Compatible processor series | Intel Core i7 14th Gen |
| HDCP | Yes |
| HDMI version | 1.4 |
| Ethernet LAN | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| PC health monitoring | Temperature |
| Ethernet LAN (RJ-45) ports | 1 |
| Drivers included | Yes |
| Compatible processor series | Intel Core i3 13th Gen |
| HDMI ports quantity | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PC health monitoring | Fan |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Compatible processor series | Intel Core i5 13th Gen |
| Compatible processor series | Intel Core i9 12th Gen |
| Number of M.2 (M) slots | 1 |
| ECC сompatibility | Non-ECC |
| CPU fan connector | Yes |
| Motherboard chipset family | Intel |
| Supported storage drive interfaces | M.2, SATA III |
| Front panel audio connector | Yes |
| USB 2.0 connectors | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Cables included | SATA |
| Processor socket | LGA 1700 |
| Windows operating systems supported | Windows 11 x64 |
| Depth | 226 mm |
| Number of EPS power connectors (8-pin) | 1 |
| BIOS type | UEFI AMI |
