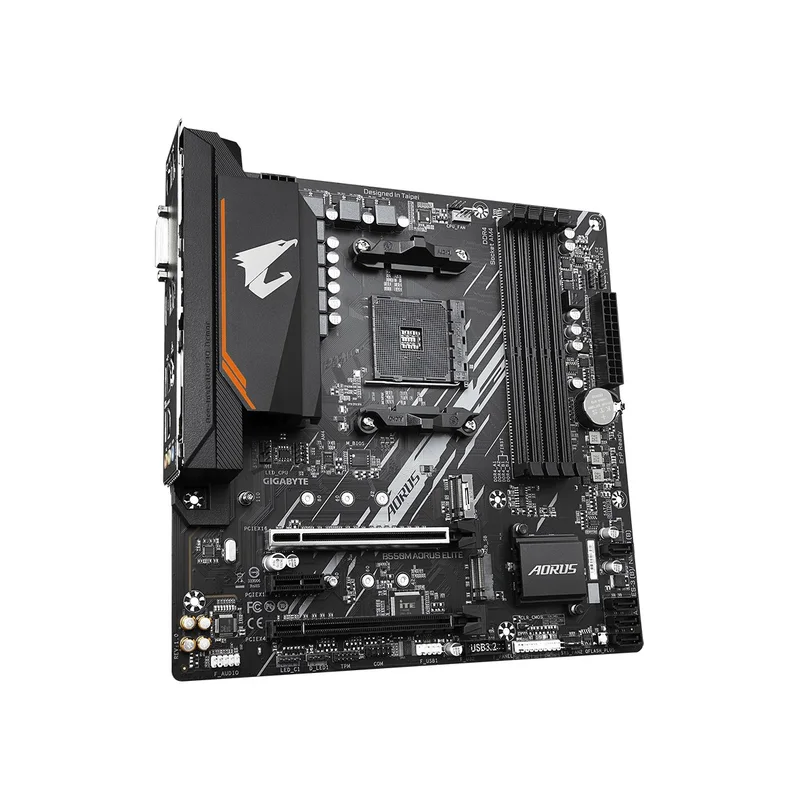

Gigabyte B550M AORUS ELITE Socket AM4 micro ATX AMD B550
Technical specifications
| Supported storage drive types | HDD & SSD |
|---|---|
| DVI-D ports quantity | 1 |
| Clear CMOS jumper | Yes |
| Supported memory clock speeds | 2133 MHz |
| CPU fan connector | Yes |
| Supported storage drive interfaces | Serial ATA III |
| Unbuffered memory | Yes |
| Processor socket | Socket AM4 |
| PC health monitoring | Temperature |
| Maximum resolution | 4096 x 2160 pixels |
| Depth | 244 mm |
| HDMI version | 2.1 |
| Number of memory slots | 4 |
| Desktop Management Interface (DMI) version | 2.7 |
| Supported memory clock speeds | 2400 |
| TPM connector | Yes |
| Motherboard chipset | AMD B550 |
| Supported memory clock speeds | 3333 |
| Front panel audio connector | Yes |
| Windows operating systems supported | Windows 10 x64 |
| PC health monitoring | Voltage |
| Supported memory clock speeds | 4600 MHz |
| Width | 244 mm |
| Maximum number of SMP processors | 1 |
| BIOS type | UEFI AMI |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Maximum graphics card memory | 16000 MB |
| Maximum internal memory | 128 GB |
| Number of chassis fan connectors | 2 |
| Motherboard chipset family | AMD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| Supported memory clock speeds | 4000 |
| PCI Express x16 slots | 2 |
| Supported memory clock speeds | 3200 MHz |
| Number of SATA III connectors | 4 |
| Ethernet LAN | Yes |
| RGB LED pin header | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| PCI Express x1 (Gen 3.x) slots | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 7 |
| Supported memory clock speeds | 2667 |
| Supported memory clock speeds | 4400 MHz |
| HDCP | Yes |
| 12V power connector | Yes |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
| Wi-Fi | No |
| PC health monitoring | Fan |
| PS/2 ports quantity | 1 |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3600 |
| Supported memory clock speeds | 4733 |
| Motherboard form factor | micro ATX |
| USB 2.0 connectors | 1 |
| Compatible processor series | 3rd Generation AMD Ryzen 5 |
| Supported memory types | DDR4-SDRAM |
| Cables included | SATA |
| Serial port headers | 1 |
| Number of M.2 (M) slots | 2 |
| RAID levels | 1 |
| Ethernet interface type | Gigabit Ethernet |
| RAID levels | 10 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
| USB 2.0 ports quantity | 4 |
| RAID levels | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Processor manufacturer | AMD |
