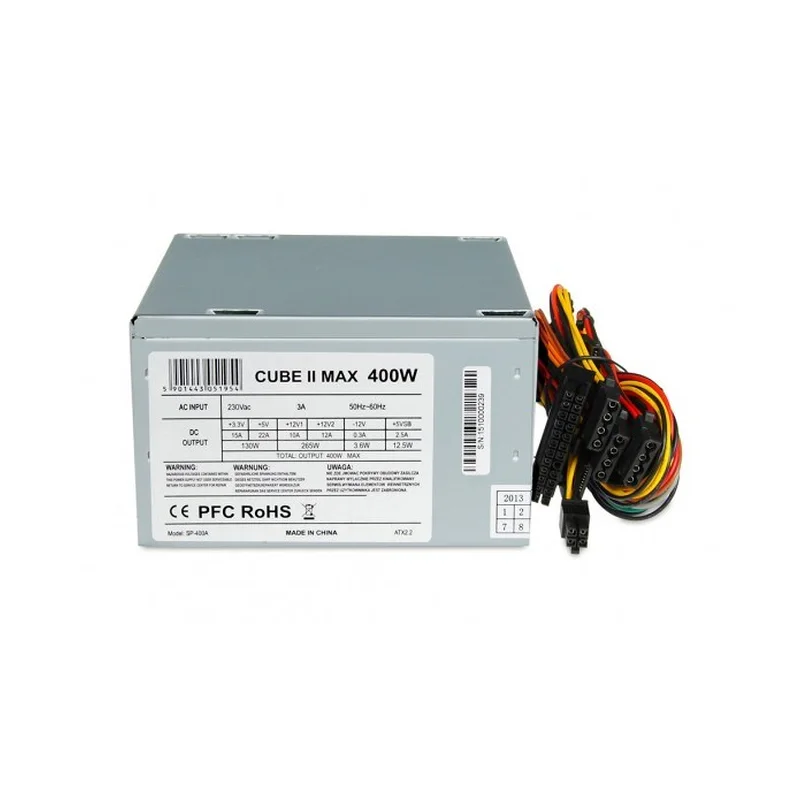

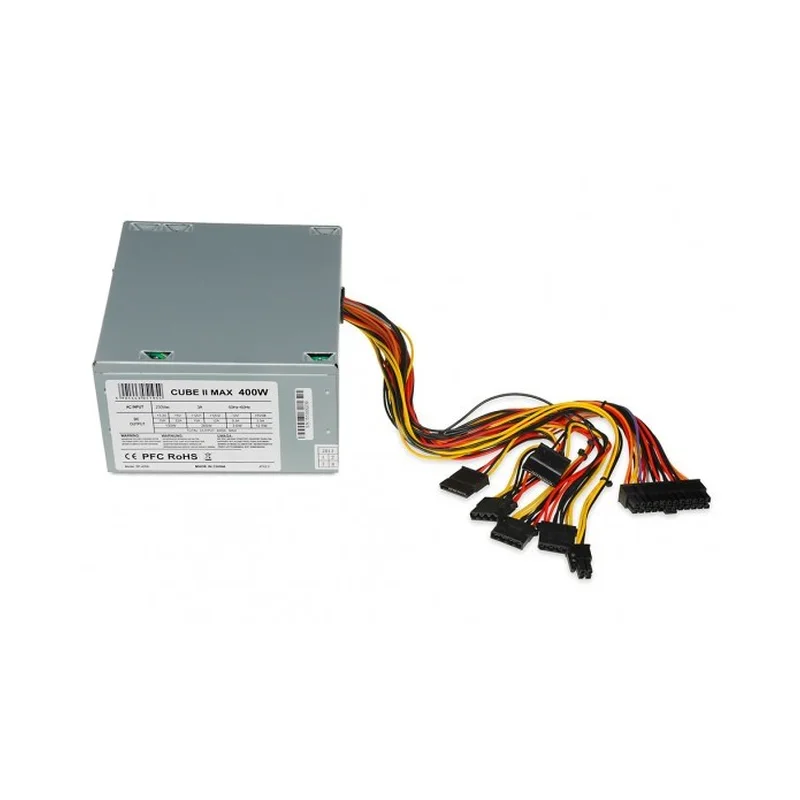

iBox CUBE II power supply unit 400 W 20+4 pin ATX ATX Silver
Technical specifications
| Certification | CE |
|---|---|
| Fan diameter | 12 cm |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Cooling type | Active |
| Power protection features | Overload |
| Safety | UVP / OVP / SCP / OPP / OCP / OTP |
| Power Factor Correction (PFC) type | Passive |
| ATX version | 2.2 |
| Motherboard power connector | 20+4 pin ATX |
| Max output current (+12V1) | 10 A |
| Power protection features | Under voltage |
| Power protection features | Over current |
| Fan location | Side |
| ATX power connector (20+4 pin) | Yes |
| Depth | 85 mm |
| Combined power (+3.3V) | 130 W |
| Max output current (+5Vsb) | 2.5 A |
| Number of SATA power connectors | 2 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Noise level | 20 dB |
| Combined power (-12V) | 3.6 W |
| Product colour | Silver |
| Power supply unit (PSU) form factor | ATX |
| AC input frequency | 50 – 60 Hz |
| Max output current (+3.3V) | 15 A |
| Height | 150 mm |
| Cabling type | Non-Modular |
| Combined power (+5V) | 130 W |
| Width | 140 mm |
| Max output current (+12V2) | 12 A |
| Number of fans | 1 fan(s) |
| Power consumption (max) | 400 W |
| Total power | 400 W |
| Input current | 3 A |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+5V) | 22 A |
| AC input voltage | 230 V |
| Max output current (-12V) | 0.3 A |
| Sustainability certificates | RoHS |
