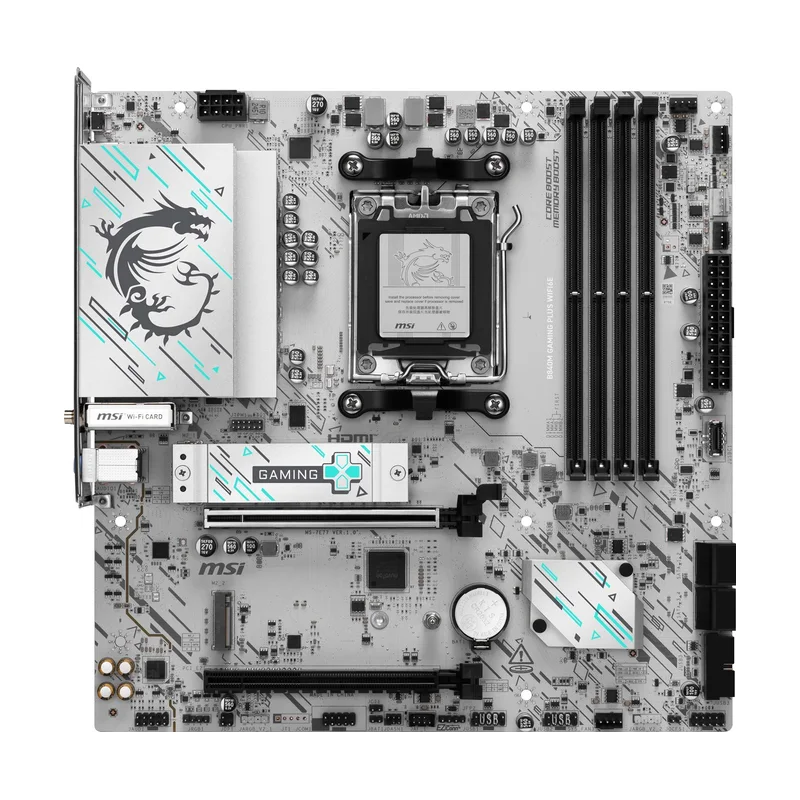

MSI B840M GAMING PLUS WIFI6E motherboard AMD B840 Socket AM5 micro ATX
Technical specifications
| 1st M.2 highest PCI Express generation | 4.0 |
|---|---|
| 2nd M.2 highest PCI Express generation | 4.0 |
| 2nd M.2 largest key size | 2280 |
| Number of CPU fan connectors | 1 |
| 1st M.2 largest key size | 2280 |
| Number of RGB LED pin headers | 4 |
| Supported memory clock speed (max) | 8000 MHz |
| PCI Express x16 slots | 2 |
| ECC сompatibility | Non-ECC |
| RAID support | Yes |
| Ethernet LAN | Yes |
| HDMI version | 2.1 |
| Bluetooth version | 5.3 |
| RAID levels | 1 |
| Depth | 243.8 mm |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Motherboard form factor | micro ATX |
| Wi-Fi standards | 802.11b |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Audio chip | Realtek ALC897 |
| RAID levels | 10 |
| Motherboard chipset | AMD B840 |
| RAID levels | 0 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset family | AMD |
| Product colour | White |
| RGB LED pin header | Yes |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Audio output channels | 7.1 channels |
| Memory channels | Dual-channel |
| Windows operating systems supported | Windows 11 x64 |
| Supported storage drive types | HDD & SSD |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Memory slots type | DIMM |
| Supported storage drive interfaces | M.2, SATA III |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Supported memory types | DDR5-SDRAM |
| Number of M.2 (M) slots | 2 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| USB 2.0 connectors | 4 |
| Processor socket | Socket AM5 |
| Supported memory clock speeds | 5600 |
| Number of SATA III connectors | 4 |
| Supported memory clock speeds | 6400 |
| Number of memory slots | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported memory clock speeds | 4800 |
| Maximum internal memory | 256 GB |
| On-board graphics card | No |
| Supported processor sockets | Socket AM5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Width | 243.8 mm |
| LAN controller | Realtek RTL8125D |
| Supported memory clock speeds | 8000 MHz |
| Compatible processor series | AMD Ryzen 8000 Series |
| Compatible processor series | AMD Ryzen 9000 Series |
| USB 2.0 ports quantity | 4 |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
