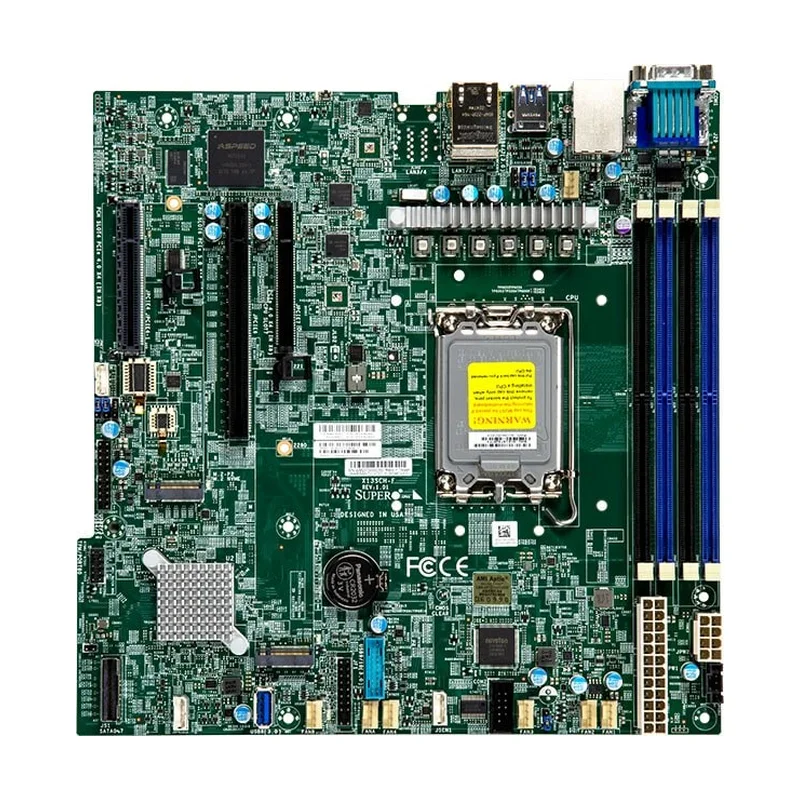

Supermicro MBD-X13SCH-F Intel® C226 LGA 1700 micro ATX
Technical specifications
| Supported memory types | DDR5-SDRAM |
|---|---|
| Memory slots type | DIMM |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Serial ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| Width | 243.8 mm |
| Ethernet interface type | Gigabit Ethernet |
| On-board graphics card | Yes |
| Compatible processor series | Intel® Pentium® |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Xeon® |
| Memory voltage | 1.1 V |
| Processor socket | LGA 1700 |
| TPM connector | Yes |
| Graphics card family | ASPEED |
| ACPI version | 6.4 |
| Ethernet LAN | Yes |
| Depth | 243.8 mm |
| Graphics card | AST2600 |
| Ethernet LAN (RJ-45) ports | 3 |
| Supported memory module capacities | 32GB |
| Number of SATA III connectors | 8 |
| Supported memory module capacities | 16GB |
| RAID support | Yes |
| Supported storage drive interfaces | PCI Express 4.0, PCI Express 5.0, SATA III |
| Motherboard chipset | Intel® C226 |
| Motherboard chipset family | Intel |
| Supported memory module capacities | 8GB |
| RAID levels | 10 |
| RAID levels | 0 |
| RAID levels | 1 |
| USB 2.0 ports quantity | 6 |
| Serial port headers | 1 |
| Processor cores | 8 |
| Component for | Server |
| BIOS type | UEFI AMI |
| Motherboard form factor | micro ATX |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC |
