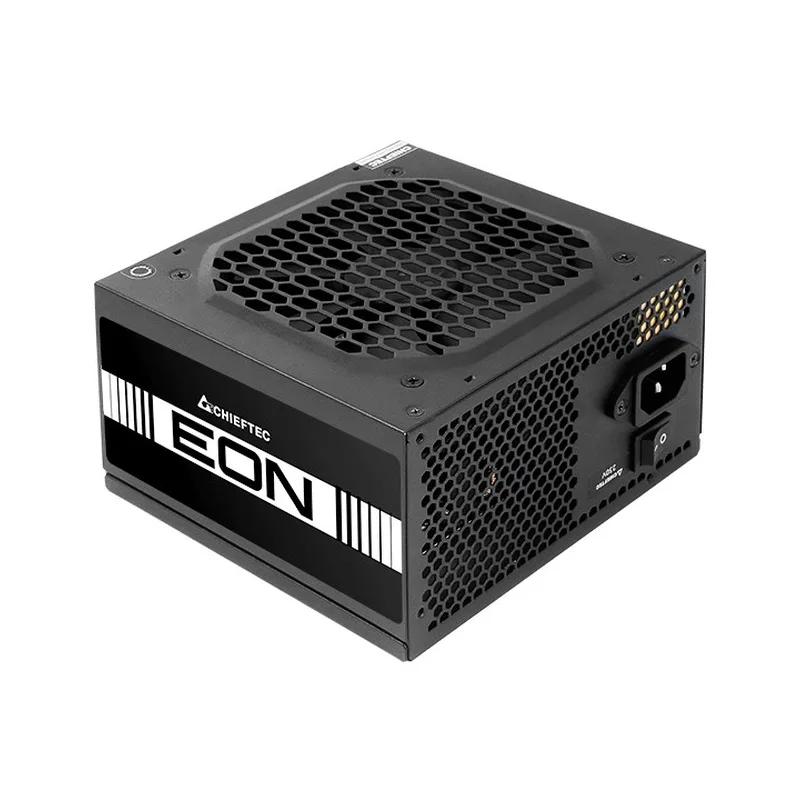

Chieftec EON ZPU-500S power supply unit 500 W 20+4 pin ATX ATX Black
Technical specifications
| Sustainability certificates | ErP |
|---|---|
| Warranty period | 2 year(s) |
| Depth | 140 mm |
| Number of SATA power connectors | 4 |
| ATX power connector (20+4 pin) | Yes |
| Package type | Box |
| Peripheral (Molex) power cable length | 450 |
| Combined power (+5Vsb) | 12.5 W |
| Supported motherboard form factors | ATX |
| AC input frequency | 50 Hz |
| Cooling type | Active |
| Purpose | PC/Server |
| Power protection features | Surge protection |
| Peripheral (Molex) power cable length | 150 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Motherboard power connector | 20+4 pin ATX |
| Max output current (+5Vsb) | 2.5 A |
| SATA power cable length | 600 mm |
| Total power | 500 W |
| EPS power connector (4+4 pin) | Yes |
| SATA power cable length | 450 |
| Motherboard power cable length | 65 cm |
| Power supply unit (PSU) form factor | ATX |
| Width | 150 mm |
| 80 PLUS certification | 80 PLUS |
| Fan diameter | 12 cm |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 444 W |
| Combined power (+3.3V) | 100 W |
| AC input voltage | 200 – 240 V |
| Combined power (-12V) | 4.8 W |
| Product colour | Black |
| Weight | 1.2 kg |
| Max output current (+12V1) | 37 A |
| Power factor | 0.9 |
| Height | 86 mm |
| Input current | 3.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.4 A |
| Max output current (+3.3V) | 20 A |
| PCI Express power connectors (6+2 pin) | 1 |
| On/off switch | Yes |
| Power protection features | Surge and inrush |
| SATA power cable length | 750 mm |
| Power protection features | Short circuit |
| ATX version | 2.3 |
| CPU power connector (4+4 pin) | Yes |
| Combined power (+5V) | 100 W |
| Package weight | 1.45 kg |
| Cabling type | Non-Modular |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | CB |
| Compliance certificates | EAC |
