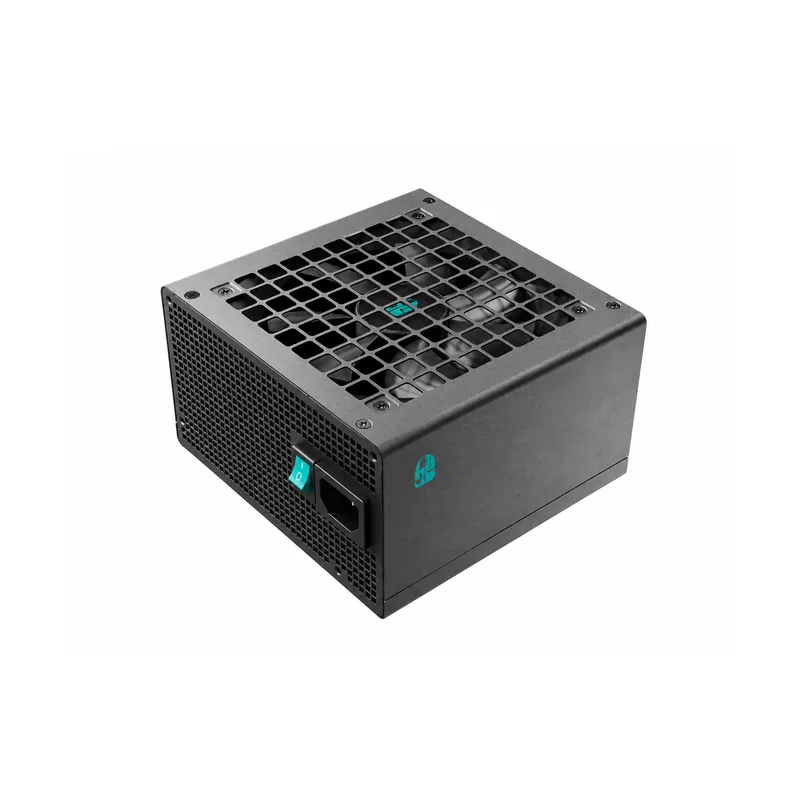

PC Power Supply DEEPCOOL PF550X-FE, Black
Technical specifications
| Certification | CE/FCC/CCC/RCM/EAC/CAN ICES-003(B)/NMB-003(B) /TUV-RH |
|---|---|
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | UKCA |
| Compliance certificates | BIS |
| Compliance certificates | Federal Communications Commission (FCC) |
| Total power | 550 W |
| Power protection features | OVP (overvoltage protection) |
| On/off switch | Yes |
| Mean time between failures (MTBF) | 1000000 h |
| Width | 150 mm |
| Power protection features | SCP (short circuit protection) |
| Power protection features | UVP (undervoltage protection) |
| Sustainability compliance | Yes |
| Power protection features | OCP (overcurrent protection) |
| Cooling type | Active |
| Depth | 140 mm |
| Height | 86 mm |
| Power supply unit (PSU) form factor | ATX |
| Purpose | PC |
| PCI Express power connectors (6+2 pin) | 2 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| Cabling type | Non-Modular |
| Efficiency | 85% |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| ATX version | 2.4 |
| Power protection features | OPP (overload protection) |
| Power protection features | SIP (surge and shock protection) |
| 80 PLUS certification | 80 PLUS Bronze |
| Bearing technology | Hypro Bearing |
| Fan location | Lower |
| Number of SATA power connectors | 6 |
| Motherboard power connector | 20+4 pin ATX |
| Max output current (+12V) | 62.5 A |
| Power Good signal delay range | 100 – 150 ms |
| Combined power (+12V) | 550 W |
| Package type | Box |
| Motherboard power cable length | 50 cm |
| Operating temperature (T-T) | 0 – -40 °C |
| ATX power connector (20+4 pin) | Yes |
| CPU power connector (4+4 pin) | Yes |
| Power Factor Correction (PFC) type | Active |
| AC input voltage | 100 – 240 V |
| Product colour | Black |
| Input current | 8 A |
| AC input frequency | 50/60 Hz |
