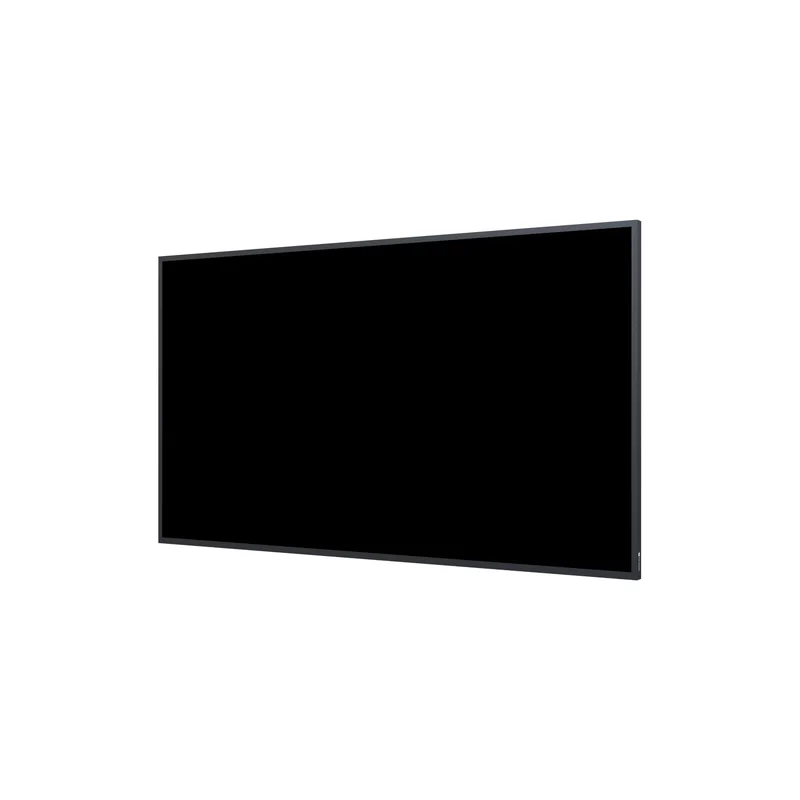

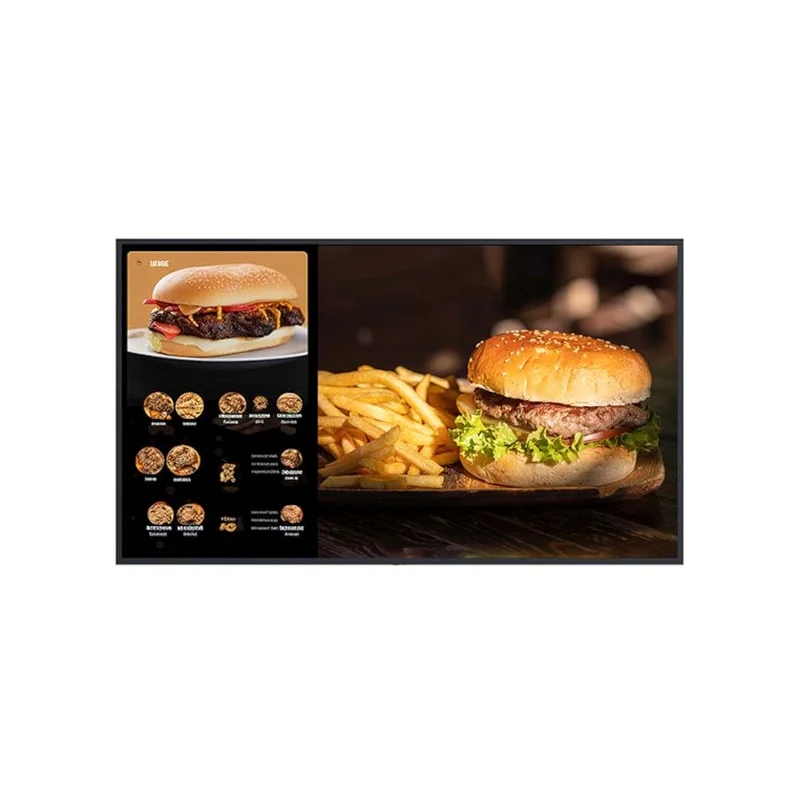

AG Neovo NSD-5503 – UHD 4K digital advertising display
Technical specifications
| Product colour | Black |
|---|---|
| Display resolution | 3840 x 2160 pixels |
| AC input frequency | 50 – 60 Hz |
| Display diagonal | 138.7 cm (54.6") |
| Display brightness (typical) | 500 cd/m² |
| AC input voltage | 100 – 240 V |
| Contrast ratio (dynamic) | 4000:1 |
| Depth (without stand) | 38,6 mm |
| Power consumption (standby) | 0.5 W |
| RS-232 interface | Yes |
| Viewing angle, vertical | 178° |
| VESA mounting | Yes |
| Energy efficiency class | G |
| HDMI version | 2.0 |
| Compliance certificates | WEEE |
| Operating relative humidity (H-H) | 20 – 80% |
| Horizontal scan range | 18 – 135 kHz |
| Compliance certificates | REACH |
| RMS rated power | 2 x 10 W |
| Remote control type | Y |
| Storage temperature (T-T) | -20 – 60 °C |
| HDMI ports quantity | 3 |
| HD type | 4K Ultra HD |
| Operating temperature (T-T) | 0 – 40 °C |
| Built-in speaker(s) | Yes |
| Power consumption (typical) | 89 W |
| USB 2.0 connectors | 2 |
| Compliance certificates | Federal Communications Commission (FCC) |
| Ethernet LAN (RJ-45) ports | 1 |
| Panel mounting interface | 300 x 400 |
| Pixel pitch | 0.315 x 0.315 mm |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Response time | 5 ms |
| Width (without stand) | 1239.7 mm |
| Energy efficiency scale | A to G |
| Weight (without stand) | 17.6 kg |
| Audio out (mini jack) | 1 |
| Panel type | VA |
| Number of speakers | 2 |
| Viewing angle, horizontal | 178° |
| Cables included | HDMI |
| Height (without stand) | 712,5 mm |
| HDMI | Yes |
| Cables included | AC |
| Vertical scan range | 24 – 60 Hz |
| Warnings | Do not open the appliance housing, risk of electric shock. |
| Screen shape | Flat |
| Batteries included | Yes |
| Warnings | The monitor contains substances hazardous to health, including mercury; avoid contact with damaged parts. |
| Compliance certificates | BSMI |
| Compliance certificates | Low Voltage Directive (LVD) |
| Compliance certificates | ICES-003 Issue 7 |
