Description

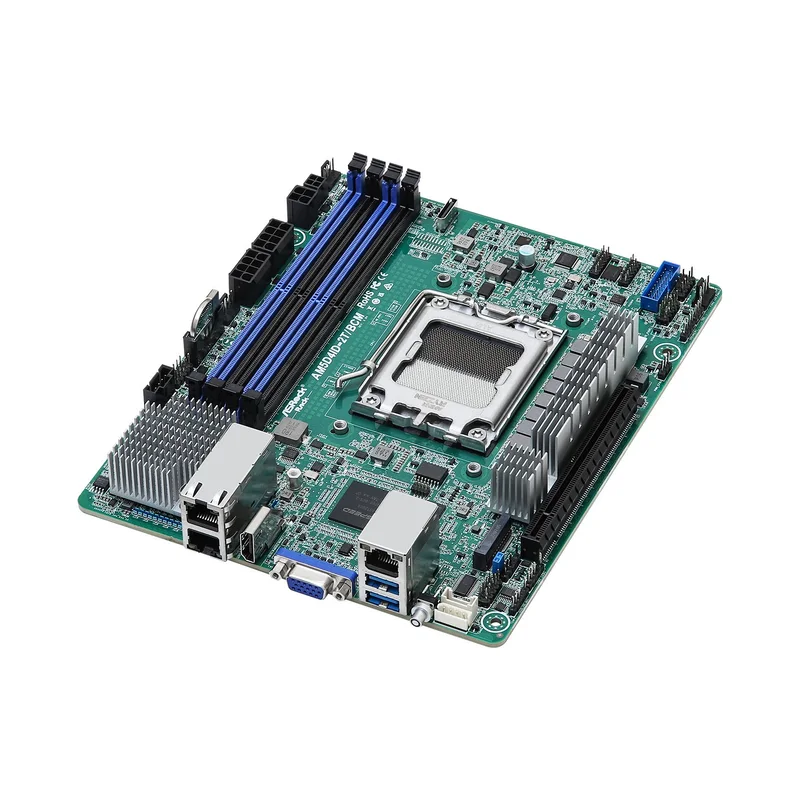

Asrock AM5D4ID-2T/BCM motherboard KNOLL3 X300 Socket AM5 mini ITX
Technical specifications
| Motherboard form factor | mini ITX |
|---|---|
| Supported memory clock speeds | 5200 |
| Maximum internal memory | 192 GB |
| Motherboard chipset | KNOLL3 X300 |
| Supported memory clock speeds | 3600 |
| Supported storage drive types | SSD |
| LAN controller | Broadcom BCM57416 |
| Supported storage drive interfaces | M.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Graphics card | AST2600 |
| Ethernet LAN | Yes |
| Motherboard chipset family | AMD |
| Supported memory clock speed (max) | 5200 MHz |
| BIOS memory size | 256 Mbit |
| Ethernet interface type | 10 Gigabit Ethernet |
| ECC сompatibility | ECC & Non-ECC |
| Audio connector | Yes |
| Chassis intrusion connector | Yes |
| Windows operating systems supported | Windows 11 x64 |
| Number of COM connectors | 1 |
| System Management BIOS (SMBIOS) version | 2.3 |
| Storage temperature (T-T) | -40 – 70 °C |
| TPM connector | Yes |
| Depth | 208.3 mm |
| Number of storage drives supported | 1 |
| Storage relative humidity (H-H) | 20 – 90% |
| Number of M.2 (M) slots | 1 |
| Graphics card family | ASPEED |
| Compatible processor series | AMD EPYC 4004 |
| Compatible processor series | AMD Ryzen 7000 Series |
| Compatible processor series | AMD Ryzen 8000 Series |
| Processor manufacturer | AMD |
| Component for | Server |
| Compatible processor series | AMD Ryzen 9000 Series |
| Supported memory types | DDR5-SDRAM |
| Top Wi-Fi standard | Not available |
| Supported processor sockets | Socket AM5 |
| 12V power connector | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| ATX Power connector (24-pin) | Yes |
| Operating temperature (T-T) | 10 – 35 °C |
| Wi-Fi | No |
| Ethernet LAN (RJ-45) ports | 2 |
| BIOS type | UEFI AMI |
| Windows operating systems supported | Windows 10 x64 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| Width | 170.2 mm |
| Warnings | The motherboard may contain electronic components hazardous to health – avoid direct contact. |
| Warnings | Do not open or disassemble the motherboard. |
| Linux operating systems supported | Ubuntu 22.04 |
| Processor socket | Socket AM5 |
| Warnings | Use only in a dry and well-ventilated area. |
| Memory slots type | DIMM |
| IPMI LAN (RJ-45) port | Yes |
| ACPI version | 5.1 |
| Memory voltage | 1.1 V |
| PCI Express x16 (Gen 5.x) slots | 1 |
