Description

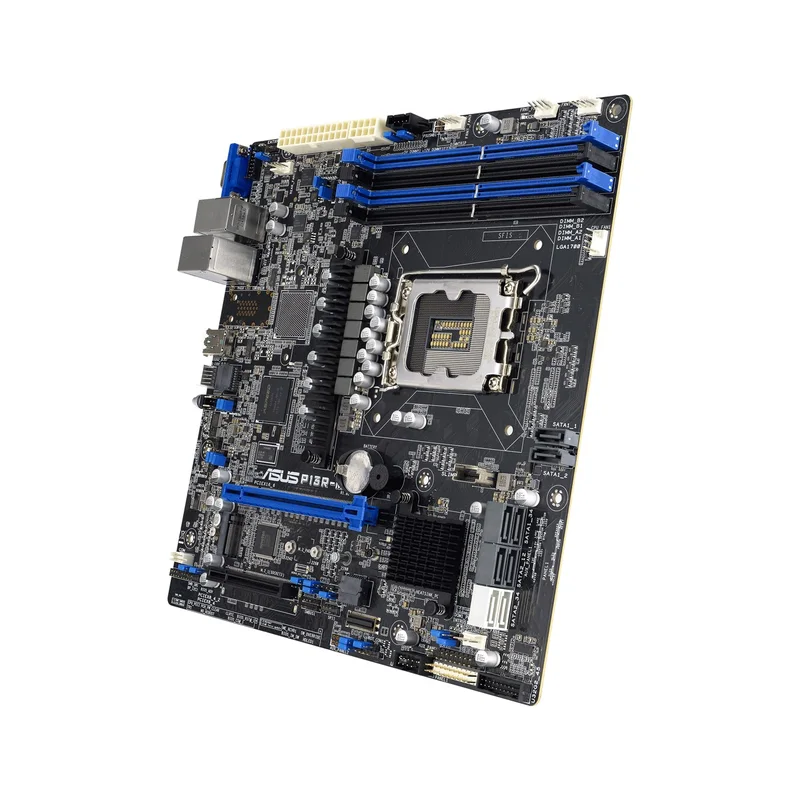

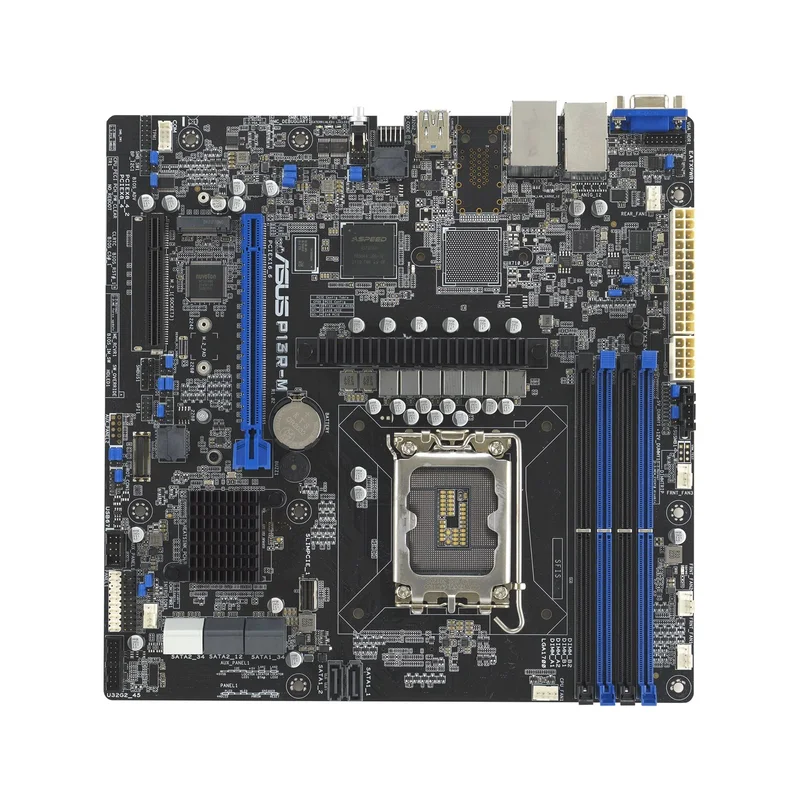

ASUS P13R-M Intel C262 LGA 1700 micro ATX
Technical specifications
| PCI Express x16 (Gen 5.x) slots | 1 |
|---|---|
| Warnings | Adjust adequate ventilation to avoid overheating and potential damage. |
| Warnings | The product contains electrical components – take care during installation to avoid injury. |
| Warnings | Avoid contact with liquids and moisture to prevent damage to equipment. |
| Ethernet LAN | Yes |
| Depth | 244 mm |
| Storage relative humidity (H-H) | 20 – 90% |
| Storage temperature (T-T) | -40 – 70 °C |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Number of M.2 (M) slots | 1 |
| Compatible processor series | Intel® Pentium® |
| Width | 244 mm |
| Processor manufacturer | Intel |
| Operating temperature (T-T) | 10 – 50 °C |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 3 |
| Supported memory types | DDR5-SDRAM |
| Memory slots type | DIMM |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| Number of HDDs supported | 8 |
| TPM connector | Yes |
| Component for | Server |
| Ethernet interface type | Fast Ethernet |
| VGA (D-Sub) ports quantity | 1 |
| Number of memory slots | 4 |
| Ethernet interface type | Gigabit Ethernet |
| Graphics card family | ASPEED |
| Compatible processor series | Intel Xeon E |
| Processor socket | LGA 1700 |
| Ethernet LAN (RJ-45) ports | 2 |
| Number of SATA III connectors | 8 |
| Motherboard form factor | micro ATX |
| Weight | 760 g |
| USB 2.0 connectors | 1 |
| Package weight | 1.3 kg |
| Supported memory module capacities | 8GB |
| Supported memory module capacities | 32GB |
| Supported memory module capacities | 16GB |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Serial port headers | 1 |
| Motherboard chipset | Intel C262 |
| Supported storage drive interfaces | M.2, SATA III |
| Supported memory clock speeds | 4000 |
| Motherboard chipset family | Intel |
| Maximum internal memory | 128 GB |
| Graphics card | AST2600 |
| ATX Power connector (24-pin) | Yes |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 3600 |
