Description

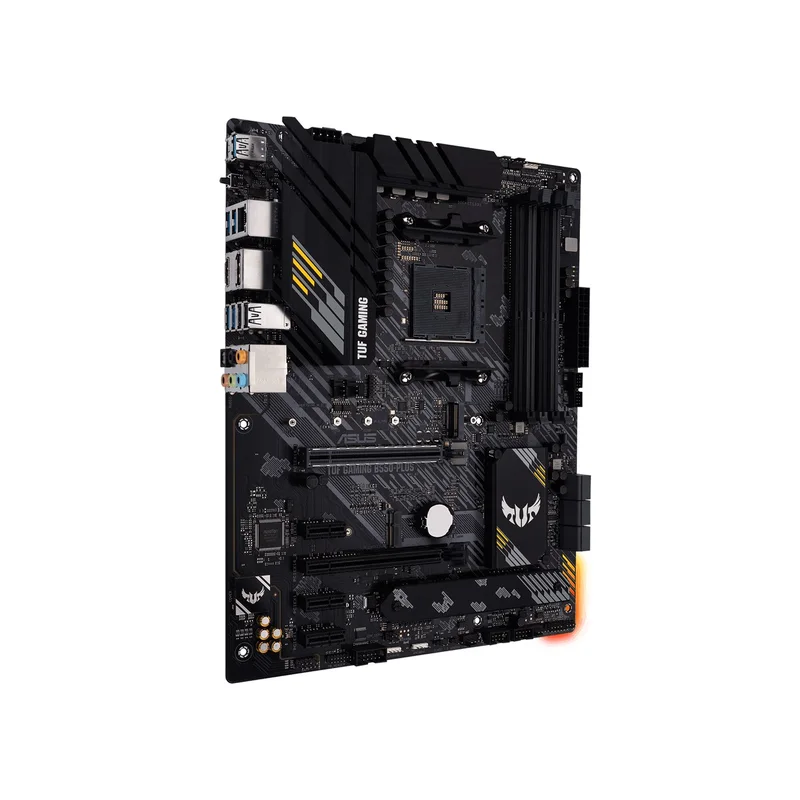

ASUS TUF Gaming B550-PLUS Socket AM4 ATX AMD B550
Technical specifications
| Supported storage drive interfaces | M.2, Serial ATA |
|---|---|
| Motherboard form factor | ATX |
| DisplayPorts quantity | 1 |
| Supported memory clock speeds | 4600 |
| Number of chassis fan connectors | 3 |
| Motherboard chipset | AMD B550 |
| RAID levels | 1 |
| EPS power connector (8-pin) | Yes |
| Clear CMOS jumper | Yes |
| Supported memory clock speeds | 3466 |
| Front panel audio connector | Yes |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Supported memory clock speeds | 3333 |
| Supported processor sockets | Socket AM4 |
| RAID levels | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| Supported memory clock speeds | 4266 |
| PCI Express x1 (Gen 3.x) slots | 3 |
| Supported memory clock speeds | 3000 |
| S/PDIF out port | Yes |
| Number of SATA III connectors | 6 |
| Supported memory clock speeds | 4133 |
| Supported memory clock speeds | 4000 |
| Number of SATA connectors | 4 |
| Parallel processing technology support | 2-Way CrossFireX |
| Supported memory clock speeds | 3600 |
| RAID levels | 10 |
| Cables included | SATA |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Supported memory clock speeds | 3866 |
| Maximum internal memory | 128 GB |
| BIOS type | UEFI AMI |
| USB 2.0 connectors | 2 |
| ATX Power connector (24-pin) | Yes |
| Windows operating systems supported | Windows 10 x64 |
| Supported memory clock speeds | 2133 |
| LAN controller | Realtek RTL8125B |
| Motherboard chipset family | AMD |
| USB 2.0 ports quantity | 2 |
| Audio output channels | 7.1 channels |
| CPU fan connector | Yes |
| TPM connector | Yes |
| Audio chip | Realtek ALC S1200A |
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Number of memory slots | 4 |
| Depth | 244 mm |
| Drivers included | Yes |
| Wi-Fi | No |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
| Compatible processor series | 3rd Generation AMD Ryzen 5 |
| Supported memory types | DDR4-SDRAM |
| Compatible processor series | 3rd Generation AMD Ryzen™ 7 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Memory slots type | DIMM |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
| Processor manufacturer | AMD |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PS/2 ports quantity | 1 |
| Ethernet LAN | Yes |
| Maximum number of SMP processors | 1 |
| Memory channels | Dual-channel |
| HDMI ports quantity | 1 |
| Width | 305 mm |
| Processor socket | Socket AM4 |
