Description

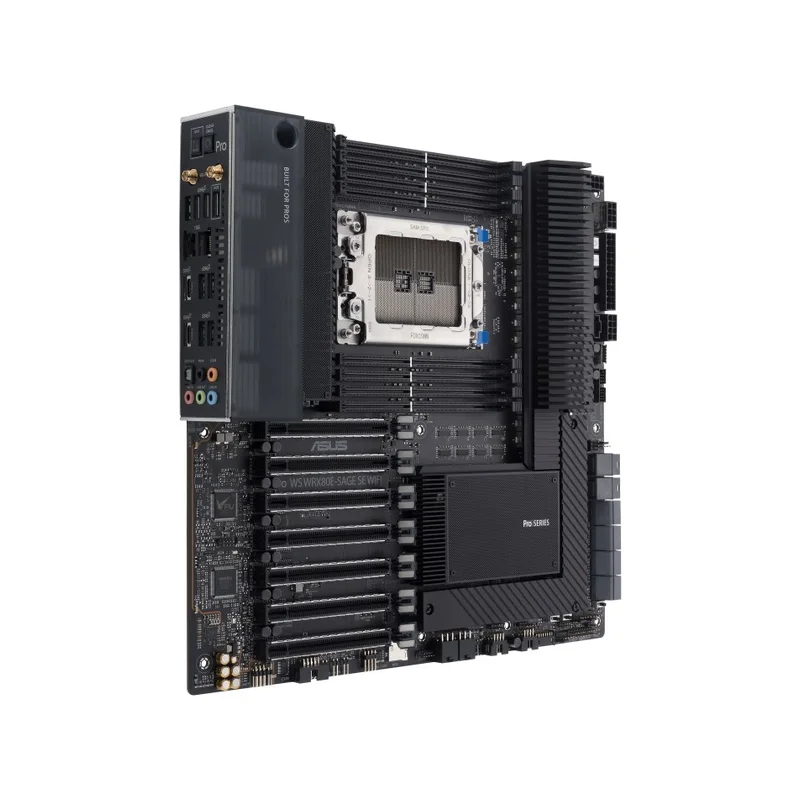

ASUS WRX80E-SAGE SE WIFI AMD WRX80 Socket SP3 Extended ATX
Technical specifications
| Compatible operating systems | Windows 10 |
|---|---|
| Maximum number of SMP processors | 1 |
| Depth | 330.2 mm |
| Wi-Fi | Yes |
| Compatible processor series | AMD Ryzen Threadripper Pro 3rd Gen |
| Memory slots type | DIMM |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Width | 309.8 mm |
| Supported memory types | DDR4-SDRAM |
| Ethernet LAN | Yes |
| Headphone outputs | 1 |
| Number of memory slots | 8 |
| VGA (D-Sub) ports quantity | 1 |
| Bluetooth version | 5.2 |
| Ethernet interface type | 10 Gigabit Ethernet |
| Harmonized System (HS) code | 84733020 |
| Processor socket | Socket SP3 |
| Warnings | Use only in a dry and well-ventilated area. |
| Warnings | The motherboard may contain electronic components hazardous to health – avoid direct contact. |
| Warnings | Do not open or disassemble the motherboard. |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 2666 |
| RAID levels | 1 |
| Memory channels | Octa-channel |
| Drivers included | Yes |
| Number of SATA III connectors | 8 |
| EPS power connector (8-pin) | Yes |
| Cooling type | Passive |
| PCI Express x16 slots | 7 |
| Windows operating systems supported | Windows 10 x64 |
| Supported memory clock speeds | 3000 |
| BIOS type | UEFI AMI |
| Supported storage drive interfaces | SATA III |
| Supported memory clock speeds | 2133 |
| Motherboard form factor | Extended ATX |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| Component for | PC |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| RAID levels | 0 |
| TPM connector | Yes |
| RAID levels | 10 |
| ECC | Yes |
| RAID levels | 5 |
| CPU fan connector | Yes |
| Motherboard chipset | AMD WRX80 |
| Motherboard chipset family | AMD |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| BIOS memory size | 256 Mbit |
| Supported memory clock speeds | 2933 |
| Wi-Fi standards | 802.11g |
| Trusted Platform Module (TPM) | Yes |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Cables included | SATA, VGA |
| Maximum internal memory | 2 TB |
| Number of chassis fan connectors | 6 |
| Number of M.2 (M) slots | 3 |
| Processor cores | 64 |
| Clear CMOS button | Yes |
| Processor manufacturer | AMD |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Processor number of cores supported | 64 |
| LAN controller | Intel X550-T2 |
| Chassis intrusion connector | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 9 |
| RAID support | Yes |
| ATX Power connector (24-pin) | Yes |
| Parallel processing technology support | 3-Way SLI |
| USB 2.0 connectors | 2 |
| Parallel processing technology support | 2-Way SLI |
| Parallel processing technology support | 4-Way SLI |
Reviews
There are no reviews yet.
