Description

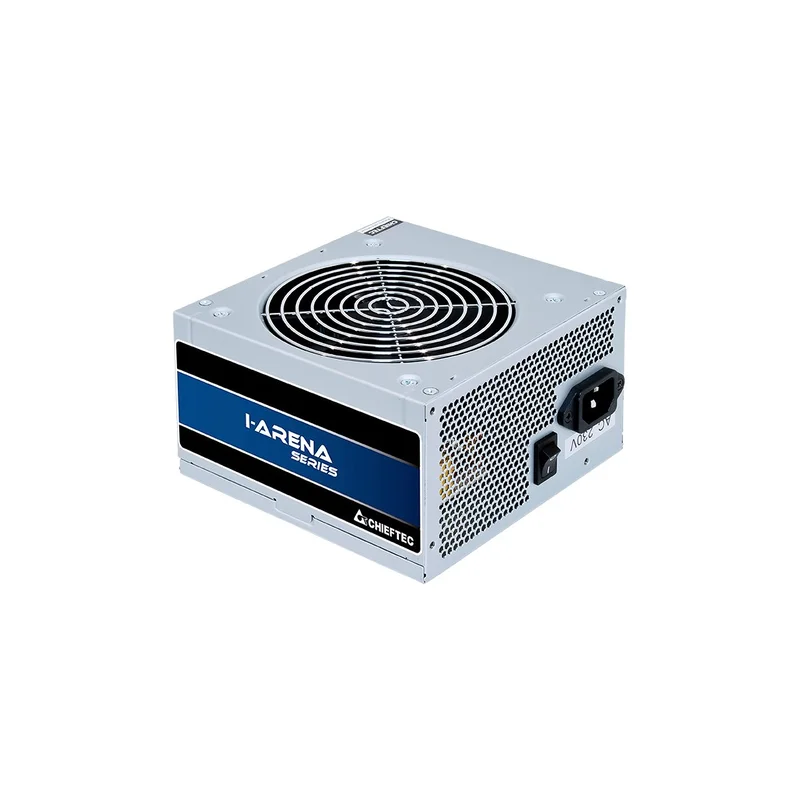

Chieftec GPB-450S power supply unit 450 W 20+4 pin ATX PS/2 Silver
Technical specifications
| Motherboard power connector | 20+4 pin ATX |
|---|---|
| AC input voltage | 200 – 240 V |
| ATX version | 2.3 |
| Fan diameter | 12 cm |
| Max output current (+5V) | 16 A |
| Combined power (-12V) | 3.6 W |
| Number of fans | 1 fan(s) |
| Depth | 150 mm |
| Power protection features | Short circuit |
| Harmonized System (HS) code | 84733020 |
| Efficiency | 85% |
| Power factor | 0.9 |
| Sustainability certificates | RoHS |
| Power protection features | Overload |
| Combined power (+5Vsb) | 12.5 W |
| Input current | 3.5 A |
| Power protection features | Over voltage |
| On/off switch | Yes |
| AC input frequency | 47 – 63 Hz |
| Manual | Yes |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Height | 87 mm |
| Package type | Box |
| Max output current (-12V) | 0.3 A |
| Number of SATA power connectors | 5 |
| Combined power (+3.3V) | 100 W |
| Power Factor Correction (PFC) type | Active |
| PCI Express power connectors (6+2 pin) | 1 |
| Cooling type | Active |
| Width | 140 mm |
| Combined power (+5V) | 100 W |
| Max output current (+12V1) | 34 A |
| Power protection features | Under voltage |
| Combined power (+12V) | 408 W |
| Purpose | PC |
| Max output current (+5Vsb) | 2.5 A |
| Product colour | Silver |
| Max output current (+3.3V) | 17 A |
| Power supply unit (PSU) form factor | PS/2 |
| Fan location | Top |
| Total power | 450 W |
| Warranty card | Yes |
