Description

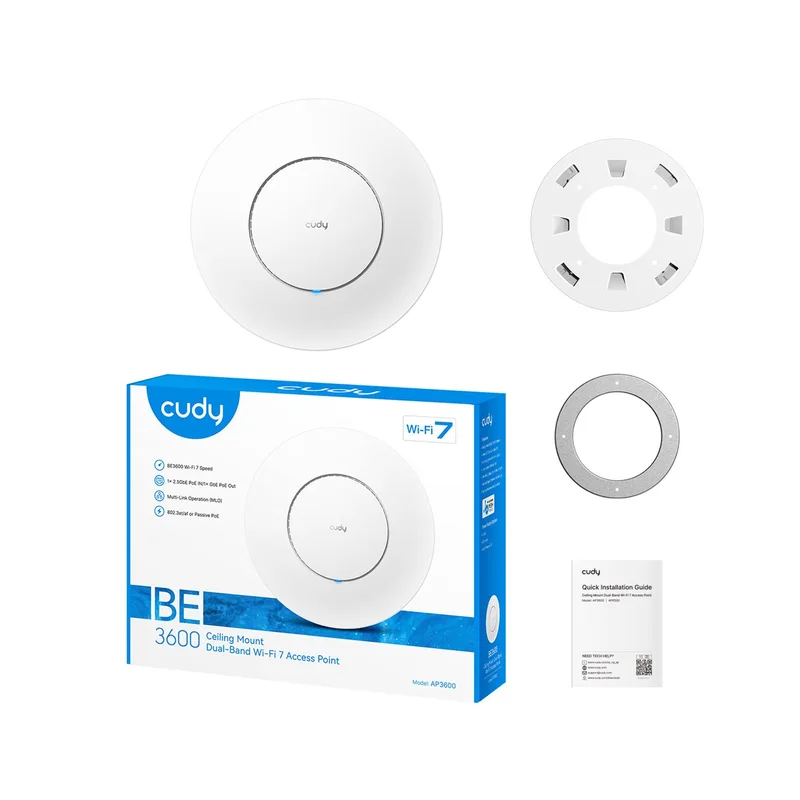

Cudy AP3600 wireless access point 3570 Mbit/s White Power over Ethernet (PoE)
Technical specifications
| Bundled software | Cudy Software |
|---|---|
| Networking standards | IEEE 802.11ac |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Networking standards | IEEE 802.3at |
| Networking standards | IEEE 802.11be |
| Security algorithms | WPA2 |
| Networking standards | IEEE 802.3af |
| Power over Ethernet (PoE) | Yes |
| Package depth | 238 mm |
| Reset button | Yes |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA |
| Mounting kit | Yes |
| 5 GHz | Yes |
| AC adapter included | No |
| Operating temperature (T-T) | 0 – 40 °C |
| DC-in jack | Yes |
| Ethernet LAN data rates | 100 |
| Package width | 310 mm |
| Ethernet LAN data rates | 2500 Mbit/s |
| Ethernet LAN data rates | 10 |
| Ethernet LAN (RJ-45) ports | 2 |
| Weight | 435 g |
| Package weight | 843 g |
| 2.4 GHz | Yes |
| Bluetooth | No |
| Operating relative humidity (H-H) | 10 – 90% |
| Quick start guide | Yes |
| MIMO | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| Antenna gain level (max) | 5.5 dBi |
| LED indicators | System |
| Antenna type | Internal |
| Processor frequency | 2000 MHz |
| Ethernet LAN data rates | 1000 Mbit/s |
| Product colour | White |
| Maximum data transfer rate | 3570 Mbit/s |
| Storage relative humidity (H-H) | 5 – 95% |
| Security algorithms | WPA3 |
| Power consumption (max) | 10 W |
| Placement | Ceiling, Wall |
| Height | 57.1 mm |
| Depth | 231.9 mm |
| Products per shipping (inner) case | 10 pc(s) |
| Maximum data transfer rate (2.4 GHz) | 688 Mbit/s |
| Number of SSID supported | 8 |
| VLAN support | Yes |
| Package height | 73 mm |
| Flash memory | 128 MB |
| DHCP server | Yes |
| DC voltage range | 48-57 V |
| IGMP snooping | Yes |
| Width | 231.9 mm |
| Cables included | LAN (RJ-45) |
| Built-in processor | Yes |
| Compliance certificates | Federal Communications Commission (FCC) |
| Cloud-managed | Yes |
| Output voltage | 12 V |
| Antennas quantity | 4 |
| Compliance certificates | CE |
| Syslog | Yes |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Internal memory | 512 MB |
| MIMO type | Multi User MIMO |
| PoE adapter included | No |
| Guest access | Yes |
| Maximum data transfer rate (5 GHz) | 2882 Mbit/s |
| Output current | 1 A |
| 6 GHz | No |
