Description

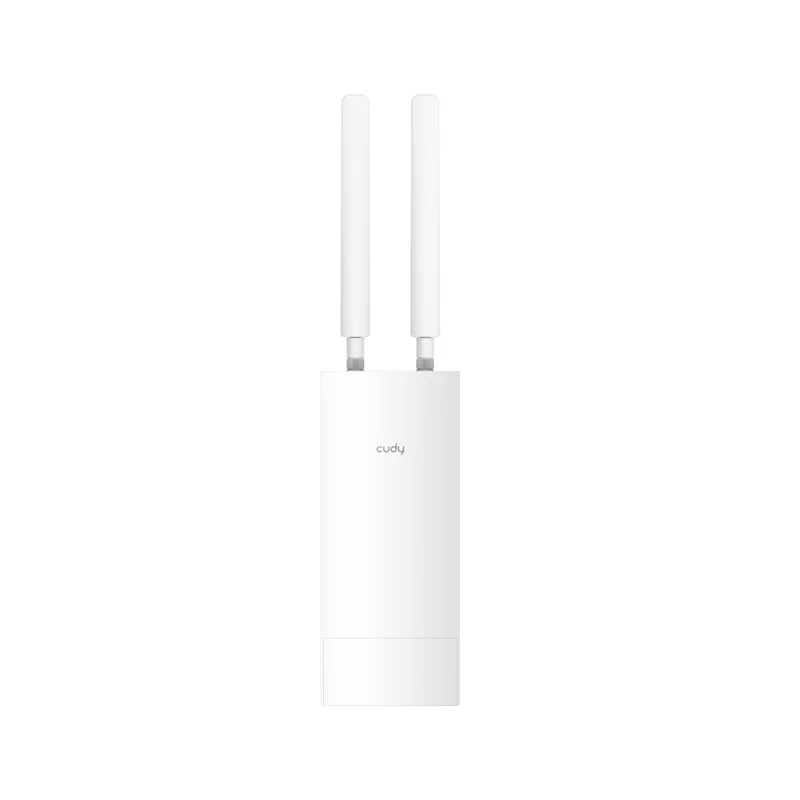

Cudy Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point
Technical specifications
| Bundled software | Cudy Software |
|---|---|
| DHCP client | Yes |
| 2.4 GHz | Yes |
| Mounting kit | Yes |
| 5 GHz | Yes |
| Package height | 86 mm |
| Power consumption (max) | 18 W |
| Networking standards | IEEE 802.3at |
| Security algorithms | WPA2 |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA |
| Quick start guide | Yes |
| Security algorithms | WPA3 |
| Weight | 455 g |
| Ethernet LAN data rates | 2500 Mbit/s |
| Spread spectrum method | OFDMA |
| MIMO | Yes |
| Quality of Service (QoS) support | Yes |
| Package depth | 107 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Web-based management | Yes |
| MAC address filtering | Yes |
| AC adapter included | No |
| Maximum data transfer rate | 2976 Mbit/s |
| Power over Ethernet (PoE) | Yes |
| WAN connection | Ethernet (RJ-45) |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Reset button | Yes |
| Placement | Pole, Wall |
| Cables included | UTP |
| Package weight | 856 g |
| Networking standards | IEEE 802.11b |
| Package width | 324 mm |
| Antenna type | Internal & external |
| Product colour | White |
| Networking standards | IEEE 802.11ac |
| Ethernet LAN data rates | 10 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Antenna connector type | RP-SMA |
| Ethernet LAN data rates | 100 |
| Power consumption (typical) | 5 W |
| Warnings | Do not expose to prolonged moisture. |
| Warnings | Electronic products should be recycled at specialist electronic waste collection facilities. |
| Warnings | Avoid direct contact with water. |
| Antenna features | Detachable antenna |
| Depth | 100 mm |
| Flash memory | 128 MB |
| Power over Ethernet (PoE) type supported | Active PoE |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Width | 240 mm |
| Height | 53.7 mm |
| International Protection (IP) code | IP65 |
| Antennas quantity | 2 |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Chipset | MT7981, IPQ5018 |
| MIMO type | Multi User MIMO |
| DC voltage range | 48-57 V |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| PoE adapter included | Yes |
| Number of SSID supported | 8 |
| Products per shipping (inner) case | 20 pc(s) |
| IGMP snooping | Yes |
| 6 GHz | No |
| IP address filtering | Yes |
| Syslog | Yes |
| Virtual LAN features | Tagged VLAN |
| Guest access | Yes |
| VLAN support | Yes |
| Maximum outdoor range | 320 m |
| WPS push button | Yes |
