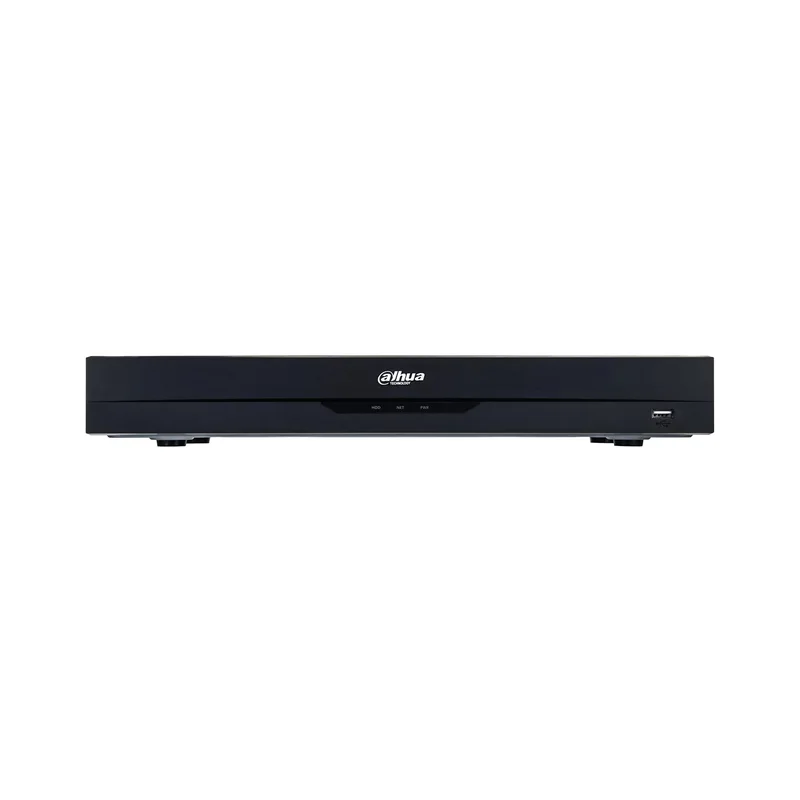

DAHUA NVR4232-EI IP Video Recorder
Technical specifications
| Certification | CE-EMC: EN 55032:2015+A1:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021; EN 55035:2017+A11:2020; EN 50130-4:2011+A1:2014 CE-LVD: EN 62368-1:2014 |
|---|---|
| Supported resolutions | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Warnings | The product must be disposed of properly in accordance with local regulations for the disposal of electronics. |
| Warnings | The appliance should be installed by a qualified professional. |
| Warnings | Do not expose the device to moisture or extreme temperatures. |
| Rated current | 4 A |
| DC input voltage | 12 V |
| Number of HDDs supported | 2 |
| Maximum storage capacity | 16 TB |
| Audio formats supported | G.711 A-law |
| Video input channels | 32 channels |
| Audio formats supported | PCM |
| Audio RCA outputs | 1 |
| Audio formats supported | G.711 μ-law |
| Audio formats supported | G.726 |
| Alarm input channels | 4 |
| VGA (D-Sub) output ports | 1 |
| Audio RCA inputs | 1 |
| Alarm output channels | 2 |
| Depth | 284 mm |
| Ethernet LAN (RJ-45) ports | 1 |
| Multi-screen | Yes |
| HDMI ports quantity | 1 |
| Width | 375 mm |
| Height | 53 mm |
| Package weight | 2.76 kg |
| Ethernet LAN data rates | 100 Mbit/s |
| USB 2.0 ports quantity | 2 |
| Power consumption (typical) | 10 W |
| Package depth | 141 mm |
| Video formats supported | H.264+ |
| Package width | 433 mm |
| Ethernet LAN data rates | 10 |
| Maximum resolution | 3840 x 2160 pixels |
| Video formats supported | H.265+ |
| Internal SATA ports quantity | 2 |
| Video formats supported | H.265 |
| Ethernet LAN data rates | 1000 Mbit/s |
| HDD interface | SATA |
| Video formats supported | H.264 |
| Weight | 1.51 kg |
| Package height | 366 mm |
