Description

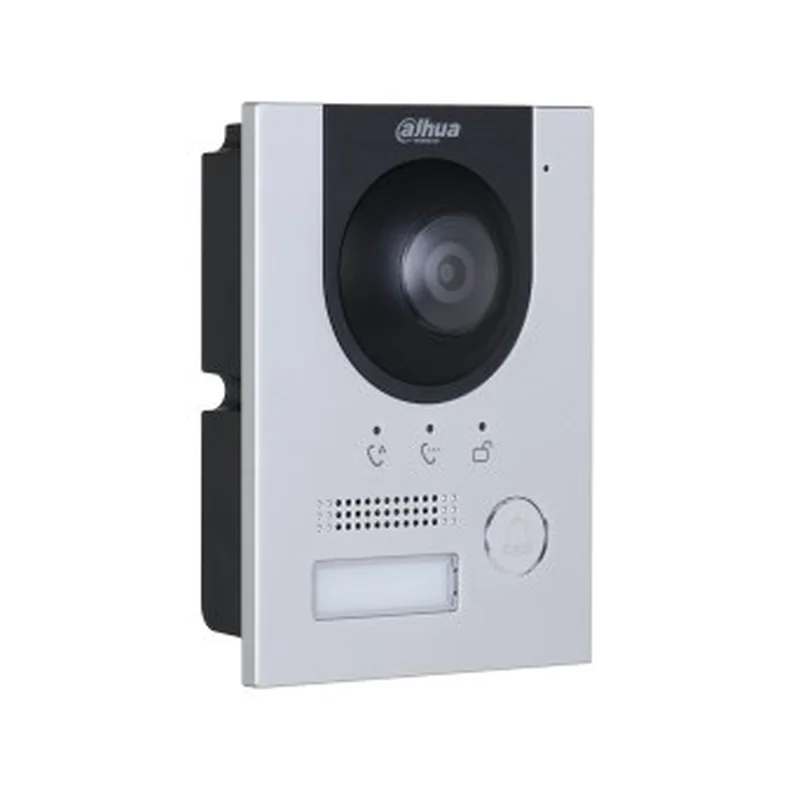

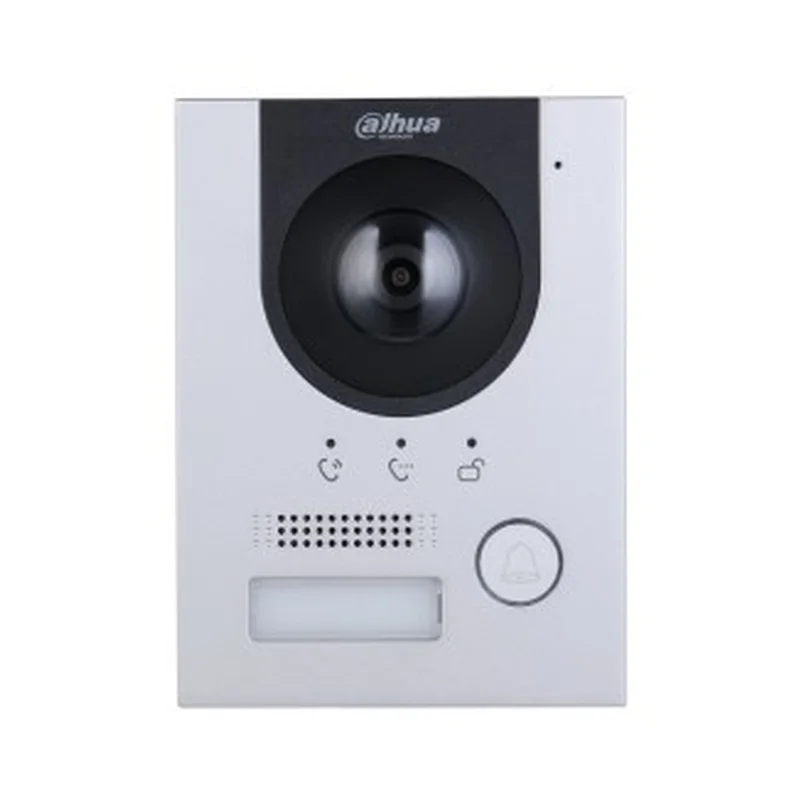

Dahua Technology VTO2202F-P-S3 video intercom system 2 MP Silver
Technical specifications
| Certification | CE, FCC, UL |
|---|---|
| Supported network protocols | IPv4; RTSP; UDP; DNS; P2P; UPnP; RTP; TCP; SIP |
| Maximum memory card size | 256 GB |
| Sensor type | CMOS |
| IK code | IK07 |
| Depth | 28.5 mm |
| Field of view (FOV) angle | 176.7° |
| Outdoor unit included | Yes |
| Optical sensor size | 25.4 / 2.9 mm (1 / 2.9") |
| Placement supported | Vertical |
| Night vision | Yes |
| LED type | IR |
| Video formats supported | H.265 |
| Streaming capability | Yes |
| Power consumption (standby) | 4 W |
| Number of speakers | 1 |
| Outdoor unit power type | DC/PoE |
| Voice codecs | G.711a |
| Wide Dynamic Range (WDR) | Yes |
| Housing material | Aluminium |
| Control type | Buttons |
| Voice codecs | PCM |
| Indoor unit included | No |
| Door station control | Yes |
| Voice codecs | G.711u |
| Megapixel (approx.) | 2 MP |
| Video formats supported | H.264 |
| Maximum frame rate | 25 fps |
| Built-in speaker(s) | Yes |
| Speakerphone | Yes |
| Ethernet interface type | Fast Ethernet |
| Wall mountable | Yes |
| Height | 130 mm |
| Operating system installed | Embedded LINUX |
| Operating temperature (T-T) | -30 – 60 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Proper use | Outdoor |
| Cabling technology | 10/100Base-T(X) |
| Package weight | 480 g |
| Operating relative humidity (H-H) | 10 – 90% |
| Connectivity technology | Wired |
| Compatible memory cards | MicroSD (TransFlash) |
| Viewing angle, vertical | 87.1° |
| Ethernet LAN data rates | 10 |
| Ethernet LAN data rates | 100 |
| Power over Ethernet (PoE) | Yes |
| Width | 96 mm |
| Built-in microphone | Yes |
| Storage temperature (T-T) | 0 – 40 °C |
| Product colour | Silver |
| Web-based management | Yes |
| International Protection (IP) code | IP65 |
| Viewing angle, horizontal | 168.6° |
| Quantity per pack | 1 pc(s) |
| Power consumption (typical) | 5 W |
| RS-485 ports (transmitter) | 1 |
