Description

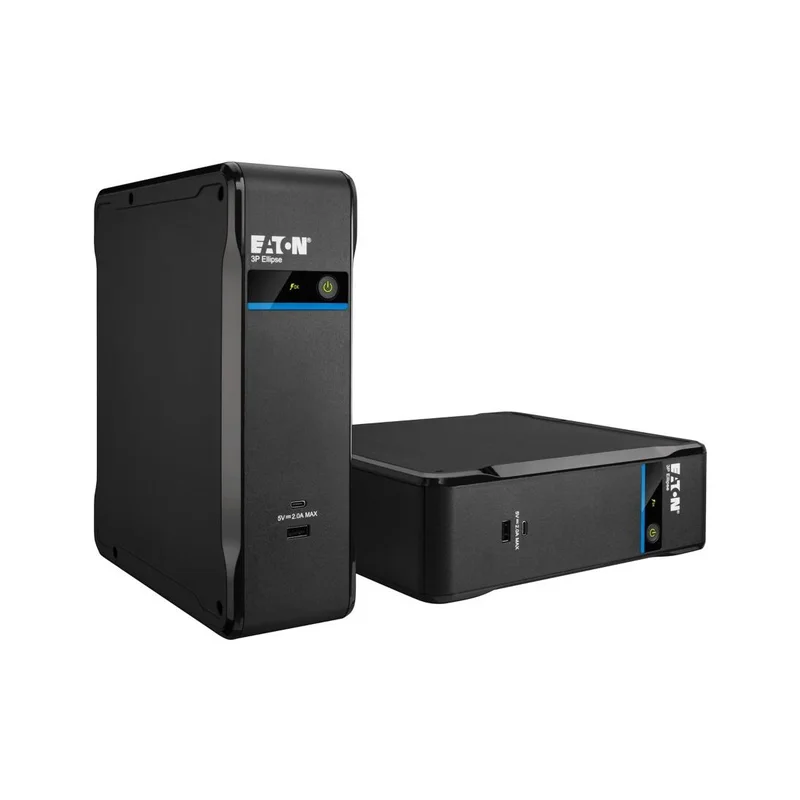

Eaton 3P700UI uninterruptible power supply (UPS) Standby (Offline) 0.7 kVA 420 W 4 AC outlet(s)
Technical specifications
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
|---|---|
| USB port type | USB Type A/USB Type-C |
| Output power factor | 0.6 |
| Auto shut-off | Yes |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| Compliance certificates | WEEE |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Efficiency | 97% |
| Compliance certificates | CB |
| UPS topology | Standby (Offline) |
| AC outlet types | C3 coupler |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Number of output phases | 1 |
| Waveform | Stepwise |
| Relative humidity | 0 – 95% |
| Output frequency | 50/60 Hz |
| Efficiency (ECO mode) | 97% |
| Number of input phases | 1 |
| Width | 81 mm |
| Input frequency | 46/70 Hz |
| AC outlets quantity | 4 AC outlet(s) |
| USB port | Yes |
| Surge protection | Yes |
| Power consumption (average operating) | 13 W |
| Battery voltage | 12 V |
| Display type | LED |
| Height | 263 mm |
| Form factor | Tower |
| Cables included | USB cable |
| Battery capacity | 7 Ah |
| Package type | Box |
| Operating temperature (T-T) | 0 – 40 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Input connection type | C14 |
| Depth | 235 mm |
| Noise level | 25 dB |
| Output power capacity | 0.7 kVA |
| Weight | 3.9 kg |
| Product colour | Black |
| Quick installation guide | Yes |
| Output power | 420 W |
| Nominal input voltage | 220-240 V |
| Input operation voltage (max) | 284 V |
| USB 2.0 ports quantity | 2 |
| Input operation voltage (min) | 161 V |
