Description

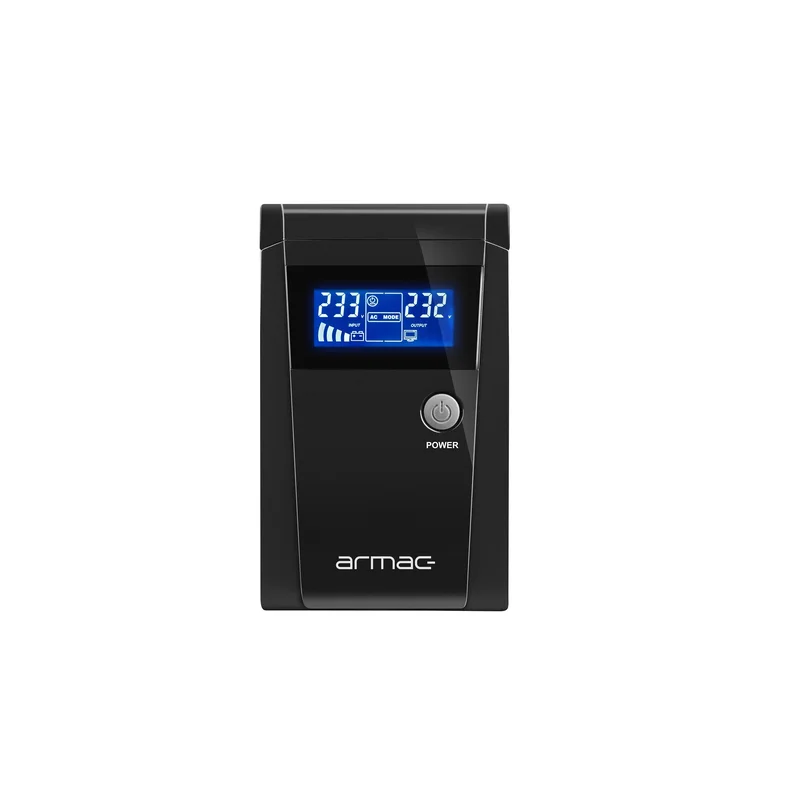

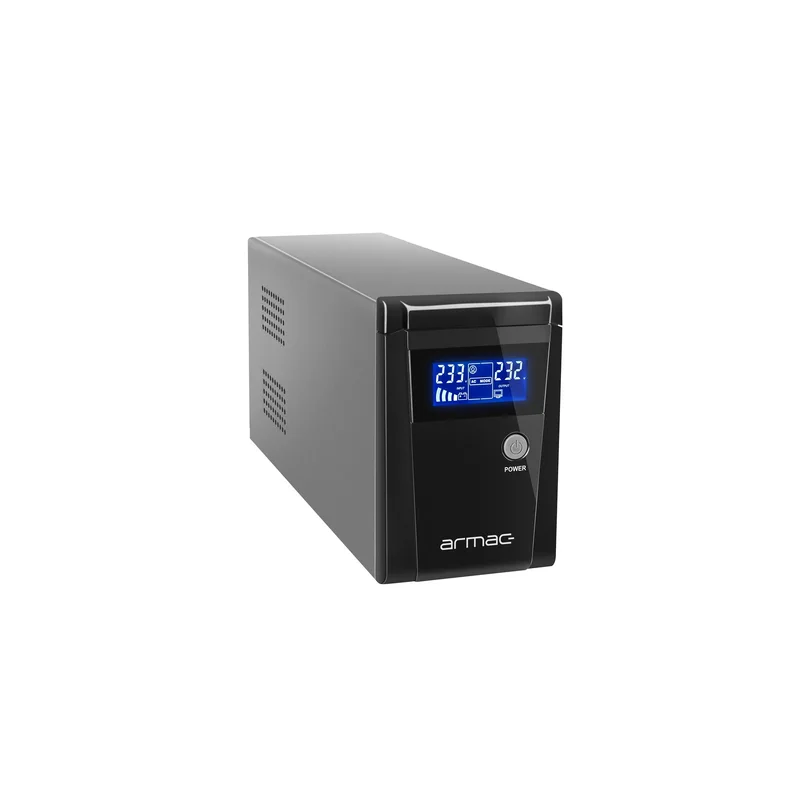

Emergency power supply Armac UPS OFFICE LINE-INTERACTIVE O/650E/LCD
Technical specifications
| Form factor | Tower |
|---|---|
| Waveform | Sine |
| Output operation voltage (min) | 255 V |
| Input frequency | 45 – 65 Hz |
| Power protection features | Overvoltage protection |
| Power protection features | Short circuit |
| Width | 85 mm |
| Battery voltage | 12 V |
| Power protection features | Battery discharge |
| Automatic Voltage Regulation (AVR) | Yes |
| Battery technology | Maintenance Free, Lead Acid (AGM) |
| Built-in display | LCD |
| Power protection features | Over power |
| Power protection features | Input fuse |
| Height | 141 mm |
| Weight | 4.6 g |
| Depth | 305 mm |
| UPS topology | Line-Interactive |
| Noise level | 45 dB |
| USB port | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Number of batteries supported | 1 |
| Battery capacity | 7 Ah |
| Output operation voltage (max) | 195 V |
| USB cable included | No |
| Typical backup time at full load | 3 min |
| Response time | 2 – 6 ms |
| AC outlet types | Type E |
| Automatic battery test | Yes |
| Product colour | Black |
| Auto-restart | Yes |
| AC outlets quantity | 2 AC outlet(s) |
| Typical backup time at half load | 20 min |
| Battery recharge time (90%) | 6 h |
| Output voltage | 230 V |
| Cold start | Yes |
| RJ-45 ports quantity | 2 |
| Output frequency | 50 Hz |
| Operating temperature (T-T) | 0 – 45 °C |
| Output power capacity | 650 VA |
| Output power | 390 W |
| Input operation voltage (min) | 145 V |
| Input operation voltage (max) | 290 V |
