Description

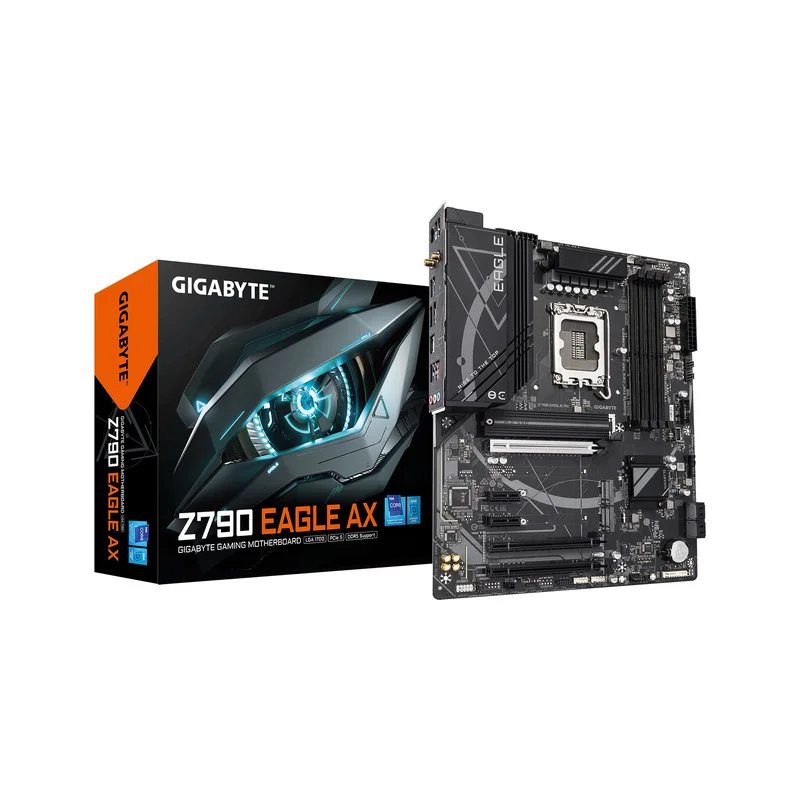

GIGABYTE Z790 EAGLE AX Motherboard – Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2
Technical specifications
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
|---|---|
| Package width | 335 mm |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Supported processor sockets | LGA 1700 |
| Package height | 80 mm |
| BIOS type | UEFI AMI |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 1 |
| USB connector type | USB Type-A |
| USB connector type | USB Type-C |
| Number of M.2 (M) slots | 3 |
| Clear CMOS button | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Windows operating systems supported | Windows 11 x64 |
| Cables included | SATA |
| Windows operating systems supported | Windows 10 x64 |
| RAID levels | 1 |
| RAID levels | 10 |
| EPS power connector (8-pin) | Yes |
| Memory channels | Dual-channel |
| Number of HDDs supported | 4 |
| RAID levels | 5 |
| Width | 305 mm |
| Clear CMOS jumper | Yes |
| Number of EATX power connectors | 2 |
| Antenna included | Yes |
| CPU fan connector | Yes |
| Package depth | 270 mm |
| TPM connector | Yes |
| Front panel connector | Yes |
| RGB LED pin header | Yes |
| RAID levels | 0 |
| Battery type | CR2032 |
| Maximum internal memory supported by processor | 192 GB |
| Desktop Management Interface (DMI) version | 2.7 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Lithium weight per battery | 0.07 g |
| Number of storage drives supported | 7 |
| ECC сompatibility | ECC & Non-ECC |
| USB 3.2 Gen 2×2 Type-C ports quantity | 1 |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Depth | 244 mm |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| HDMI version | 2.1 |
| Warranty period | 3 year(s) |
| Maximum number of SMP processors | 1 |
| On-board graphics card | No |
| Products per shipping (inner) case | 1 pc(s) |
| Microphone in | Yes |
| Supported memory types | DDR5-SDRAM |
| PS/2 ports quantity | 1 |
| Compatible processor series | Intel® Core™ i5 |
| Compatible processor series | Intel® Celeron® |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3 |
| Compatible processor series | Intel® Core™ i7 |
| Compatible processor series | Intel® Core™ i9 |
| Compatible processor series | Intel® Pentium® Gold |
| Number of battery cells | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Supported memory clock speed (max) | 7600 MHz |
| Bluetooth version | 5.3 |
| Total number of SATA connectors | 4 |
| Headphone outputs | 1 |
| Height | 35 mm |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Wi-Fi | Yes |
| Battery weight | 3 g |
| Warnings | Do not dispose of the motherboard in the ordinary rubbish bin; the product requires special disposal. |
| Memory slots type | DIMM |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Batteries included | Yes |
| Number of memory slots | 4 |
| Warnings | Avoid direct contact with electronics to prevent electrostatic damage. |
| Warnings | Before starting any maintenance or installation, disconnect the product from the power supply. |
| WiFi-AP antenna jack | 2 |
| Processor socket | LGA 1700 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Maximum resolution | 4096 x 2304 pixels |
| DisplayPort version | 1.2 |
| Supported memory clock speeds | 6800 |
| Supported memory clock speeds | 6200 |
| RAID support | Yes |
| Supported memory clock speeds | 4800 |
| Supported memory clock speeds | 7000 |
| Supported memory clock speeds | 6600 |
| Supported memory clock speeds | 5200 |
| Maximum internal memory | 192 GB |
| Supported memory clock speeds | 6400 MHz |
| Supported memory clock speeds | 7400 |
| Supported memory clock speeds | 7600 |
| S/PDIF out port | Yes |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 5600 |
| Supported memory clock speeds | 7200 |
| DisplayPorts quantity | 1 |
| Supported memory clock speeds | 5800 |
| Supported memory clock speeds | 5400 |
| PC health monitoring | Voltage |
| Audio chip | Realtek ALC897 |
| Supported memory module capacities | 8GB |
| Supported memory module capacities | 32GB |
| Motherboard chipset family | Intel |
| Supported memory module capacities | 12GB |
| PC health monitoring | Water cooling |
| HDCP | Yes |
| Supported memory module capacities | 1GB |
| Supported memory module capacities | 48GB |
| Supported storage drive types | HDD & SSD |
| PC health monitoring | Fan |
| Country of origin | China |
| Motherboard form factor | ATX |
| Supported memory module capacities | 16GB |
| PC health monitoring | Temperature |
| Product colour | Bronze |
| Supported memory module capacities | 2GB |
| Supported memory module capacities | 4GB |
| Thunderbolt headers | 2 |
| Number of SATA III connectors | 4 |
| Supported memory clock speeds | 6000 |
| Bluetooth | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| Motherboard chipset | Intel Z790 Express |
| Audio output channels | 7.1 channels |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Unbuffered memory | Yes |
| USB 2.0 connectors | 2 |
| Package weight | 1.81 kg |
| Front panel audio connector | Yes |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| Power source type | ATX |
| ATX Power connector (24-pin) | Yes |
| Parallel processing technology support | Not supported |
