Description

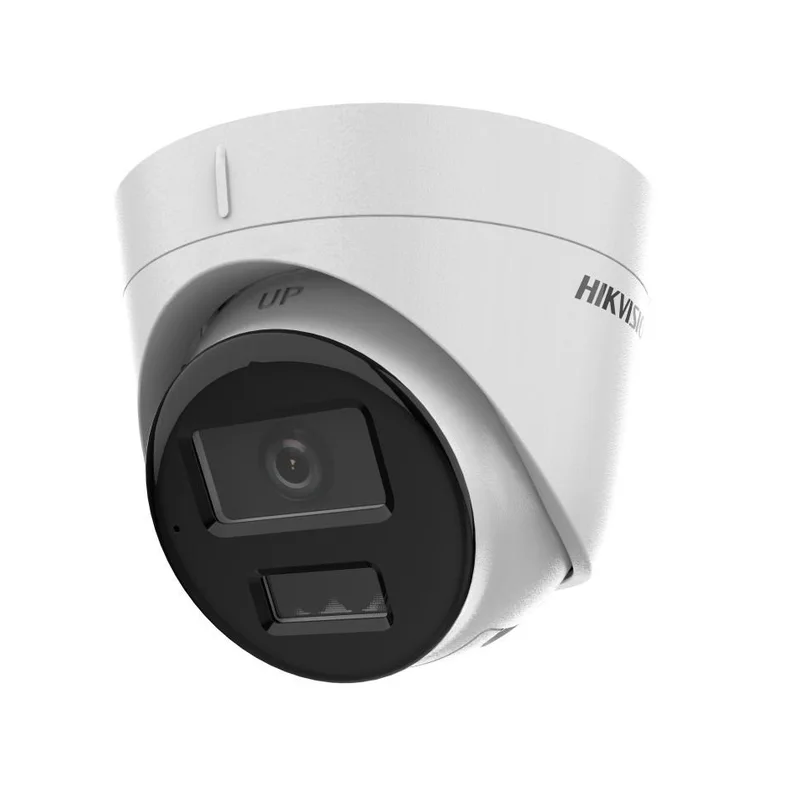

HIKVISION IP CAMERA DS-2CD1341G2-LIU 2.8MM EN
Technical specifications
| Sustainability certificates | RoHS |
|---|---|
| Lens viewing angle, horizontal | 98° |
| Lens viewing angle, vertical | 54° |
| Sustainability certificates | WEEE |
| Lens viewing angle, diagonal | 114° |
| PoE standard | IEEE 802.3af |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
| Warnings | Avoid direct contact with water to prevent electrical damage. |
| Warnings | Ensure that the product is properly installed and protected against falling. |
| Heartbeat | Yes |
| Package weight | 560 g |
| Mirror | Yes |
| Sample rate | 8 kHz / 16 kHz |
| Quality of Service (QoS) support | Yes |
| Package depth | 150 mm |
| Noise filter | Yes |
| Storage temperature (T-T) | -30 – 60 °C |
| Built-in microphone | Yes |
| Night vision | Yes |
| Highlight Compensation (HLC) | Yes |
| Client interoperability | ONVIF (Profile S / (Profile T / (Profile G), ISAPI, SDK |
| Package width | 150 mm |
| Maximum resolution | 2560 x 1440 pixels |
| Form factor | Dome |
| Progressive scan | Yes |
| Ethernet LAN | Yes |
| Angle of rotation | 360° |
| Recognize distance (wide) | 12 m |
| Video compression formats | H.265+ |
| Detect distance (wide) | 63 m |
| Sensor type | CMOS |
| Power management | DC 12 V |
| Package height | 141 mm |
| Signal-to-Noise Ratio (SNR) | 52 dB |
| Number of lenses | 1 |
| Video compression formats | M-JPEG |
| Weight | 340 g |
| Video compression formats | H.265 |
| Maximum aperture number | 1.6 |
| Observe distance (wide) | 25 m |
| Video compression formats | H.264+ |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | 120 dB |
| Length | 89 mm |
| Number of cameras | 1 |
| International Protection (IP) code | IP67 |
| DC output current | 0.4 A |
| Storage relative humidity (H-H) | 0 – 95% |
| Operating temperature (T-T) | -30 – 60 °C |
| Ethernet LAN (RJ-45) ports | 1 |
| Housing material | Plastic |
| Type | IP security camera |
| Password protection | Yes |
| Operating relative humidity (H-H) | 0 – 95% |
| Video compression formats | H.264 |
| Housing material | Metal |
| LED type | IR/White |
| Identify distance (wide) | 6 m |
| Minimum illumination | 0.005 lx |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Region of Interest (ROI) encoding | Yes |
| Video motion detection | Yes |
| Maximum power | 5 W |
| Camera shutter speed | 1/3 – 1/100000 s |
| Audio codecs | G.711a |
| Infra-red wavelength | 850 nm |
| Number of users | 32 user(s) |
| Total megapixels | 4 MP |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Connectivity technology | Wired |
| Product colour | White |
| Tilt angle range | 0 – 75° |
| Pan range | 0 – 360° |
| Power over Ethernet (PoE) | Yes |
| Web-based management | Yes |
