Description

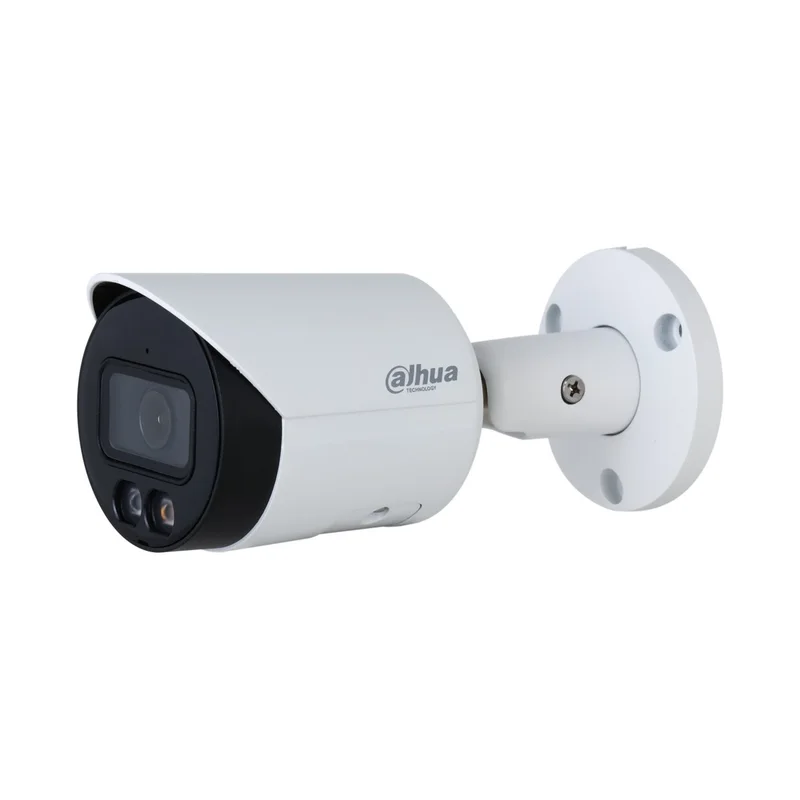

IP CAMERA DAHUA IPC-HFW2849S-S-IL-0280B
Technical specifications
| Certification | LVD: EN62368-1; EMC: Electromagnetic Compatibility Directive 2014/30/EU; FCC: 47 CFR FCC Part 15, Subpart B 2023-02-22 |
|---|---|
| Lens viewing angle, vertical | 58° |
| Lens viewing angle, diagonal | 132° |
| Lens viewing angle, horizontal | 111° |
| Number of lenses | 1 |
| Lens type | Fixed focal length lens |
| Warnings | Avoid direct contact with water to prevent electrical damage. |
| Warnings | Ensure that the product is properly installed and protected against falling. |
| Warnings | The product contains electronic components; do not dispose of with the normal household waste. |
| Height | 70 mm |
| Video compression formats | H.264H |
| Video compression formats | H.264+ |
| Video compression formats | H.264B |
| Progressive scan | Yes |
| Video compression formats | H.264 |
| Bluetooth | No |
| Bit rate | H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps |
| Maximum aperture number | 1.6 |
| ROM capacity | 128 MB |
| Video compression formats | H.265+ |
| Video compression formats | M-JPEG |
| Ethernet interface type | Fast Ethernet |
| Video compression formats | H.265 |
| Adjustment shutter speed | Auto/Manual |
| Mobile operating systems supported | iOS |
| Pan range | 0 – 360° |
| Focal length range | 2.8 mm |
| Number of users | 20 user(s) |
| Connectivity technology | Wired |
| Noise reduction | Yes |
| Mobile operating systems supported | Android |
| Supported graphics resolutions | 704 x 576 |
| Supported graphics resolutions | 1280 x 960 |
| Supported graphics resolutions | 704 x 480 |
| Supported graphics resolutions | 2688 x 1520 |
| Video streaming | Yes |
| Supported graphics resolutions | 3840 x 2160 |
| Ethernet LAN | Yes |
| Number of cameras | 1 |
| Back Light Compensation (BLC) | Yes |
| Built-in HDD | No |
| Audio formats supported | G.711Mu |
| Minimum illumination | 0.008 lx |
| Supported graphics resolutions | 352 x 240 |
| Supported graphics resolutions | 2304 x 1296 |
| Supported graphics resolutions | 2048 x 1536 (QXGA) |
| Supported graphics resolutions | 3072 x 1728 |
| Width | 70 mm |
| Video motion detection | Yes |
| Weight | 470 g |
| Supported graphics resolutions | 3072 x 2048 |
| Audio formats supported | G.726 |
| Audio formats supported | G.711a |
| DC output voltage | 12 |
| Depth | 166.2 mm |
| Audio formats supported | PCM |
| Highlight Compensation (HLC) | Yes |
| Networking standards | IEEE 802.3af |
| Wide Dynamic Range (WDR) | 120 dB |
| White balance | Outdoor |
| Closest focusing distance | 1.5 m |
| Operating relative humidity (H-H) | 0 – 95% |
| Supported graphics resolutions | 1280 x 720 |
| Supported graphics resolutions | 2880 x 1620 |
| Supported graphics resolutions | 352 x 288 |
| Region of Interest (ROI) encoding | Yes |
| White balance | Natural |
| Type | IP security camera |
| Number of illumination LEDs | 2 |
| Gain control type | Auto/Manual |
| Wi-Fi | No |
| Total megapixels | 8 MP |
| Power consumption (Power over Ethernet (PoE)) | 5.9 W |
| Maximum resolution | 3840 x 2160 pixels |
| Camera shutter speed | 1/3 – 1/100000 s |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Web-based management | Yes |
| Night vision distance | 30 m |
| Form factor | Tube/dome |
| Supported graphics resolutions | 1920 × 1080 |
| LED type | IR / White light LED |
| Operating temperature (T-T) | -40 – 55 °C |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| White balance | Auto |
| Noise reduction technology | 3D noise reduction |
| Night vision | Yes |
| Built-in microphone | Yes |
| Mounting type | Ceiling/wall |
| Storage temperature (T-T) | -40 – 55 °C |
| White balance | Street lamp |
| Product colour | White |
| Power source type | DC, PoE |
| Housing material | Metal |
| Web browser | Yes |
| Placement supported | External / Internal |
| Internal memory | 256 MB |
| Power consumption (max) | 5 W |
| White balance | Manual |
| Quality of Service (QoS) support | Yes |
| Sensor type | CMOS |
| Number of sensors | 1 |
| Tilt angle range | 0 – 90° |
| International Protection (IP) code | IP67 |
| Frame rate | 30 fps |
| Power consumption (typical) | 2.7 W |
