Description

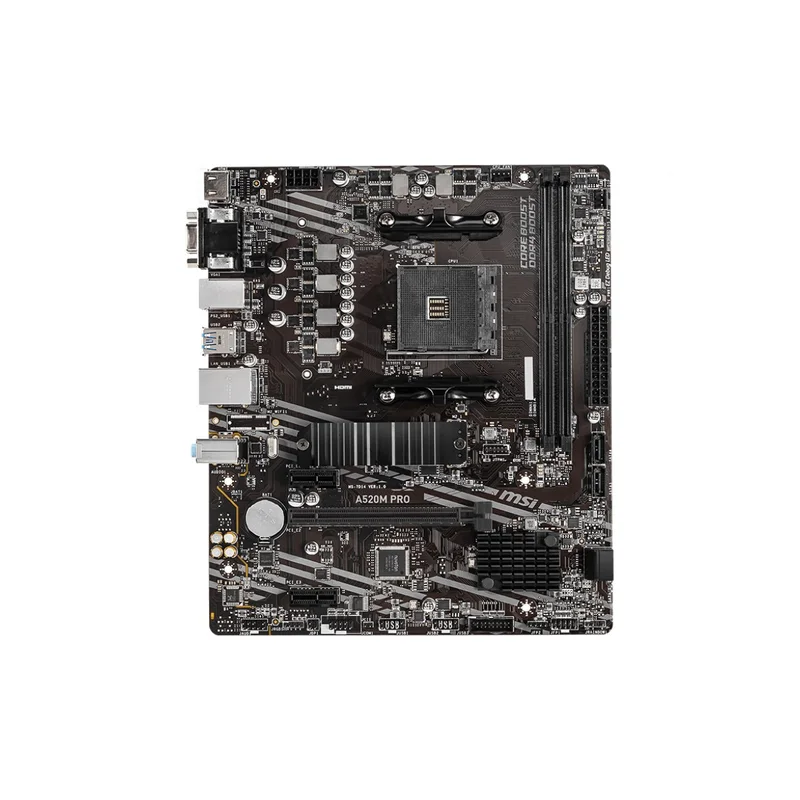

MSI A520M PRO Socket AM4 micro ATX
Technical specifications
| Processor manufacturer | AMD |
|---|---|
| ATX Power connector (24-pin) | Yes |
| LAN controller | Realtek RTL8111H |
| Compatible processor series | 3rd Generation AMD Ryzen™ 9 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| RAID levels | 10 |
| RAID levels | 0 |
| Total number of SATA connectors | 4 |
| RAID levels | 1 |
| Supported memory clock speeds | 2667 |
| Supported memory clock speeds | 3733 |
| Supported memory clock speeds | 4400 |
| Supported memory clock speeds | 3066 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2933 |
| Supported memory clock speeds | 3600 |
| Audio chip | Realtek ALC892 |
| Front panel connector | Yes |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 1866 |
| Number of memory slots | 2 |
| Supported memory clock speeds | 2400 |
| Supported memory clock speeds | 2800 |
| USB 2.0 ports quantity | 2 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 7 |
| Supported memory clock speeds | 3200 |
| Supported memory clock speeds | 4266 |
| Supported memory clock speeds | 4466 |
| Compatible processor series | 3rd Generation AMD Ryzen 5 |
| Number of SATA III connectors | 4 |
| Supported memory clock speeds | 3000 |
| VGA (D-Sub) ports quantity | 1 |
| Supported memory clock speeds | 3466 |
| Supported memory clock speeds | 4133 |
| Supported memory clock speeds | 4000 |
| Compatible processor series | 3rd Generation AMD Ryzen™ 3 |
| CPU fan connector | Yes |
| Supported memory clock speeds | 3866 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Ethernet interface type | Gigabit Ethernet |
| Audio output channels | 7.1 channels |
| Maximum resolution | 4096 x 2160 pixels |
| Supported storage drive interfaces | PCI Express 3.0, Serial ATA |
| Number of M.2 (M) slots | 1 |
| Front panel audio connector | Yes |
| Wi-Fi | No |
| Supported memory clock speeds | 2133 |
| Number of chassis fan connectors | 1 |
| Maximum number of SMP processors | 1 |
| Width | 244 mm |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Motherboard chipset family | AMD |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Express x16 slots | 1 |
| Chassis intrusion connector | Yes |
| HDMI ports quantity | 1 |
| Supported storage drive types | HDD & SSD |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Memory slots type | DIMM |
| DisplayPorts quantity | 1 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of mounting holes | 6 |
| Depth | 210 mm |
| USB 2.0 connectors | 2 |
| Unbuffered memory | No |
| Processor socket | Socket AM4 |
| Power source type | ATX |
