Description

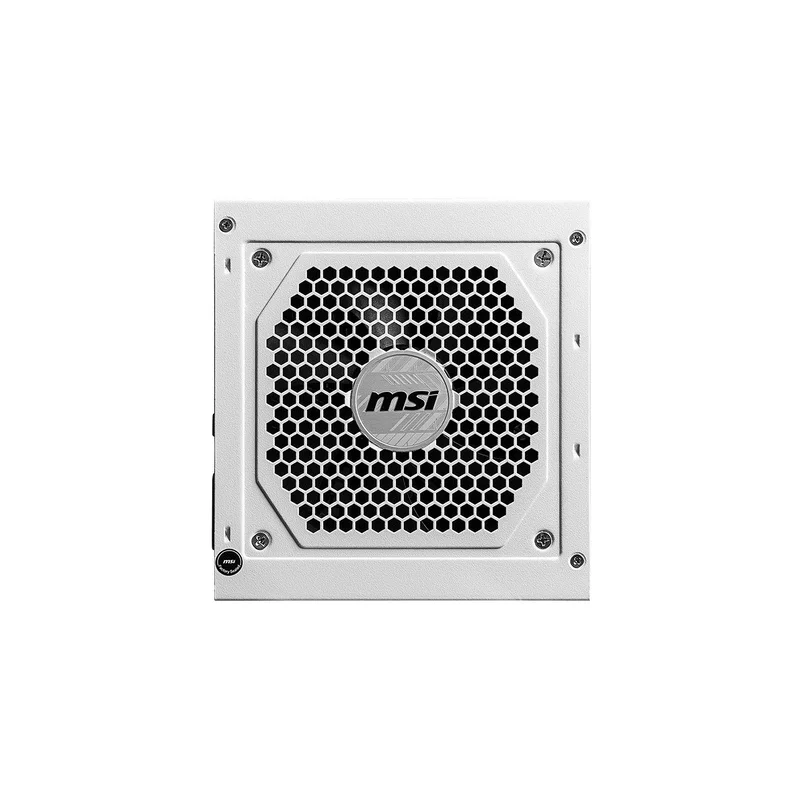

MSI MAG A850GL PCIE5 WHITE power supply unit 850 W 20+4 pin ATX ATX
Technical specifications
| Warnings | Do not open the case – risk of electric shock. |
|---|---|
| Power protection features | Overheating |
| Cabling type | Fully-Modular |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
| Power protection features | Short circuit |
| Power protection features | Over voltage |
| Power protection features | Over current |
| AC input voltage | 100 – 240 V |
| Product colour | White |
| 80 PLUS certification | 80 PLUS Gold |
| AC input frequency | 47 – 63 Hz |
| Width | 150 mm |
| On/off switch | Yes |
| Power protection features | Over power |
| Illumination | No |
| Cooling type | Active |
| Fan diameter | 12 cm |
| ATX Power connector (24-pin) | No |
| Total power | 850 W |
| Efficiency | 90% |
| EPS power connector (8-pin) | No |
| Depth | 140 mm |
| Height | 86 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Number of fans | 1 fan(s) |
| Purpose | PC |
| Warnings | The product is not suitable for disposal with municipal waste – dispose of in accordance with local regulations. |
| Warnings | Avoid contact of the product with water or other liquids. |
| PCI Express power connectors (6+2 pin) | 4 |
| Max output current (+5Vsb) | 2.5 A |
| Combined power (-12V) | 3.6 W |
| Number of SATA power connectors | 8 |
| Power supply unit (PSU) form factor | ATX |
| PCI Express connector | Yes |
| Motherboard power cable length | 60 cm |
| Max output current (+3.3V) | 20 A |
| Maximum input current (@110V) | 8 A |
| Max output current (+5V) | 20 A |
| ATX version | 3.1 |
| Motherboard power connector | 20+4 pin ATX |
| Max output current (+12V) | 70.5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+12V) | 846 W |
| Maximum input current (@220V) | 4 A |
| EPS power connector (4+4 pin) | Yes |
| Combined power (+5Vsb) | 12.5 W |
| ATX power connector (20+4 pin) | No |
| Combined power (+3.3V) | 110 W |
| Combined power (+5V) | 110 W |
| CPU power connector (4+4 pin) | Yes |
| Max output current (-12V) | 0.3 A |
