Description

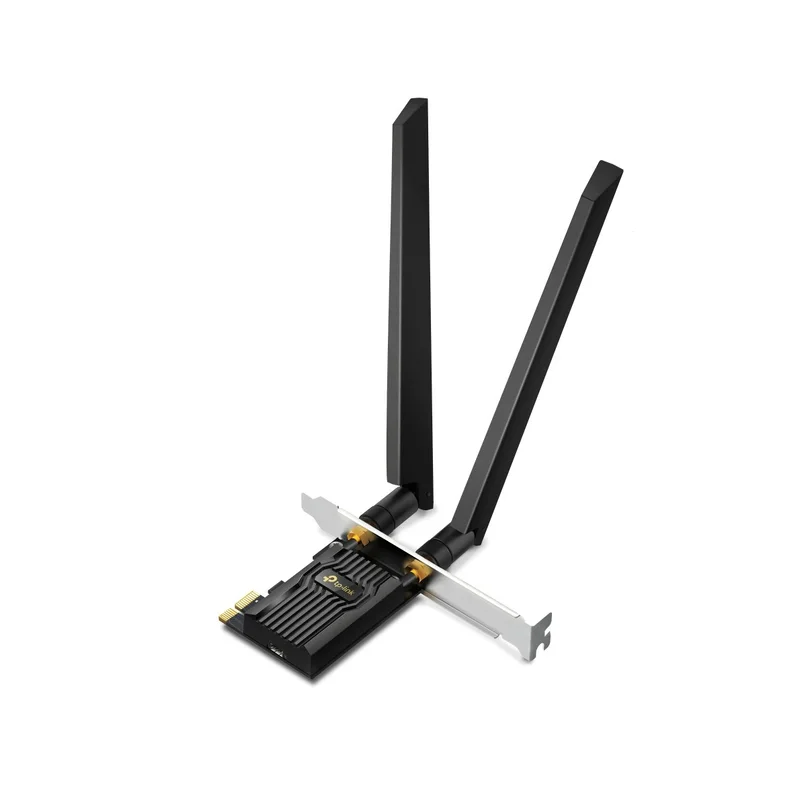

TP-Link AXE5400 Wi-Fi 6E Bluetooth 5.3 PCIe Adapter
Technical specifications
| Connectivity technology | Wireless |
|---|---|
| Security algorithms | WPA2 |
| Networking standards | IEEE 802.11a |
| Security algorithms | WEP |
| Package weight | 240 g |
| Networking standards | IEEE 802.11ac |
| Networking standards | IEEE 802.11ax |
| Security algorithms | WPA |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Windows operating systems supported | Windows 11 x64 |
| Windows operating systems supported | Windows 10 Enterprise x64 |
| Windows operating systems supported | Windows 10 x64 |
| Internal | Yes |
| Windows operating systems supported | Windows 11 |
| Security algorithms | WPA2-PSK |
| Operating temperature (T-T) | 0 – 40 °C |
| Networking standards | IEEE 802.11g |
| Networking standards | IEEE 802.11n |
| Storage relative humidity (H-H) | 5 – 95% |
| Package height | 41.5 mm |
| WLAN data transfer rates supported | 54 |
| Windows operating systems supported | Windows 10 Home x64 |
| Antenna type | 2×2 |
| Operating relative humidity (H-H) | 10 – 90% |
| Product colour | Black |
| Quick installation guide | Yes |
| WLAN data transfer rates supported | 2402 Mbit/s |
| Package depth | 152.5 mm |
| Windows operating systems supported | Windows 10 Education x64 |
| Windows operating systems supported | Windows 11 Enterprise x64 |
| Bluetooth | Yes |
| WLAN data transfer rates supported | 300 |
| Package width | 201.5 mm |
| Component for | PC |
| Security algorithms | WPA-PSK |
| Security algorithms | WPA3 |
| WLAN data transfer rates supported | 1732 |
| Networking standards | IEEE 802.11b |
| Maximum data transfer rate | 2402 Mbit/s |
| Bluetooth header cable | Yes |
| Warnings | Avoid contact with water or moisture. |
| Warnings | Keep out of the reach of children. |
| Warnings | Do not expose to high temperatures. |
| Compliance certificates | Federal Communications Commission (FCC) |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Depth | 21 mm |
| Height | 120 mm |
| Host interface | PCI Express |
| Transmitting power (CE) | 5 GHz: 15, 2.4 GHz: 16 |
| Resource CD | Yes |
| Antenna | Yes |
| Bluetooth version | 5.3 |
| Interface | WLAN / Bluetooth |
| Operating modes | Infrastructure mode |
| Transmitting power (FCC) | 5 GHz: 20, 2.4 GHz: 20, 6 GHz: 12 |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11b |
| Wi-Fi standards | 802.11a |
| Width | 78.5 mm |
| Wi-Fi | Yes |
| Sustainability compliance | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Antenna design | External |
| Wi-Fi standards | 802.11g |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| Mounting brackets included | Yes |
