Description

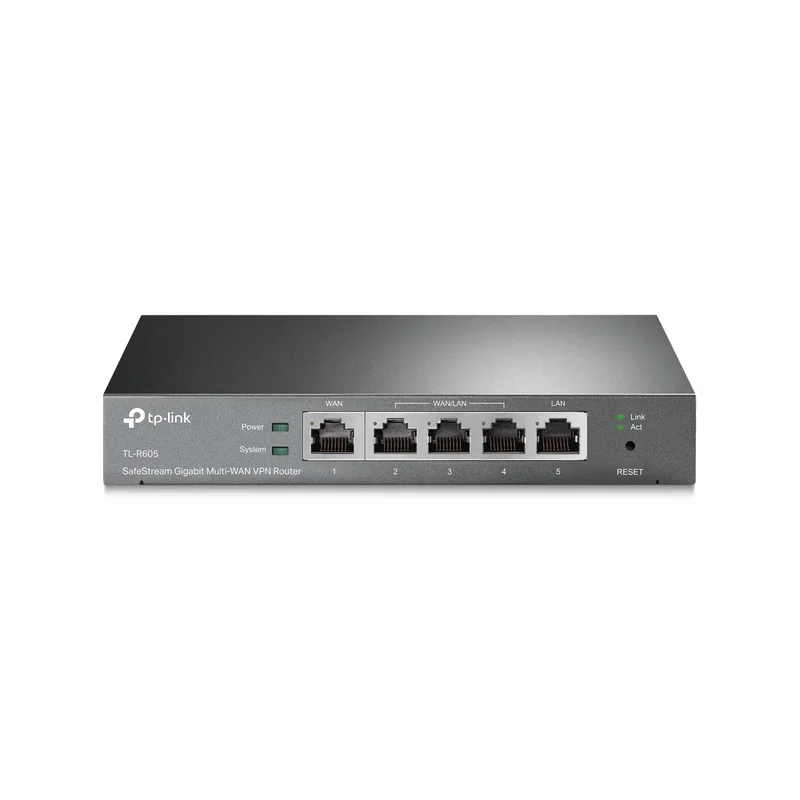

TP-Link Omada Gigabit VPN Router
Technical specifications
| NAT functionality | One-to-One NAT5 Multi-Net NAT Virtual Server Port Triggering5 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
|---|---|
| Certification | CE, FCC, RoHS |
| SFP WAN | No |
| Firewall | Yes |
| Static route | Yes |
| DoS attack prevention | Yes |
| VLAN support | Yes |
| 3G/4G USB modem compatibility | Yes |
| ICMP attack prevention | Yes |
| VPN tunnels quantity | 20 |
| DSL WAN | No |
| DMZ support | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| ARP attack prevention | Yes |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Harmonized System (HS) code | 85176990 |
| Policy-based routing | Yes |
| SIM card slot | No |
| System event log | Yes |
| URL filtering | Yes |
| Access Control List (ACL) | Yes |
| Windows operating systems supported | Windows 10 |
| Windows operating systems supported | Windows 98SE |
| Windows operating systems supported | Windows 8 |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10 |
| Operating temperature (T-T) | 0 – 40 °C |
| Ethernet interface type | Gigabit Ethernet |
| DC-in jack | Yes |
| Windows operating systems supported | Windows 8.1 |
| Windows operating systems supported | Windows Vista |
| Windows operating systems supported | Windows XP |
| Cables included | LAN (RJ-45) |
| Ethernet WAN | Yes |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.3u |
| LED indicators | Power |
| AC adapter included | Yes |
| Internal memory | 256 MB |
| Security algorithms | SIPS |
| LED indicators | Status |
| Operating relative humidity (H-H) | 10 – 90% |
| Output current | 1 A |
| LED indicators | LAN |
| Cabling technology | 10/100/1000Base-T(X) |
| Power source type | DC |
| Linux operating systems supported | Yes |
| Height | 25 mm |
| Depth | 101 mm |
| Flash memory | 128 MB |
| Product colour | Black |
| Quick installation guide | Yes |
| Input current | 1 A |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Width | 158 mm |
| Reset button | Yes |
| Storage relative humidity (H-H) | 5 – 90% |
| LED indicators | WAN |
| Network address translation (NAT) | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Ethernet LAN data rates | 1000 Mbit/s |
| Output voltage | 12 V |
| Ethernet LAN data rates | 100 |
| Web-based management | Yes |
| Security algorithms | FTPES |
| Windows operating systems supported | Windows 7 |
| Mac operating systems supported | MacOS |
