Description

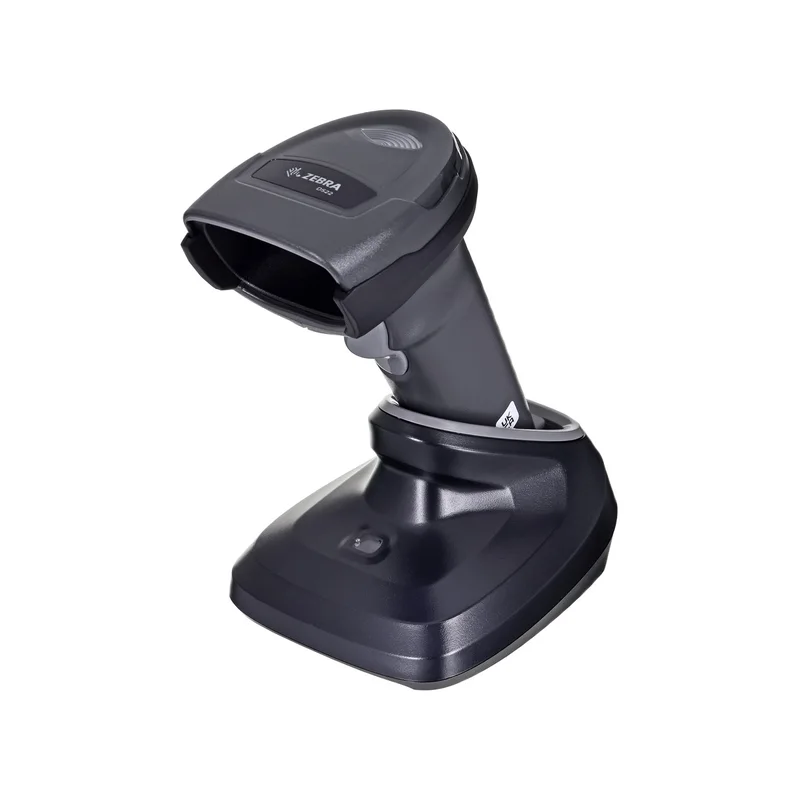

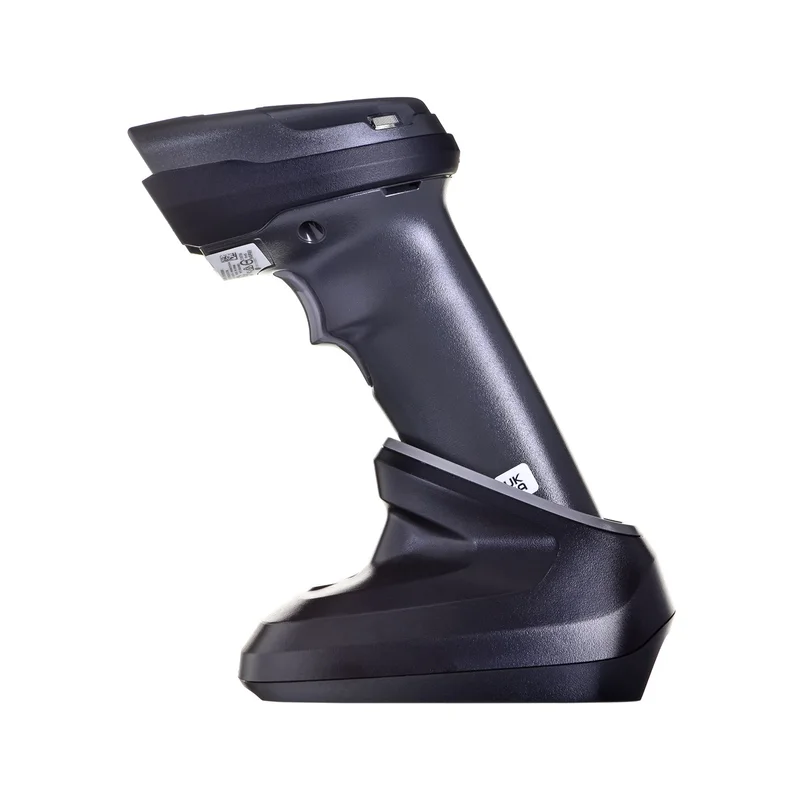

Zebra DS2278 Handheld bar code reader 1D/2D LED Black
Technical specifications
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950- 1-07 |
|---|---|
| Weight | 214 g |
| Tilt reading angle | -65 – 65° |
| Product colour | Black |
| Sensor type | LED |
| Storage temperature (T-T) | -40 – 70 °C |
| Depth | 90 mm |
| Height | 175 mm |
| Scanner type | 1D/2D |
| Battery capacity | 2400 mAh |
| 2D (matrix & stacked) barcodes supported | Data Matrix |
| 2D (matrix & stacked) barcodes supported | PDF417 |
| Linear (1D) barcodes supported | Code 39 |
| 2D (matrix & stacked) barcodes supported | TLC-39 |
| 2D (matrix & stacked) barcodes supported | Composite Codes |
| Charging base | Yes |
| 2D (matrix & stacked) barcodes supported | MaxiCode |
| Linear (1D) barcodes supported | Code 93 |
| Linear (1D) barcodes supported | U.P.C. |
| Linear (1D) barcodes supported | Code 11 |
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Han Xin |
| Linear (1D) barcodes supported | EAN-13 |
| Linear (1D) barcodes supported | Interleaved 2 of 5 |
| Number of batteries supported | 1 |
| Operating temperature (T-T) | 0 – 50 °C |
| Bluetooth version | 4.0 |
| 2D (matrix & stacked) barcodes supported | Aztec Code |
| Pitch reading angle | -65 – 65° |
| Working distance | 36.8 cm |
| Input voltage | 4.5 – 5.5 V |
| 2D (matrix & stacked) barcodes supported | QR Code |
| Standard interfaces | Bluetooth, USB |
| Bluetooth Low Energy (BLE) | Yes |
| Operating relative humidity (H-H) | 5 – 95% |
| International Protection (IP) code | IP42 |
| Power source type | DC |
| Power source type | Battery |
| 2D (matrix & stacked) barcodes supported | Micro QR Code |
| Linear (1D) barcodes supported | Code 128 |
| Linear (1D) barcodes supported | Plessey |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Battery technology | Lithium-Ion (Li-Ion) |
| Built-in display | No |
| Battery life | 84 h |
| Width | 66 mm |
| Linear (1D) barcodes supported | Codabar |
| Motion tolerance (cm/s) | 13 |
| Wavelength | 645 nm |
| LED indicators | Yes |
| Connectivity technology | Wired & Wireless |
| Sustainability certificates | RoHS |
