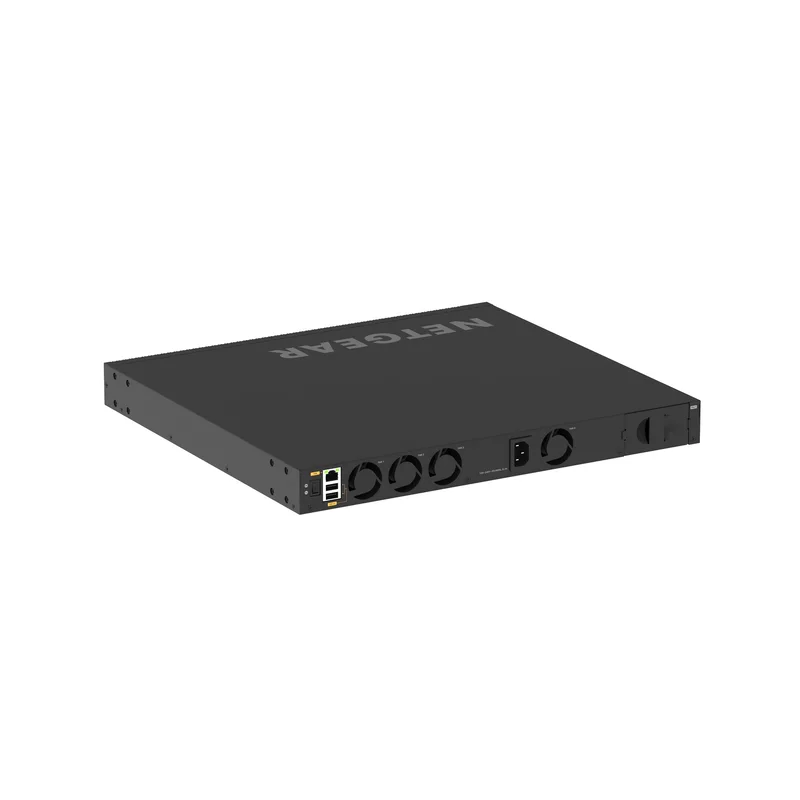

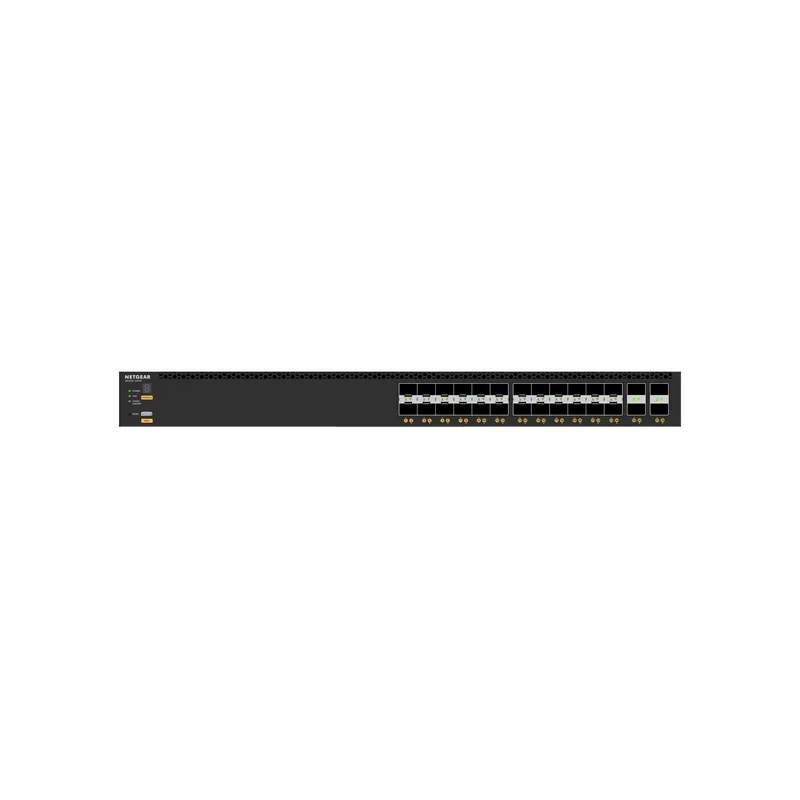

NETGEAR XSM4328FV Managed L3 1U Black
Technical specifications
| sFlow | Yes |
|---|---|
| Static port security | Yes |
| Static route | Yes |
| Latency (1 Gbps) | 1.06 µs |
| Routing protocols | OSPFv2 |
| Management protocols | SNMP V1, V2, V3 |
| Broadcast storm control | Yes |
| Multicast Listener Discovery (MLD) snooping | Y |
| Routing protocols | RIP |
| IGMP proxy | Yes |
| Spanning tree protocol | Yes |
| Jumbo frames | 12000 |
| DoS attack prevention | Yes |
| Authentication type | RADIUS, TACACS+ |
| Included power plug types | EU |
| Included power plug types | UK |
| Included power plug types | NA |
| Routing protocols | OSPFv3 |
| Authentication | Guest VLAN, MAC-based authentication |
| Queue scheduling algorithms | Strict Priority Queue (SPQ) |
| Routing protocols | OSPF |
| Access Control List (ACL) egress | 1023 |
| Routing protocols | RIP-1 |
| Store-and-forward | Yes |
| ARP inspection | Yes |
| Latency (10 Gbps) | 0.63 µs |
| Link aggregation | Yes |
| Access Control List (ACL) ingress | 511 |
| Rate limiting | Yes |
| Root protection | Yes |
| BPDU filtering/protection | Yes |
| Stackable | Yes |
| Routing protocols | RIP-2 |
| Virtual LAN features | Voice VLAN |
| Console port | RJ-45 |
| Virtual LAN features | MAC address-based VLAN |
| Policy-based routing | Yes |
| Rack mount kit | Yes |
| Queue scheduling algorithms | Weighted random early detection (WRED) |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Virtual LAN features | Private VLAN |
| Loop protection | Yes |
| IPv4 routes | 512 |
| Compliance certificates | Federal Communications Commission (FCC) |
| Sustainability compliance | Yes |
| Compliance certificates | BSMI |
| Compliance certificates | CCC |
| Compliance certificates | Low Voltage Directive (LVD) |
| Compliance certificates | CE |
| Airflow direction | Front-to-back airflow |
| SFP28 ports quantity | 4 |
| IPv6 routes | 256 |
| 6to4 tunnel | Yes |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3 |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1D |
| Networking standards | IEEE 802.1x |
| Networking standards | IEEE 802.3bz |
| Networking standards | IEEE 802.1w |
| Operating temperature (T-T) | 0 – 50 °C |
| Networking standards | IEEE 802.3u |
| Networking standards | IEEE 802.1Qav |
| Basic switching RJ-45 Ethernet ports type | No |
| Processor frequency | 1800 MHz |
| Networking standards | IEEE 802.3ad |
| Networking standards | IEEE 802.1s |
| Processor model | ARM Cortex-A57 |
| Storage relative humidity (H-H) | 0 – 95% |
| Depth | 400 mm |
| Multicast support | Yes |
| Form factor | 1U |
| DHCP features | DHCP relay |
| Storage temperature (T-T) | -20 – 70 °C |
| Full duplex | Yes |
| Quality of Service (QoS) support | Yes |
| Flow control support | Yes |
| Product colour | Black |
| Flash memory | 512 MB |
| DHCP features | DHCP server |
| DHCP features | DHCP Option 67 |
| Cables included | USB Type-C |
| Height | 43.2 mm |
| AC input frequency | 50/60 Hz |
| Cables included | AC |
| User guide | Yes |
| LED indicators | Yes |
| MAC address table | 16000 entries |
| Packet buffer memory | 32 MB |
| DHCP features | DHCP Option 150 |
| Switch layer | L3 |
| Power supply | 240 W |
| Heat dissipation | 374.6 BTU/h |
| Switch type | Managed |
| Power consumption (typical) | 119.3 W |
| Operating altitude | 0 – 3000 m |
| Warnings | Avoid contact of the device with liquid. |
| Noise level | 61.8 dB |
| 10G support | Yes |
| Number of VLANs | 4093 |
| Power supply included | Yes |
| Power over Ethernet (PoE) | No |
| Width | 440 mm |
| Memory type | DDR4-SDRAM |
| VLAN support | Yes |
| Warnings | Follow the safety guidelines for electrical current. |
| AC input voltage | 100 – 240 V |
| Operating relative humidity (H-H) | 0 – 90% |
| Power source | AC |
| Power connector | AC-in jack |
| Switching capacity | 680 Gbit/s |
| Web-based management | Yes |
| MAC address filtering | Yes |
| Networking standards | IEEE 802.3ak |
| Internal memory | 2048 MB |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
| IGMP snooping | Yes |
| Rack mounting | Yes |
| Password protection | Yes |
| DHCP features | DHCP snooping |
| DHCP features | DHCP Option 66 |
| Jumbo frames support | Yes |
| Built-in processor | Yes |
| Weight | 6.25 kg |
| Non-operating altitude | 0 – 3000 m |
| Throughput | 505.92 Mpps |
| Input current | 6.3 A |
| Access Control List (ACL) | Yes |
| SFP+ module slots quantity | 24 |
| Mean time between failures (MTBF) | 778741 h |
| USB 2.0 ports quantity | 2 |
