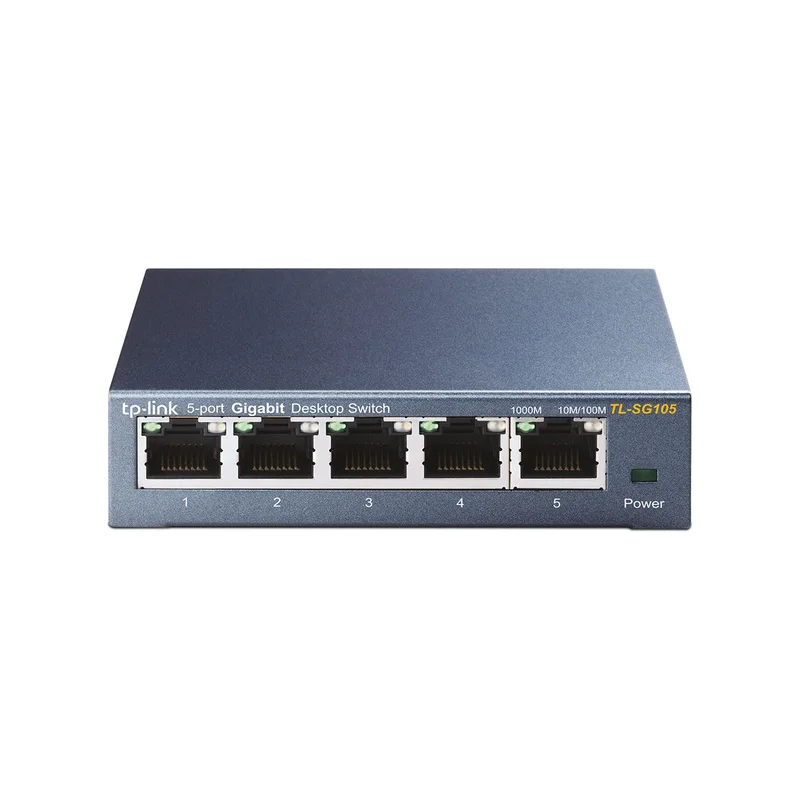

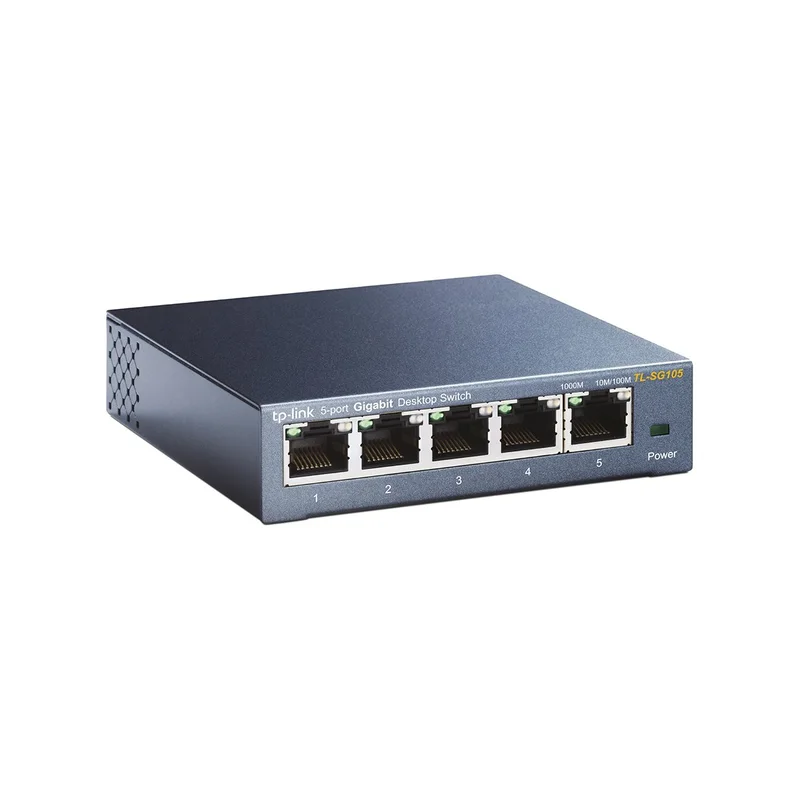

TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch
Technical specifications
| Certification | CE, FCC, RoHS |
|---|---|
| Heat dissipation | 7.83 BTU/h |
| Ethernet LAN | Yes |
| Switch type | Unmanaged |
| Depth | 98 mm |
| LED indicators | Yes |
| Input current | 0.6 A |
| Auto MDI/MDI-X | Yes |
| IGMP snooping | Yes |
| Input voltage | 9 V |
| Power over Ethernet (PoE) | No |
| Width | 100 mm |
| Package weight | 370 g |
| Height | 25 mm |
| Power supply included | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Store-and-forward | Yes |
| Power consumption (max) | 2.3 W |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Forwarding rate | 7.4 Mpps |
| Auto-negotiation | Yes |
| Power connector | DC-in jack |
| MAC address table | 2000 entries |
| Packet buffer memory | 1 MB |
| Jumbo frames support | Yes |
| Maximum data transfer rate | 2 Gbit/s |
| Jumbo frames | 16000 |
| Switching capacity | 10 Gbit/s |
| Switching protocols | CSMA/CD |
| Power source | DC |
| Power LED | Yes |
| Package depth | 128 mm |
| Wi-Fi | No |
| Operating temperature (T-T) | 0 – 40 °C |
| Networking standards | IEEE 802.3ab |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.3i |
| Storage relative humidity (H-H) | 5 – 90% |
| Networking standards | IEEE 802.3x |
| User guide | Yes |
| Full duplex | Yes |
| Product colour | Black |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| Gigabit Ethernet (copper) ports quantity | 5 |
| Networking standards | IEEE 802.3u |
| Connectivity technology | Wired |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Package width | 125 mm |
| Package height | 92 mm |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported data transfer rates | 10/100/1000Mbps |
| 10G support | No |
| Rack mount kit | Yes |
| Flow control support | Yes |
| Package type | Box |
