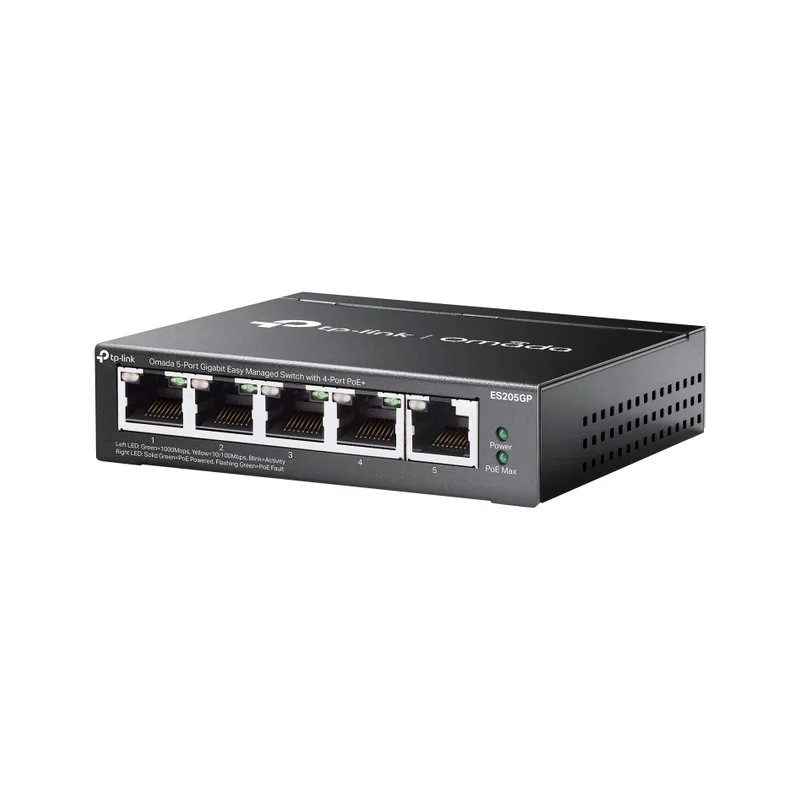

TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+
Technical specifications
| 10G support | No |
|---|---|
| DHCP features | DHCP client |
| Product colour | Black |
| Flow control support | Yes |
| Storage temperature (T-T) | -40 – 70 °C |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| Operating temperature (T-T) | 0 – 40 °C |
| Total Power over Ethernet (PoE) budget | 65 W |
| Power source | AC/DC |
| Height | 25 mm |
| MAC address table | 8000 entries |
| Auto-negotiation | Yes |
| IGMP snooping | Yes |
| Power over Ethernet (PoE) | Yes |
| Port mirroring | Yes |
| User guide | Yes |
| Auto MDI/MDI-X | Yes |
| Packet buffer memory | 4 MB |
| Depth | 98 mm |
| Width | 100 mm |
| Wall mountable | Yes |
| VLAN support | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Power over Ethernet (PoE) ports quantity | 4 |
| Package type | Box |
| Power supply included | Yes |
| LED indicators | Yes |
| Switch type | Managed |
| Loop protection | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Jumbo frames support | Yes |
| Networking standards | IEEE 802.1ab |
| Power over Ethernet (PoE) power per port | 30 W |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.1p |
| Networking standards | IEEE 802.1Q |
| Networking standards | IEEE 802.3x |
| Switching capacity | 10 Gbit/s |
| Storage relative humidity (H-H) | 5 – 90% |
| Networking standards | IEEE 802.3at |
| Store-and-forward | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Link aggregation | Yes |
| DC input voltage | 53.5 V |
| Jumbo frames | 15 |
| Forwarding rate | 7.4 Mpps |
| Fanless | Yes |
| Cloud-managed | Yes |
| Virtual LAN features | Tagged VLAN |
| Virtual LAN features | Port-based VLAN |
| Transmission distance (max) | 0.25 km |
| Virtual LAN features | MTU VLAN |
| Warnings | The product is not suitable for disposal in the regular waste bin. Take your used electronic equipment to a recycling centre in accordance with local regulations. |
| Warnings | Ensure the unit is adequately ventilated during operation. |
| Warnings | Do not open the case or try to repair it yourself. |
| Compliance certificates | RoHS |
| Compliance certificates | CE |
| Compliance certificates | Federal Communications Commission (FCC) |
