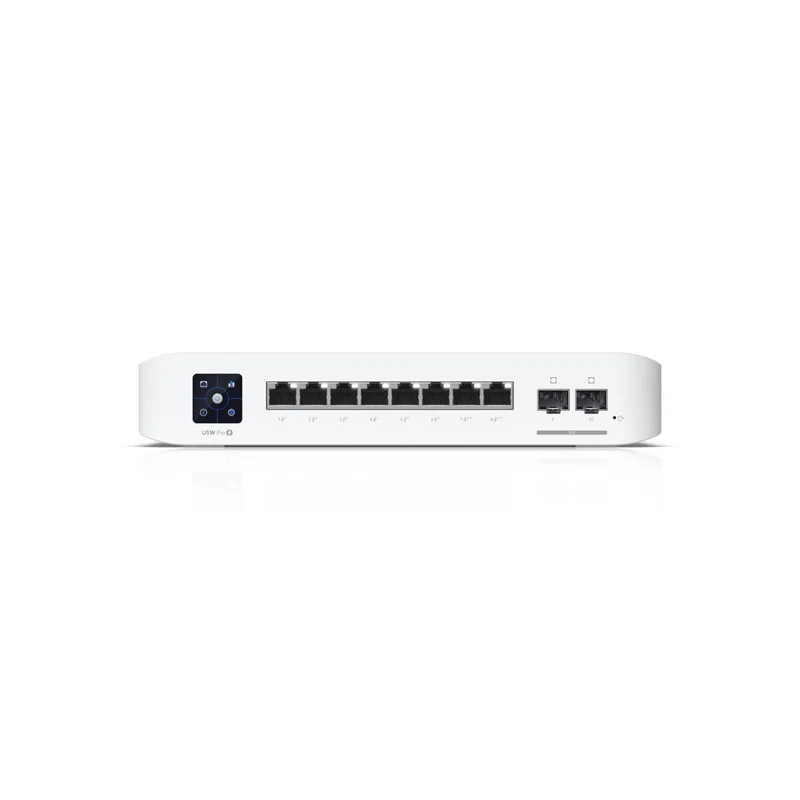

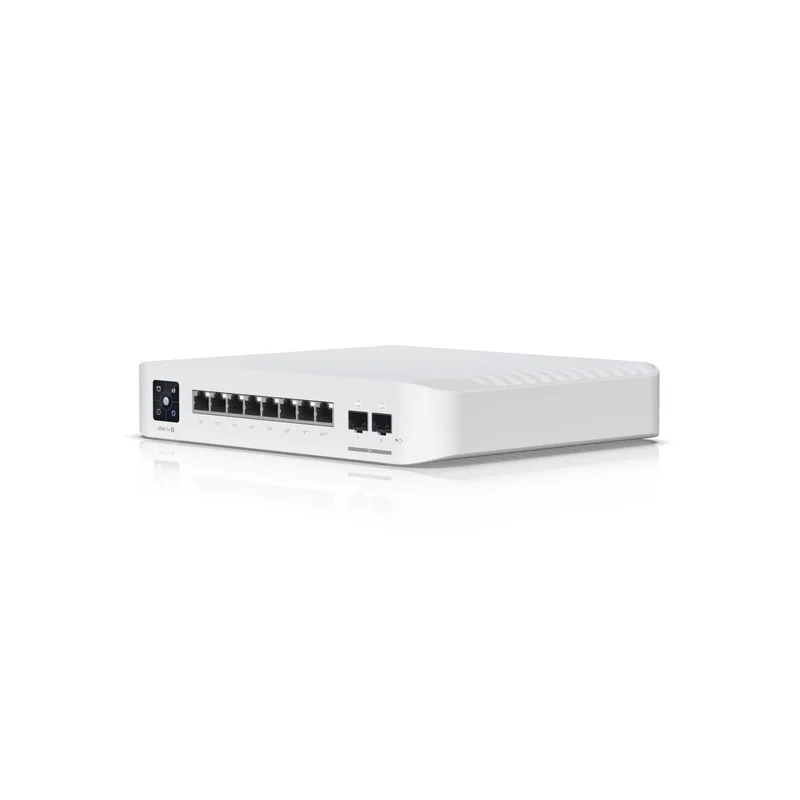

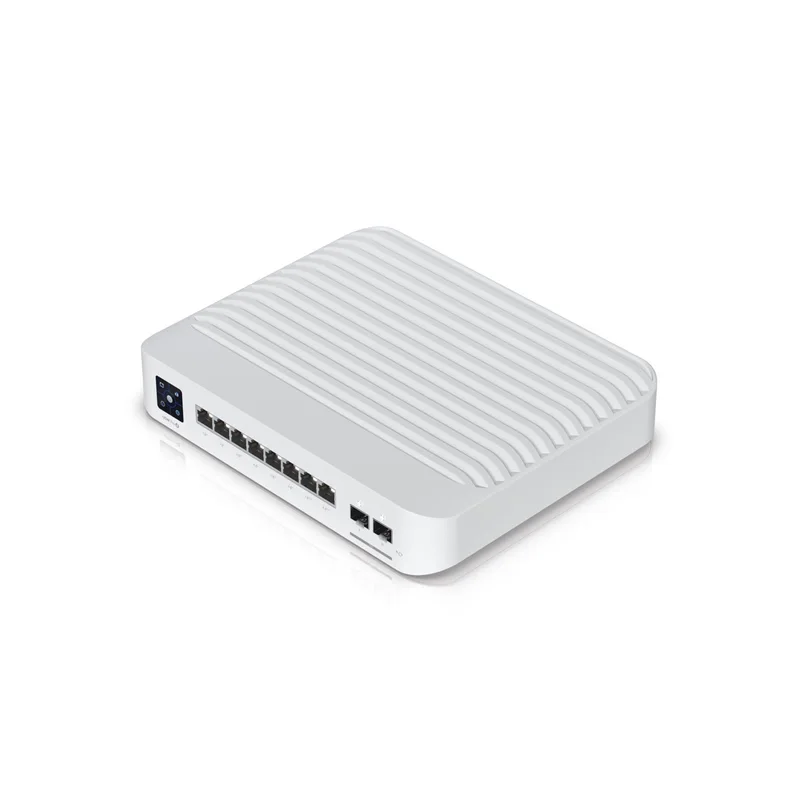

Ubiquiti UniFi USW-PRO-8-POE network switch Managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U White
Technical specifications
| Certification | CE, FCC, IC |
|---|---|
| Operating temperature (T-T) | -5 – 45 °C |
| Power over Ethernet (PoE) | Yes |
| Manual | Yes |
| Operating relative humidity (H-H) | 10 – 90% |
| Power source | AC/DC |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Housing material | Metal |
| Networking standards | IEEE 802.3at |
| Housing material | Plastic |
| Switching capacity | 56 Gbit/s |
| Weight | 2.1 kg |
| Power supply included | Yes |
| Networking standards | IEEE 802.3af |
| 10G support | Yes |
| Power over Ethernet (PoE) power per port | 60 W |
| VLAN support | Yes |
| Width | 200 mm |
| Copper ethernet cabling technology | 10BASE-T |
| Copper ethernet cabling technology | 100BASE-FX |
| Copper ethernet cabling technology | 100BASE-TX |
| Auto MDI/MDI-X | Yes |
| Total Power over Ethernet (PoE) budget | 120 W |
| Input current | 2 A |
| LED indicators | System |
| LED indicators | Activity |
| LED indicators | PoE |
| DHCP features | DHCP server |
| Form factor | 1U |
| AC input voltage | 100 – 240 V |
| LED indicators | Link |
| Height | 44 mm |
| Full duplex | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Depth | 248 mm |
| Copper ethernet cabling technology | 10BASE-TX |
| LED indicators | Speed |
| Jumbo frames support | Yes |
| Product colour | White |
| Number of power supply units | 1 |
| Port mirroring | Yes |
| Switch layer | L2/L3 |
| Spanning tree protocol | Yes |
| Auto-sensing | Yes |
| Throughput | 28 Gbit/s |
| Compliance certificates | Federal Communications Commission (FCC) |
| Power over Ethernet plus (PoE+) ports quantity | 6 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Static route | Yes |
| Authentication type | IEEE 802.1x, RADIUS |
| Compliance certificates | CE |
| Flow control support | Yes |
| Authentication | Port-based authentication |
| Half duplex | Yes |
| Link aggregation | Yes |
| SFP+ module slots quantity | 2 |
| Switch type | Managed |
| Warnings | Follow the safety guidelines for electrical current. |
| Warnings | Avoid contact of the device with liquid. |
| Sustainability compliance | Yes |
| Warnings | Make sure the ventilation of the equipment is not blocked. |
